Royal Blue Color Corrugated EPS (Foam Core) Sandwich Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$3.4 - $20.5 / Meter

Min. Order (Meter)	Unit Price
1000.0	US $ 3.4/ Meter
10000.0	US $ 20.5/ Meter

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Aug 05, 2014 To Dec 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Model NO.:914mm-1150mm

The Interlayer Thickness:50mm-200mm

Type:950V/1150V/960V

Delivery Time:20-30days

Lenght:Less Than 11.8m

Color:Blue

Export Markets:Global

Additional Info.

Trademark:Shengxin JKS

Packing:Seaworthy, as Customer?s Requirement

Standard:SGS BV

Origin:Xiamen, China

Production Capacity:10000meter/Month

Product Description

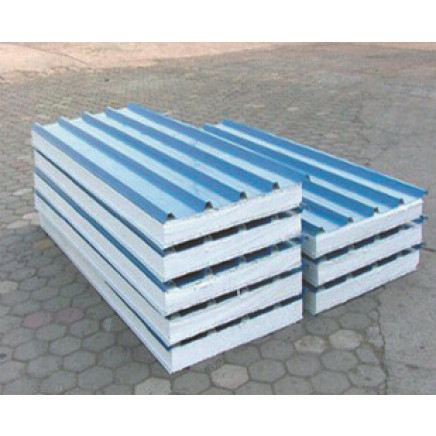

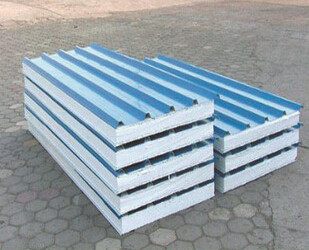

Royal Blue Color Corrugated EPS ( Foam Core) Sandwich Panel

1, the quality of light weight per square meter of less than 24kg, can reduce the cost of the structure.
2, quick installation of light weight, splicing, installation and can be arbitrarily cutting characteristics, determine its installation is simple, can improve efficiency, save the time.
3, fire, color steel composite plate core surface materials and insulation materials for the non-fuel or burning material, can meet the requirements for fire protection.
4, refractory, with a special coating color steel plate and the new 10-15 years, after every ten years spraying anti-corrosion coating, sheet life over 35 years
5, beautiful, pressure plate clear lines of dozens of kinds of colors, can be matched with any style of the building takes
6, insulation insulation material commonly used are: Rock wool glass fiber, cotton, polystyrene, polyurethane, low thermal conductivity, good thermal insulation effect.
7, environmental noise prevention, composite board insulation strength up to 40-50 dB, is very effective sound insulation materials.
8, strong plasticity sheet steel can be cut, enough to meet the special design needs.
9, high strength with high strength steel plate as a substrate, the tensile strength of 5600 ( kg / cm2 ), plus on the most advanced design and roll forming, and has excellent structural properties

Applications:
1) sandwich panel used in large industrial plants, warehouses, supermarkets, hospitals, stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place.
2) sandwich plate appearance, bright color, good overall effect, it sets the bearing, thermal insulation, fireproof, waterproof in one, and no two decoration, is a widely used, especially in the construction site of the temporary facilities such as office, warehouse, walls, but also embodies the modern construction site civilization construction,
3) in the fast installation and put into use, the assembly and disassembly, material turnover multiplexing index, have obvious advantages, greatly reducing the construction site temporary facilities, will be indispensable new lightweight construction materials

Type	color steel foam sandwich panel (overlap joint)
Dimensions	Total thickness	50-200mm
	Width	950mm 960mm 1150mm
	Length	Less than 11.8m
External face	Material	ppgi
	Thickness	0.18-0.6mm
	Thickness of the zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	20 micron
	Color	According to the RAL
	Pattern	Nearly plain
Insulation	Optional foam Material	EPS PU Rockwool Paper honeycomb
	Thickness	50-200mm
	Density	EPS 12~25KG/M3; PU 36-45KG/M3; ROCKWOOL>110KG/M3;
	Thermal conductivity	0.045w/m2k 0.021W/M2K 0.0034W/M2K0
Internal face	Material	ppgi
	thickness	0.18-0.6mm
	Thickness of zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	17/7micron
	Pattern	Plain
Shipping terms
Package	Craft paper or wooded pallet
Delivery time	Within 15-20days after deposit
application	Purification workshop condole top , Industrial workshop and warehouse
