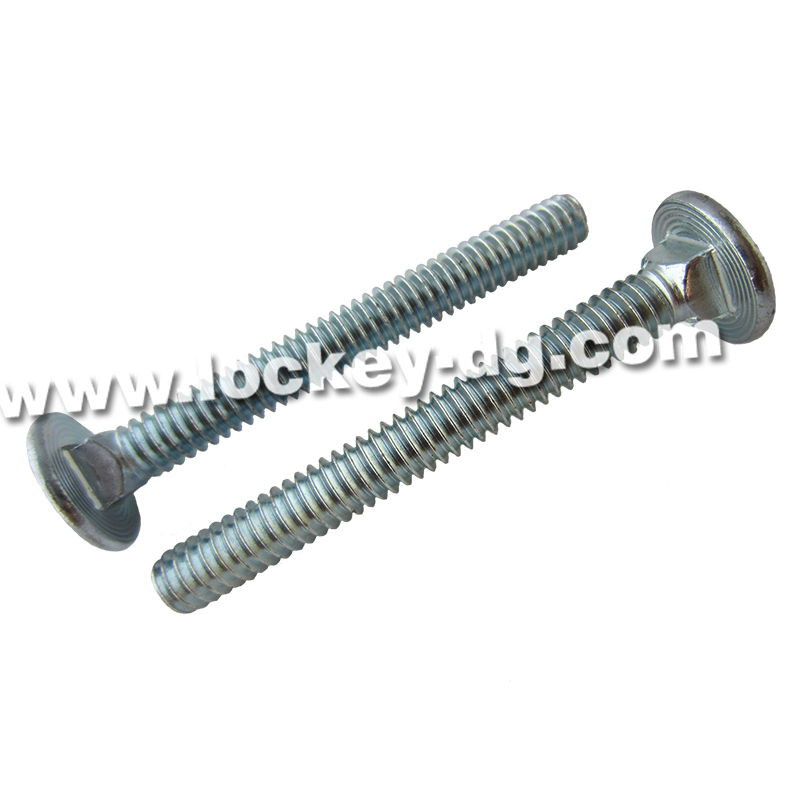

Round Head Square Neck Carriage Bolts DIN603 Amse B18.5

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.07 - $0.09 / Piece

Min. Order (Pieces)	Unit Price
10000.0	US $ 0.09/ Piece
100000.0	US $ 0.07/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jan 27, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LKNH

Material:Stainless Steel, Alloy Steel, Steel

Type:Round Head

Connection:Common Bolt

Head Style:Round

Standard:DIN, ANSI, GB, JIS

Application:Machinery

Finish:Zinc, Passivation

Sample:Free

Market:Global

Additional Info.

Trademark:LK

Packing:Bulk Packing, Small Box Packing

Standard:DIN, ANSI, ISO and Non-standard

Origin:China

HS Code:7318

Production Capacity:500 Ton/Month

Product Description

1> Decription: Carriage Bolts
2> Material: Steel, Stainless steel 304, Stainless steel 316
3> Surface: Plating, Passivation
4> Size: M5 upto M24; #10 upto 3/4"
5> Length: Upto 200mm, 8 Inch
6> Mechanical Properties: Class6.8, 8.8 Grade 2, 5
7> Packing: Bulk packing then into pallet.

The main products for bolts include Carriage bolts, Hex. Bolt, Hex. Socket cap screw, Allen Screw, Lag bolt(Coach screw), Hex. Flange bolt, Thread Rod, Square Bolt, Hex. Bolt with nuts and some special bolt per the drawing from the cilent.

Please do not hesitate to contact us If you are interesting our products.

Technical Delivery Conditions
Material		Steel	Stainless steel
General requirements		As specified in ISO 8992
Thread	Tolerance	8g
	Standard	DIN ISO965-1; DIN ISO965-2
Mechanical properties	Property class	4.6, 4.8, 8.8	A2-70, A4-70
	Standard	DIN EN ISO 898 Part 1	DIN EN ISO 3506-1
Limit deviations geometrical tolerance	Product grade	C
	Standard	DIN EN ISO 4759-1
Surface finish		DIN EN ISO 26157-1 shall apply with regard to permissible surface discontinuities
		DIN EN ISO 16048 shall apply with regard to passivation
		DIN EN ISO 4042 shall apply with regard to electropiating
		DIN EN ISO 10684 shall apply with regard to hot dip galvanize
		DIN EN ISO 10683 shall apply with regard to Non-electrolytically applied zinc flake coating
		If different electroplating or other surface protection is desired, this shall be agreed upon at the time of ordering
Acceptance inspection		DIN EN ISO 3269 shall apply with regard to acceptance inspection
