RoHS Flexible PA PP PE Plastic Split Wire Loom

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

RoHS Flexible PA PP PE Plastic Split Wire Loom

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Meter)	Unit Price
500.0	US $ 0.05-1.0/ Meter

Price:$0.05 - $1.0 / Meter

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Apr 14, 2015 To Jul 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CFC

Application:Insulators, Electrical Winding Insulation, Winding Wire Coating Insulation, Electrical Base, Shell, Motor, Insulating Varnish, Cable, Wires, Automatic Equiqment,etc

Type:Insulation Sleeve

Chemistry:Organic Insulation

Material:Plastic

Thermal Rating:E 120

Maximum Voltage:<10KV

Classification:Organic Insulating Material

Certification:UL, ISO9001, SGS, RoHS

Color:Black, Colored

Brand:Qx

Style:Plastic Split Wire Loom

Available Size:4.5mm ID to 48mm ID

Standard Color:Black

Free Sample:Yes

Cittomg Servoce:Yes

Available Colors:Black, White, Blue, Red,etc

Shipping Way:by Sea,Air, Express

Package:200m/100m/50m/25m Per Roll

Export Markets:Global

Additional Info.

Trademark:QX

Packing:200 M/Roll, 100m/Roll, 50m/Roll, 25m/Roll

Standard:4.5mm to 56mm

Origin:Made in China

HS Code:391729000

Production Capacity:3, 000, 000 M/Month

Product Description

Introduction:

RoHS Flexible PA PP PE Plastic Split Wire Loom offers you wide range technical properties for your cable and wire management applications against not only mechnical damage but also the influnces of UV radiation,weathering and chemicals.

The flexible body allows for the cables in the corner and elbow.We also supply the split style for easy installation and removal .

Product Feature:

a. Highly abrasion resistance

b. Resist acids

c. Solvents and fuels resistant

d. Resistant to UL radiation

e. Insulative and protective, Against mechanical damage

f. Flexibility, Light weight

g. Easy to install and remove
h. Split style & Not split style

Technical Data:

1. Material: PE/PP/PA
2. Operating range: PE: -40ºC to +90ºC
PA: -40ºC to +130ºC
PP: -30ºC to +110ºC
3. Standard color: Black and Grey
4. Certification: ROHS

Application:

a. Protecting wires and cables harness in automotive, equipment, railway etc.

b. Used for protecting the hydraulic hoses.

c. Used in the fields of electrics communication, automobile for connection insulation and rust-proof of metal product.

RoHS Flexible PA PP PE Plastic Split Wire Loom

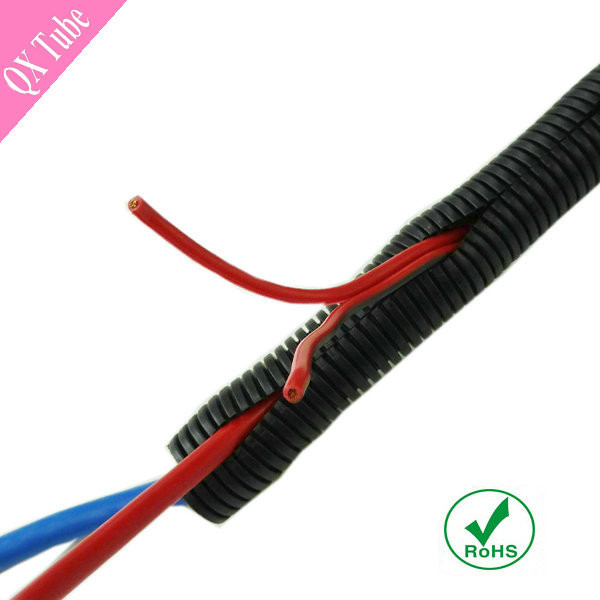

Detail Pictures:

RoHS Flexible PA PP PE Plastic Split Wire Loom

Additional Information
