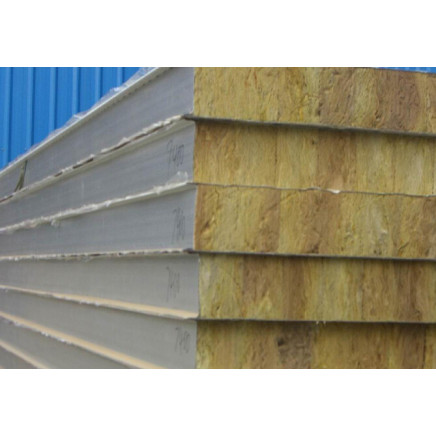

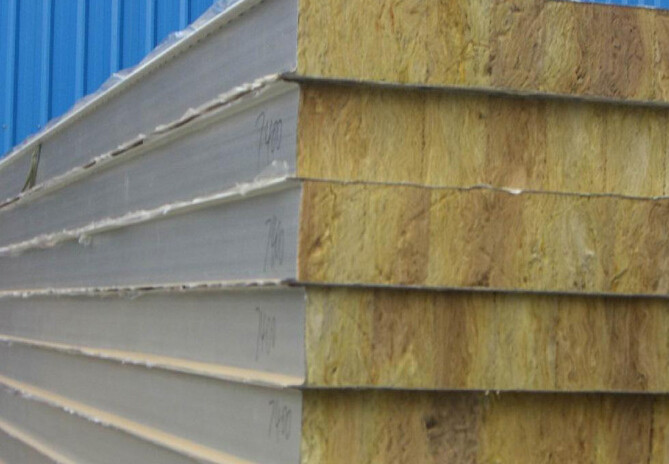

Rockwool Sandwich Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$7.0 - $45.8 / Meter

Min. Order (Meter)	Unit Price
1000.0	US $ 7.0-45.8/ Meter

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Nov 10, 2014 To Apr 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Model NO.:Width 950 1000 1100 1150

Material:Sandwich Panel

Usage:Warehouse, Villa, Dormitories, Temporary Offices, Workshop

Certification:ISO, BV

Customized:Customized

Lenght:<=11.8m

Thickness:50mm-150mm

Export Markets:Global

Additional Info.

Trademark:SXGG

Packing:PVC Film

Standard:SGS, CE

Origin:China

Production Capacity:100, 000 Sqm/Month

Product Description

1. Easy Install rockwool sandwich panel for wall
2. Width: 950mm-1150mm
3. Thickness: 50mm-175mm
4. Length: Container length
Advantages and Characteristics of Rockwool Sandwich Panel
Wall panel
1. Outstanding climate-resistance and temperature-adaptability
The surfaces of the panel are painted by adhesive paint, which is very well coated. And this makes the surfaces very wear-resistant, acid-resistant, alkali-resistant and salt-fog-resistant. The biggest advantage of them is its good climate-resistance. The paint membrane's life can reach 15 to 20 years generally, and it will be used chronically without fading and stripping. The board performs excellently.

2. Fireproof: The core is shaped by pressure at a high temperature. It is non-poisonous and fireproof, confirming to the fire-resistant demand of the building rule completely.

3. Light in weight and easy to process: The panel is light in weight and easy to process. Its core board is of low density, high intensity and high toughness. Because of the board's light in weight, it will reduce the damage in earthquakes and be transported easily. Besides, the board is very easy to process, so the cost of the project will be reduced.

4. Sound insulation and heat-insulation: The board is made up of several layers. The middle core adopts a special craft structure, so the product is good in sound insulation and heat-insulation.

5. Various colors: The board is rich in color style, which provides many selections for customers. It can also be adjusted for the needs of the customers, and satisfy the varied designs of the architects.

Cleanroom Rockwool Sandwich Panel
Type	950
Dimensions	Total thickness	50-150mm
	Width	950mm
	Length	Less than 11.8m
External face	Material	PPGI
	Thickness	0.4-0.8mm
	Thickness of the zinc	60-80g/mł
	Corrosion protection	Galvanized
	Coating	Prepainted
	Thickness of coating	20 micron
	Color	Gray white / according to the RAL / as customer's requirements
	Pattern	Nearly plain
Insulation	Optional foam Material	EPS PU Rockwool Paper honeycomb
	Thickness	50-150mm
	Density	EPS 8~25KG/M3; PU 38-45KG/M3; ROCKWOOL>110KG/M3;
	Thermal conductivity	0.045w/m2k 0.021w/m2k 0.0034w/m2k
Internal face	Material	PPGI
	thickness	0.4-0.8mm
	Thickness of zinc	60-80g/mł
