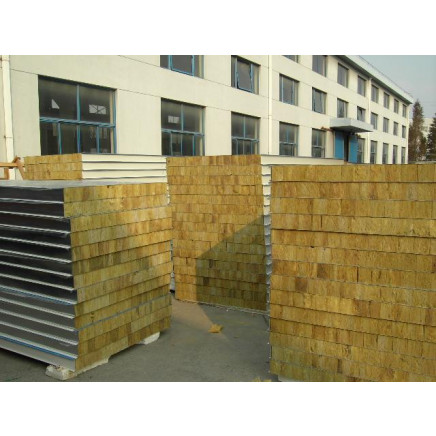

Rock Wool Wall Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Square Meters

Trade Terms:FOB, CFR, EXW, CIF

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Trademark:OEM/Captain

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:rock wool

Material:Sandwich Panel

Usage:Warehouse, Villa, Dormitories, Temporary Offices, Workshop

Certification:ISO, CE

Customized:Customized

Steel Thickness:0.3-1.0mm

Rock Wool Thickness:50mm-120mm

Width:950mm

Length:No Longer Than The Container

Color:White, Blue, Red

Export Markets:Global

Additional Info.

Trademark:OEM/Captain

Packing:Export Container /Pallet /Disassembly with Carton

Standard:SGS, ISO

Origin:China, Shandong

Production Capacity:300000m/Month

Product Description

Specifications
1 Light weight
2 Good insulation against heat and sound
3 Easy to construct and economical
4 Elegant appearance

Rockwool sandwich panel is cold rolled into the required profiles from prepainted galvanized steel sheets or

Prepainted galvalume steel sheets, which is used as roofing panel in all kinds of buildings, such as industrial

And civil buildings, warehouse, particular building, inner and outer decorative wall. And there are direct

Overlapped model, hidden screw model, self-locking model, steel tile sheet, as per your requirement.

It adopts fibrous rock wool as the core material, and color steel plate as its surface layers. The rock wool and

Two color steel plates are pressed together through the automation of a forming machine and then glued

Together by a high strength adhesive. Since the color steel plate and the rock wool are noncombustible, the

Rock wool sandwich panel has an excellent fireproof property. Our rock wool sandwich panels include roof

Panels and wall panels. Since they are fireproof, heat insulated and sound insulated, they are widely used to

Construct roofs and walls of industrial buildings and civil buildings, warehouse, particular building, inner and

Outer decorative wall. They are especially suitable for use in buildings that require a high degree of being

Fireproof.

The parameter of rockwool sandwich panel

Effective width
Wall panel: 950mm 1150mm 1200mm Roof panel: 960mm 980mm
Length
According to your request
Materials
Rockwool, Color steel sheet
Structure
Upper and lower layer: Color steel sheet
Middle: Rockwool
Thickness
Color steel sheet: 0.3-1.2mm
Rock wool: 50mm 75mm 100mm 150mm
Density
90--150kg/m3
Conventional color
According to customer's request
Thermal load contraction temperature
643 degree
Hygroscopic property
3.90%
5Organic matter content
2.90%
Organic matter content
? 4.0
Thermal conductivity
0.044W/m. K
Preme practical temperature
400-600
Character
Light in weight, heat insulation, water resistant, green and environmental
Use
Drying room, bake painting house, paint coating production line and shipping industry; Ceiling and partition of cleaning
