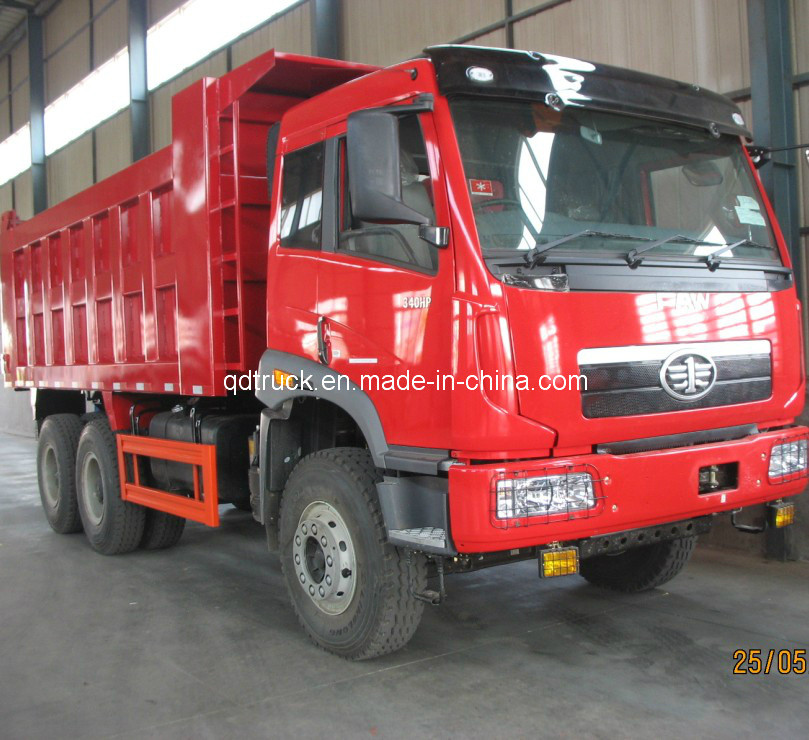

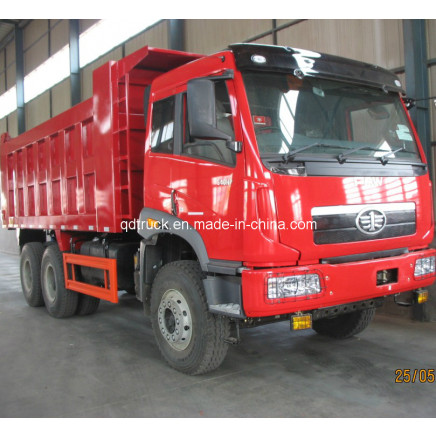

RHD 30 Ton 10 WHEEL FAW Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 35000.0-49900.0/ Piece

Price:$35000.0 - $49900.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Feb 28, 2015 To May 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA3256

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ECE, ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Type:Tipper

Brand:Faw

Driving:6X4

Steering:LHD, Rhd

Capacity:20-30tons

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:ISO

Origin:China

HS Code:87042300

Production Capacity:300 PCS/ Month

Product Description

RHD 30 Ton 10 WHEEL FAW Dump Truck

Model No: CA3256P2K2T1EA81
Overall dimensions Length: 8393mm
Width: 2500mm
Height: 3280, 3530mm
Axle base (full load): 3825+1350,
Front overhang(loaded): 1493/ 1493
Rear overhang(loaded): 725 /890.

Wheel base Front wheel: 1939, 2020
Rear wheel: 1840/1840

Ground clearance(loaded) Under front axle: 285
Under rear axle: 290
Passing angle(loaded) Approach angle: 25/25
Departure angle: 30/27

Mass
Parameter Curb weight (kg): 12080, 12400
Gross truck weight: 25000
Payload weight(kg): 12725, 12470

ENGINE: WP10.300N, WP10.310NE31, WP10.336NE31, WP10.340E32
TRANSMISSION: CA10T, FULLER 9JS135
REAR AXLE: LB300
TIRE: 12.00R20
Cargo box dimension: 5600/6000X2300X1500
Color: Red

LOADING CAPACITY: 20T/25T/30T/35T/40T

TRUCK SPECS	Overall d imension:		8000x2496x3450mm(26.25x8.19x11.32ft)/ 8545X2496X3170mm(28.04x8.19x10.40ft)/ 8675x2496x3450mm(28.46x8.19x11.32ft)/ 8845x2496x3450mm(29.02x8.19x11.32ft)
	Cabin	Cabin size:	standard cabin(2 seats)/ long cabin(2 seats and 1 bed)/ high cabin(2 seats and 2 bed)
		Seats and sleeper Bed:	2 seats/ 2 seats and 1 bed/ 2 seats and 2 bed
		Air conditioner:	standard
	Engine	Horsepower(hp):	290 300 336 375 420
		Tech:	steyr tech
		Engine Type:	6-cylinder in line, 4-stroke, water-cooled,turbocharged, intercooled
		Emission Standard:	EUR 2
		Fuel Type:	Diesel
		Engine Capacity(ml):	9726
	Gear Box/Transmission		10 speeds and 1 reverse speed
	Clutch		?430
	Axles	Front Axles:	9T
	Axles	Driving Axles:	2x16T
	Tyre:		12.00-20,10 Radial tires with one spare tire/ 12.00R20,10 Radial tires with one spare tire
	Max speed:		75/80/85km/h
	Tare weight(MT):		12MT
BODY SPECS	Body Dimensions (LengthXWidthXHeight):		5400X2300X1500mm(17.72x7.55x4.92ft)/ 5500x2300x1500mm(18.04x7.55x4.92ft)/ 5600x2300x1500mm(18.37x7.55x4.92ft)/ 5800x2300x1500mm(19.03x7.55x4.92ft)/ 6000X2300X1500mm(19.70x7.55x4.92ft)/ 6200X2300X1500mm(20.34x7.55x4.92ft)
	Material:		Q235
	Body steel (mm):		floor 8mm(0.32in),side 6mm(0.24in)
	Cpacibility(M3):		20CBM 22CBM 25CBM 30CBM
	Lift System:		hydraulic system with power assistance
	Wheel base:		3825+1350mm(12.55x4.43ft)
	Track Width(front/rear):		2041/1830mm(7.91x6ft)
	Overhang(front/rear):		1500/1870mm(7.55x6.14ft)
	Approach/Departure Angle:		19°/23°
