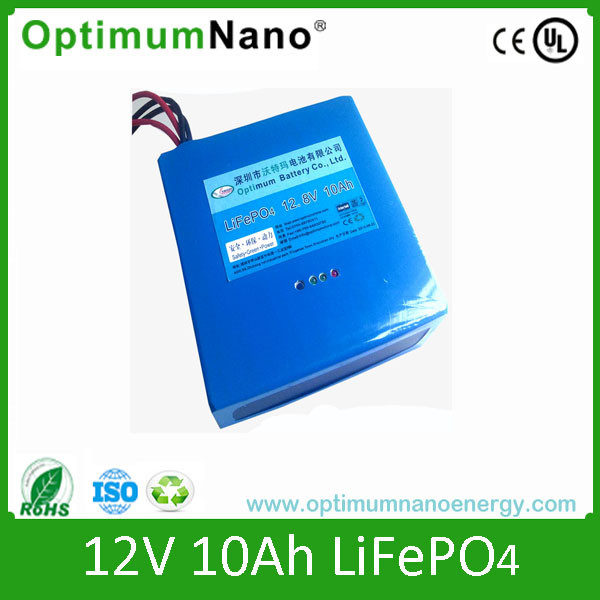

Rechargeable Battery 12V 10ah LiFePO4 Battery for Lawn Lamp

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $100.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 100/ Piece
1000.0	US $ 1/ Piece

Trade Terms: FOB

Payment Terms: T/T, Paypal, Western Union

Price Valid Time:From Jul 31, 2015 To Oct 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-012010

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:Low Discharge Rate

Size:Small

Accessories Type:Battery

Rated Capacity:>1000MAH

Standard Voltage:>12V

Usage:Electric Tool/Lawn Mower/ Electric Drill

Electrolyte:LiFePO4

Components:LiFePO4(Lithium Iron Phosphate)

Capacity:10ah

Rated Voltage:12.8V

Dimention:151*98*98mm

Weight:About 1.5kg

Export Markets:Global

Additional Info.

Trademark:OptimumNano

Packing:1. PVC Film 2. SLA Case 3. Customized

Standard:CE, UL, RoHS, SGS, TS/16949 and ISO9001-2008

Origin:China Mainland(Guangdong)

HS Code:8507600090

Production Capacity:2000pks/Day

Product Description

Rechargeable Battery 12v 10ah lifepo4 battery for Lawn Lamp

Normal performance
1. Cell Model (Single cell): IFR32650
2. Standard Capacity: 10Ah
3. Rated Voltage: 12.8V
4. Max. Charge Voltage: 14.6V
5. Cut-off Voltage: 10V
6. Standard Charge Current: 2A
7. Max charge current: 2C
8. Standard Charging Time: 5h
9. Cycle life(1C/80%): ? 2000
10. Dimensions: 151*98*98mm
11. Total Weight(Approx. ): About 1.5 kg
12. Impedance(Max, at 1000Hz. ): ? 50m?
13. Charge temperature: 0° C~45° C
14. Discharge temperature: -20° C~55° C
15. Certification: CE, UL, ROHS, TLC, PSE, TS16949, ISO9001, BV, SGS

Advantages:
1. Safety: Most safest Li-Ion battery, built-in BMS, none fire, none explosive
2. Environment friendly, Clean and Green energy, no toxic material contained
3. Low self-discharge: Less than 3% per month
4. Wide range temperature adaptability: -20° C to 65° C
5. Long life cycles: More than 2000 cycles in 1C
6. No memory effect: Always ready for charge and use, with no need to charge after a full discharge.
7. High energy density and high power output
8. Small in size and light in weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-Cd battery, 1/2 weight of lead acid battery

Quality Feature of OPTIMUM Lifepo4 battery pack

1-Principle: Guarantee the cell's performance
The current flows through in Lengthways and then with cross-protection by small fuse

3-Production: Make sure the battery safety
Break Protection, Anti-explosion Protection, PTC Protection

8-Conformity: Make sure the battery stability and long lifetime
Conformity in capacity
Conformity in voltage
Conformity in impedance
Conformity in electricity
Conformity in self-discharging
Conformity in discharge platform
Conformity in CC Charging
Conformity in lifetime

Packaging & Delivery

Packing case: 1. PVC film 2. Epoxy board+ PVC film 3. SLA case 4. Customized
Delivery Detail: 15-25days
Warranty: 2years

Shipping & Payments

Shipping and handling:
Item location: Shenzhen, Guangdong, China (Mainland)
Shipping to: Worldwide
Payments: T/T in advanced

Welcome to OptimumNano Energy Co., Ltd

Lifepo4 Battery Compared with SLA Battery
No.	Item	LiFePO4 Battery	SLA Battery
1	Weight to Power Ratio	120-130Wh/kg	32-37Wh /kg
2	Dimension to power ratio	210Wh/L	70Wh/L
3	Cycle Life Time	More 2000 times	300 times
4	High Rate Charge /Discharge Performance	Higher than 96%	60~70%
5	Charging performance	1Hour	4Hours
6	Temperature Range & performance	Below20~60degree centigrade LiFePO4 High temperature discharge current is about 105%	Below20~45degree centigrade SLA Battery temperature discharge current is about 80%
7	Monthly Self-discharge Rate	About 3%	More than 10%
8	Safety	Not cause fire and explosion when against overcharge, acupuncture, extrusion, high temperature and other unusual conditions.	Good safety
9	Environmental	Environmental friendly	Environment pollution
