Description

Details

Basic Info.

Model NO.:OPT-024-100

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:High Discharge Rate

Size:Customized

Accessories Type:Chargers

Rated Capacity:100ah

Standard Voltage:24V

Usage:Solar System, UPS, Electric Vehicle

Electrolyte:Lihtium Iron Phosphate

Battery Model:24V 100ah Lithium Battery

Nominal Voltage:24V

Nominal Capacity:100ah

Cut off Voltage:20V

Payment Term:T/T in Advance

Dimension:Customized

Shipping:by Sea, by Air, by Express

Life Cycle:More Than 3000 Times

Warranty:24months

Application:Solar System, UPS, Bank up Power

Export Markets:Global

Additional Info.

Trademark:optimum

Packing:1pk/CTN

Standard:UL CE ROHS TS16949 ISO9001 SGS

Origin:Shenzhen China

HS Code:8507600090

Production Capacity:2000pks/Day

Product Description

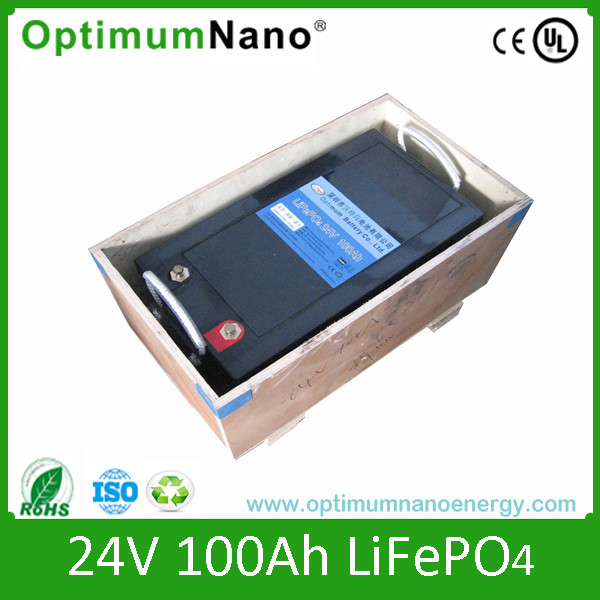

Rechargeable 24V 100ah Lithium Battery for Solar Home System

Rated voltage 24V

Cut-off voltage 20V

Max charge voltage 29.2V

Max constant discharge current: 100A

Cycle 2000 times with 0.2C-1C discharge current

With balance BMS and charger.

1/3 weight of SLA battery

UL, CE, RoHS approved;

Supply ability: 3000pks/day

Package: 1pks/CTN

Standard capacity(0.2C)	200Ah
Mininum Capacity(0.2C)	198Ah
Rated voltage	24V
Max. Charge voltage	29.2V
Cut-off voltage	20.0V
Standard charge and discharge current	0.2C
charging Time	1-5hours
Max discharge current	1.2C

12V 5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah
Item No.	OPT-12-005	OPT-12-010	OPT-12-020	OPT-12-030	OPT-12-040	OPT-12-050	OPT-12-060
Standard Capacity	5Ah	10Ah	20Ah	30Ah	40Ah	50Ah	60Ah
Rated Voltage	12.8V
Discharge Cut-off Voltage	10.0V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	?3% after one month
Life Cycles	80% capacity remaining after 2000 times at 1C rate 100%DoD
Max Charger Voltage	DC14.6V
Standard Charge Current	0.2C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection
Product Size(mm)	1515193	1358585	18276167	118175175	190165175	190165175	350168179
Approx N.W	0.9Kg	1.3Kg	2.8Kg	4.0Kg	5.5Kg	7.0Kg	8.0Kg
	OPT-12-080	OPT-12-100	OPT-12-150	OPT-12-200	OPT-12-200	OPT-12-300	OPT-12-400
Standard Capacity	80Ah	100Ah	150Ah	200Ah	200Ah	300Ah	400Ah
Product Size(mm)	260170215	330170220	525270220	525270220	525270220	525270220	560360200
Approx N.W	11Kg	16Kg	24Kg	35Kg	38Kg	45Kg	65Kg
