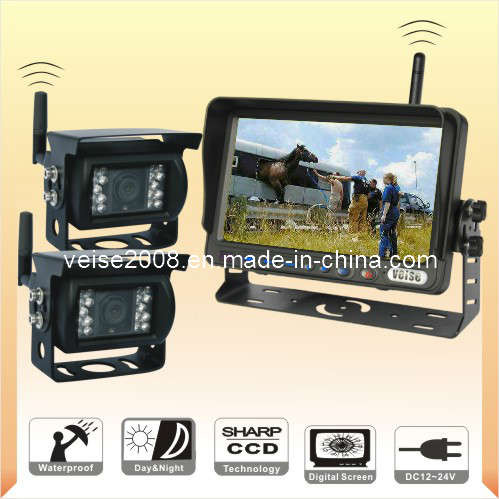

Rear View Camera System with 7inch Wireless Digital Monitor for Horse Trailer (Model: DF-7260112)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Rear View Camera System with 7inch Wireless Digital Monitor for Horse Trailer (Model: DF-7260112)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 250/ Piece

Price:US $250.0 / Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Mar 02, 2015 To Jun 01, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DF-7260112

Shell Material:ABS Plastic

Display Type:LCD Matrix

Function:Waterproof

Definition:420TVL

Chip:CCD

Waterproof Grade:IP69k

Export Markets:Global

Additional Info.

Trademark:VEISE

Packing:Gift Box

Standard:CE, FCC,RoHS, ISO9001:2000, E-MARK

Origin:China

HS Code:8525801390

Production Capacity:14000 Kits/Month

Product Description

*7"TFT LCD Reversing Monitor Built-in 4 CH 2.4GHz wireless receiver and Day/Night Sensor for Illumination of the Control Knobs, On-Screen Menu for All Settings: Normal/Mirror view, Reversing Image Delay, Priority of Reverse Camera, Automatic switch ON (by reverse gear and or by direction lights)

*Backup Camera with 2.4GHz Wireless Transmission Box Built-in Magnet, Easy installation

Farm CCTV Camera(MODEL: DF-4103VFS*2)

Image Type: 1/3 Color SHARP CCD

Built in 2.4GHz transmitter and omni-directional antenna

Transmission Power: 10mW/CE; 2mW/FCC

Estimate of 100 meter wireless send distance without block

Horizontal Resolution: 420TV Lines

Effective pixel: NTSC: 510(H)X492(V); PAL: 500(H)X582(V)

Usable Illumination: 0Lux ( Built in 18pcs IR LED' s for Picture Support in the Dark)

Free viewing angle: 130°

Water resistance: IP69K, Alloyed shell, Waterproof for outdoor use

Shockproof: 10G

Power supply: DC12-24V

Dimensions: 69(W) x 43(H) x 38(D) mm (without mounting)

7 Inch Digital Farm CCTV Wireless Camera System Monitor (Model: SP-726)

7" TFT LCD Monitor with Removable Sun Visor

Built in 4 CH(2.414/2.432/2.450/2.468)GHz Wireless Receiver

Receiving Sensitivity: ? -80dBm

OSD MENU Separately Set Each Camera Trigger Priority

OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30"

OSD MENU Separately Set Each Camera Mirror/Normal image

Color System: PAL/NTSC

Display Resolution: 800RGB(H) X 480(V) dot

Wide view angle(CR> 10): (up/ down): 60/70 (left/right): 75/75

Brightness (cd/m2): 400

Contrast ratio: 500: 1

Auto mirror image video when reversing

Operating temperature: -20º C to +70º C

Storage temperature: -30º C to +80º C

Power suply: DC8~32V

External dimensions: L*W*T(180X124X23)mm

Weight Approx: 350g

CCTV Camera System Accessories

Monitor bracket, Auto cigarette lighter, User Manual, Full Function Remote Controller
