Rear View Camera for Farm Agricultural Machinery Vehicle, Livestock, Tractor, Combine, RV Vision

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Rear View Camera for Farm Agricultural Machinery Vehicle, Livestock, Tractor, Combine, RV Vision

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:VEISE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DF-8093

Shell Material:ABS Plastic

Probe Number:2

Display Type:LCD Matrix

Interface:Air Plug

Function:Night Vision

Definition:420TVL

Chip:CCD

Waterproof Grade:IP69k

Alarming Distance:2.5-0.35m

Probe Diameter:24mm

Export Markets:Global

Additional Info.

Trademark:VEISE

Packing:Gift Box

Standard:CE, FCC, ISO9001: 2000, RoHS

Origin:China

HS Code:8525801390

Production Capacity:5000PCS/Month

Product Description

rear view camera for Farm Agricultural Machinery Vehicle, Livestock, Tractor, Combine, RV Vision
Auto Shutter Backup Camera Part
*Miniature Size Auto Shutter 2.4G Wireless Backup Camera
*Free Operating Voltage DC11-32 Volts and IP68 Waterproof
*Automatic Motorized Protection Shutter Sunvisor, Built in IR LED's for Picture Support in the Dark
*Automatic Heating Below +10oC, Switchable Magnetic Screw for NORMAL/MIRROR View Selection

PRODUCT SPECIFICATION

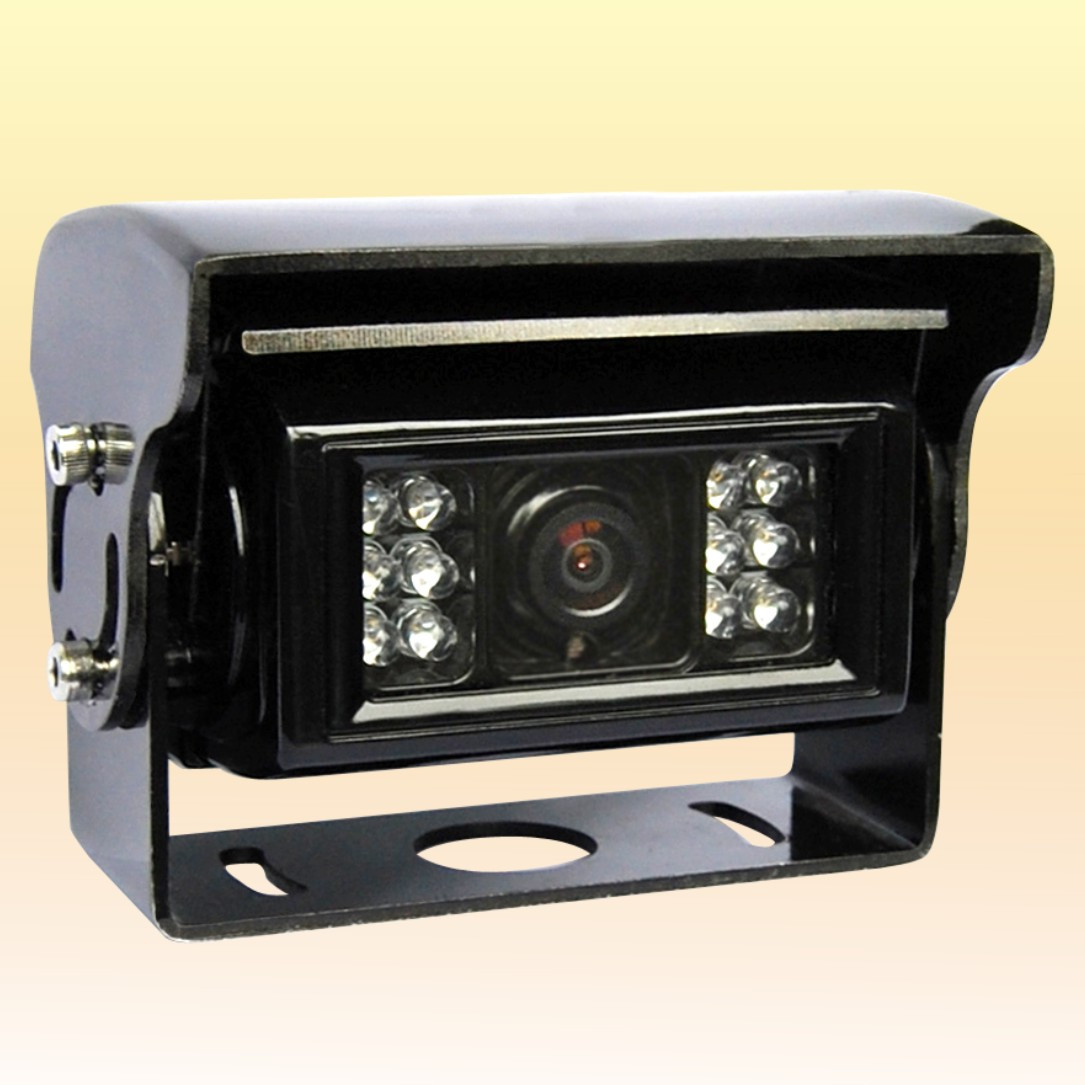

AUTO Shutter Backup Camera (DF-8093)

Image Type: 1/3 Color SHARP CCD

Resolution(pixels): PAL:500(H)*582(V) ,NTSC:510(H)*492(V)

Horizontal Resolution: 420TV Lines

Usable Illumination : 0Lux (12pcs LEDs for night vision 10M )

Free viewing angle: 130°

Video Output: 1.0Vp-p 75 ohm

Shockproof: 10G

Waterproof: IP68

Operation Temperature : -50ºC~+50ºC RH95%Max(Automatic Heating Below +10oC)

Storage Temperature : -20ºC~+60ºC RH95%Max

ee Operating Voltage: DC11-32 Volts

Dimensions: 89(W) x 53(H) x 48(D) mm (without mounting)

Weight : 200g
