Rear Dump, Front Lift Container Transport Semi Trailer (QDT9352TJZG)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Rear Dump, Front Lift Container Transport Semi Trailer (QDT9352TJZG)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 50000/ Piece

Price:US $50000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, DDP, DAP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Feb 06, 2015 To Apr 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT9352TJZG

Type:Semi-Trailer

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Model:Qdt9352tjzg

Curb Weight (Kg):4500

Loading Capacity (Kg):30480

Dimension (Mm):12305X2460X1566

Wheel Specification:11.00-20 16pr, 12.00-20 14pr

Wheel Track (Mm):1820/1820

Material:Steel

Scale:Heavy Duty

Certification:CE, ISO/Ts16949, SGS

Components:Trailer Axles

Export Markets:Global

Additional Info.

Trademark:Qingte, OEM

Packing:Assembly

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:12, 000/Year

Product Description

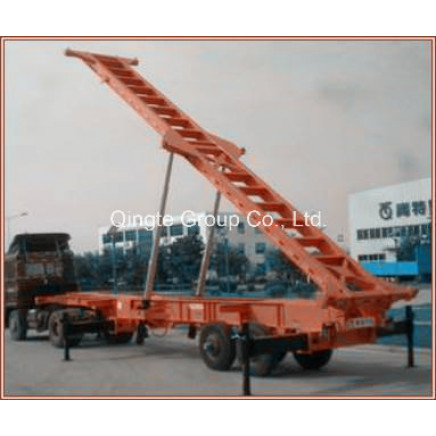

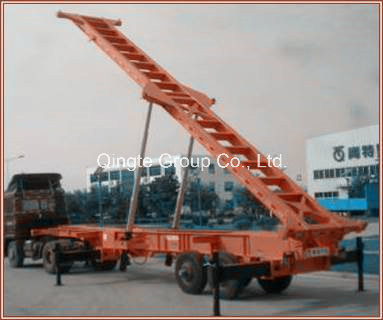

Container Transport Semi-Trailer (QDT9352TJZG)

Curb Weight (kg): 4500
Loading Capacity (kg): 30480
Gross Weight (kg): 34980
Dimension (mm): 12305X2460X1566
Wheel Base (mm): 7850+1320
Overhang(Front/Rear) (mm): -/1735
Wheel Specification: 11.00-20 16PR,
12.00-20 14PR
Wheel Track (mm): 1820/1820
Approach Angle/Departure Angle (°): -/18
Plate Spring Quantity: -/7/7

Model	QDT9352TJZG
Tare Weight (kg)	4500
Loading Capacity (kg)	30480
Gross Weight (kg)	34980
Dimension (mm)	12305x2460x1566
Wheel Base (mm)	7850+1320
Overhang(Front/Rear) (mm)	-/1735
Wheel Specification	11.00-20 16PR, 12.00-20 14PR
Wheel Track (mm)	1820/1820
Approach Angle/Departure Angle (°)	-/18
Plate Spring Quantity	-/7/7

Company Presentation

Qingdao Zhongqi Special Automobiles Co., Ltd., one of the most important entities of Qingte Group Co., Ltd., is a joint corporate enterprise set up by Qingte Group Co., Ltd. and China Auto Industry Import & Export Corporation. Established in 1992 with registered capital of RMB 100 million yuan and 130 thousand sq.m. of floor space, Qingdao Zhongqi Special Automobiles Co., Ltd. now have reached an annual Production Capacity of 10 thousand sets of various kinds of Special Vehicles.

Basing on technique breakthrough of Chassis and Special Device, we have obtained great development on product series of Hydraulic Aerial Platform Vehicle, Special Operation Vehicle, Municipal Duty Vehicle, Construction Operation Vehicle, Heavy-duty Road Transportation Truck, City Cleaning Truck, and other high grade products including Military Vehicle, Airport Tractor and Oil Transportation Truck, gradually forming our Qingte feature which shows an advanced level both in domestic and internationally. It is worth mentioning that the Hydraulic Aerial Platform Hot-line Work Vehicle, cooperative developed products with Altec, USA, have always been world first class and the best in domestic.

Our Hydraulic Aerial Platform Hot-line Work Vehicle series and Multi-function Poling Machine, adopting optimal configuration from Altec, could satisfy wide ranges of demand from power sector, communication sector and city construction, with its working height from 11m to 25m and isolation voltage from 46KV to 220KV. Qingte-Altec Products have passed the performance test processed by the State Power Corporation assigning institution, Wuhan High Pressure Research Institution(WHHPRI), with all of its technical index reaching the original design standard. After its test, the series was highly recommended by the institution.

Qingdao Zhongqi Special Automobiles Co., Ltd. has taken the leading in obtaining ISO9001:2000 Certification, ISO14000 Environment Management System Certification, OHSMS18000, CCC and the National AAAA Level Standardization Good Behavior Enterprise Confirmation, establishing a thorough quality management system. Qingte Group Co., Ltd. was identified 2012 National Technology Innovation Demonstration Enterprise. With a national level enterprise technical center, containing its high technical level and development capabilities, Qingte Group now have an independent capacity of developing various kinds of special vehicles and parts.
