Real Time Vehicle Tracking Device Fleet Management for Car Security

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 300/ Piece

Price:US $300.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 04, 2014 To Jul 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BSJ-M20

Function:Anti-theft Warning, Central Locking System Automation, GSM Network Remote Real-time Monitoring, Mute Anti-theft, Remote Central Locking, Automatically Unlock when Get Close

Type:GSM

Size of Main Unit:110*80*25mm

Weight:170g

Backup Battery:3000mAh/3.7V

Power Consumption:65mA

Working Temperature:-20 to 80 Centigrade

Humidity:5% to 95%

Data Logger Memory:4MB

GPS Chip:U-Blox

GPS Sensitivity:-163dBm

Positioning Accuracy:10 Meter

Export Markets:Global

Additional Info.

Trademark:BSJ/Customized brand is accepted

Packing:Gift Box/Netural Box

Standard:ISO9001; CE; Rohs; CCC;

Origin:Shenzhen, China.

HS Code:85311010

Production Capacity:2, 000, 000PCS/Week

Product Description

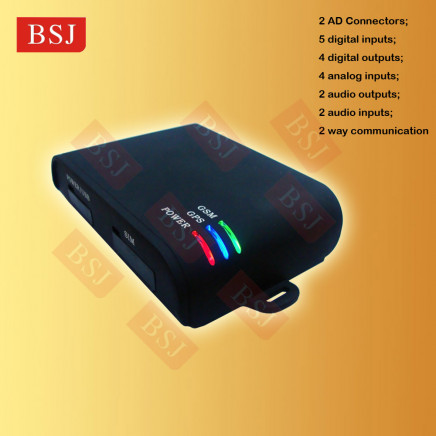

Real Time Vehicle Tracking Device Fleet Management for Car Security

I. Description of Real Time Vehicle Tracking Device Fleet Management M20

Real Time Vehicle Tracking Device Fleet Management, motion sensor for shake alarm and power saving is designed for car, truck and fleet management. It is a new product based on 900/1800/850/1900MHZ for worldwide market. It is a mulstiple gps tracker and car alarm device. Support upgrade firmware in air for free.

2. Applications of Real Time Vehicle Tracking Device Fleet Management M20

Vehicle Real Time Tracking
Vehicle Data Warehouse
Location Based Service
Car Security/Anti-Hijack
Fleet Management

3. Features of Real Time Vehicle Tracking Device Fleet Management M20

U-blox GPS and Quad Band GSM 850/900/1800/1900Mhz
Track by SMS/GPRS (TCP/UDP)
Track on Demand
Track by Time Interval
Track on Mobile Phone
Inbuilt Motion Sensor
3, 000mAh Internal Backup Battery
Mileage report
Wiretapping
Power low/lost alert
Towing alert
SOS alert
Geo-fence alert
GPS Antenna Cut alert
20 ports(5 digital inputs; 4 digital outputs; 4 analog inputs; 2 audio outputs; 2 audio inputs)

4. Accessories of Real Time Vehicle Tracking Device Fleet Management M20

M20 GPS tracker
GPS antenna
GSM antenna
Microphone
I/O cable
Panic button
USB cable

5. Optional accessories of Real Time Vehicle Tracking Device Fleet Management M20

Fuel sensor
Temperature sensor
Relay

Items	Parameter
Dimension	110mm80mm25mm
Weight	170g
Input Voltage	DC 9V~36V/1.5A
Back-up Battery	3000mAh/3.7V
Power consumption	65mA standby current
Operating temperature	-20~80 Centigrade
Humidity	5%~95%
Work Time	10 hours in normal mode
LED	3 LED lights to show GPS, GSM and Power
Button	1 SOS and 1 power on/off
Microphone	1
Speaker	1
Flash memory	4MB
Sensor	Built in motion sensor
GSM frequency	GSM 850/900/1800/1900MHz
GPS chip	U-blox
GPS sensitivity	-159dB
Positioning accuracy	10 meters
I/O ports	5 digital inputs; 4 digital outputs; 2 analog inputs; 2 audio outputs; 2 audio inputs.
USB port	1 USB for configuration, updating firmware and detecting logs
