Racing Connecting Rod H Beam for Mitsubishi 6g72

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$26.0 - $27.0 / Piece

Min. Order (Pieces)	Unit Price
20.0	US $ 26/ Piece
100.0	US $ 27/ Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union

Price Valid Time:From Jul 21, 2015 To Jan 21, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:4G63, 4G63-2, A-162(4G63), 4G93, CR-MIT-120(4G93)

Type:Racing Connecting Rod

Material:Forged Steel 4340

Muffler Type:Center Muffler

Deck:Double

Car Make:Mitsubishi 6g72

Handle:H Beam & I Beam

Size:Can Random Alter

Service:Free Sample & Color Laser Typing Logo

Certificate:ISO9001 & Ts16949

Delivery:30days

Guarantee:3 Years

Payment:30% Deposit, 70% Before Delivery

Other Model:4G15 131, Cc131bmm, 4G18

Other Engine:Opel, BMW, VW, Toyota, Honda, Ford, Peugeot

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:XYTOSAN, KOSFA, GPM, GEO PARTS

Packing:Xytosan Packing, Neutral Packing, as Your Required

Standard:OEM STD

Origin:Anhui(Mainland of China)

HS Code:8409919930

Production Capacity:200, 000PCS/Month

Product Description

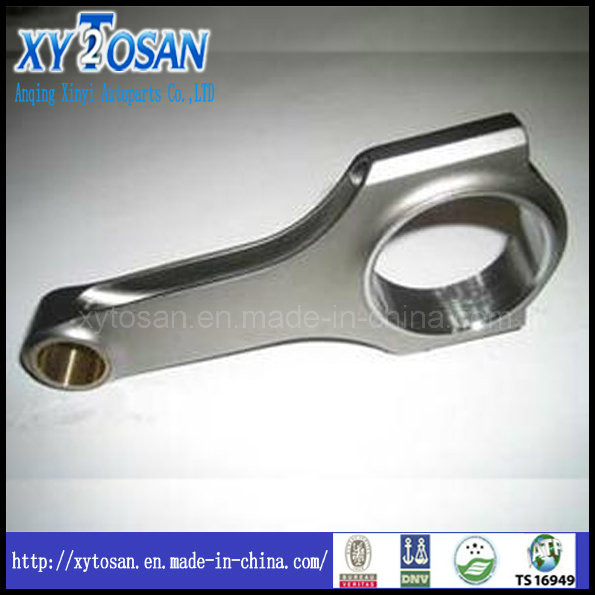

Racing Connecting Rod H Beam for Mitsubishi 6G72

Product Detail

1). Material:Forged Steel 4340;

2). Handle:H Beam & I Beam & X Beam;

3). Hardness: 600-1000HRC;

4). Size:Can Random Alter;

C-C(mm)	B/E bore	S/E bore	B/E W	S/E W	bolt
center to center	big end bore	small end bore	big end width	small end width	bolt
red line part	blue line part	blue line part	purple line part	purple line part	green frame

5). Technological Process of Production:

Roughcast testing whiling drawn into	?	Mill rod, Cover plane	?	Capitulum hole drilling and converse angle	?
Rough mill pole double-plane	?	Rough tang capitulum hole	?	Rough mill pole cover stage	?
Rough mill haftarah plane(intrados)	?	Semi finished product test	?	Benchmark of mill and serial number	?
Polished mill pole cover stage	?	Rough tang big hole	?	Mill tile slot	?
Screwed hole drilling	?	Fitting and proficiency	?	Semi polished pole cover double plane	?
Semi-polished capitulum and converse angle	?	Oil hole drilling	?	Copper oppression cover	?
Polished mill pole cover double plane	?	Degaussing	?	Polished tang capitulum hole	?
Finished product checking	?	Precise milling	?	Weighing,grouping and tabing	?
Generaltests	?	Cleanout,Oil antirust oil	?	Packaging and leaving factory

6). Certification: ISO9001, TS16949, etc.;

7). Brand: XYTOSAN,KOSFA,GPM, GEO PARTS,etc.;

8). Production Capacity: 200,000 pcs/month;

9). Delivery Day: 30 days after received the deposit;

10). Quality guarantee: 3 years;

11). Our main export market:North America, South America,Europe,Asia,ect.

Service

1). New products can be developed upon customers' sample or drawing;

2). Samples can be sent for customers to check the quality before ordering(if we
      have them in stock);

3). Making color laser logo upon customers' needs;

4). Our factory can provide OEM service;

5). We can offer various of connecting rod,such as:BENZ,BUICK,CATEPILLAR,
      CUMMINS,DAEWOO,FORD,HINO,HONDA,ISUZU,KIA,KOMATSU,LADA,
      MITSUBISHI,NISSAN,PERKINS,PEUGEOT,SUZUKI,TOYOTA,VOLVO,etc.

6). Other engine parts: engine valve, valve guide, cylinder head,complete cylinder
      head,crankshaft,camshaft,valve tappet,rock arm,rock arm assembly and so on...

Package

1). XYTOSAN packing

2). Neutral packing

3). According to customer's requirement

Contact us

ANQING XINYI AUTOPARTS CO.,LTD

Contact Person: Miss Juley

Tel: +86-556-5675229

Fax: +86-556-5171000

Mobile: +86-13865157191

http://xytosan.en.made-in-china.com

Web:http://www.osvat.cn

Mitsubishi racing connecting rod:

No.	Type	Engine	pcs/set	(mm)c-c	B/E bore	S/E bore	B/E W	S/E W	bolt
No.35a	Mitsubishi	4G63	4	150.00	48	22	26.4	20.5	3/8"
No.35b		4G63-2	4	147.00	48	22	26.4	20.5	3/8"
No.35d		4G63	4	150.00	48	22	26.4	26.4	3/8"
No.35h		4G63-H	4	150.00	48	22	26.4	26.4	3/8"
No.35g		4G63-I	4	150.00	48	22	26.4	26.4	3/8"
No.37		A-162(4G63)	4	149.95	48	22	26.34	26.34	5/16"
No.36		4G93	4	133.00	48	19	21.8	21.8	5/16"
No.36b		4G93	4	133.50	48	19	21.8	21.8	3/8"
No.36c		CR-MIT-120(4G93)	4	120.00	48	19(21)	29.85(21.87)	29.85(21.87)	3/8"
No.368		6G72	4	140.61	52.98	22	20.83	20.83	3/8"
No.405b		4G15 131	4`	131	45	18	19.9	19.9	3/8"
No.431		cc131Bmm	4	131	48	18	24.3	22.8	3/8"
No.517			4	124	48	20	21.1	21.9	3/8"
No.405c		4G18	4`	131	45	18	19.9	19.9	5/16"

We can also provide common auto con rod. and motor con rod. Please contact me if any requirement.
