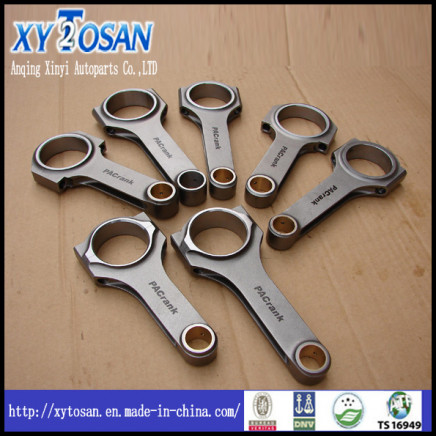

Racing Connecting Rod for Volvo B230

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$26.0 - $27.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 27/ Piece
1000.0	US $ 26/ Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Mar 13, 2015 To Jun 06, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Racing connecting rod for Volvo B230

PCS/Set:4

(Mm)C-C:160

B/E Bore:52

S/E Bore:23.566

B/E W:24.75

S/E W:28

Bolt:7/16"

Quality Guarantee:3 Years

MOQ:1PC If Have Stocks & 50PCS for Producing

Certification:ISO9001, Ts16949, ISO14001 and So on

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Oceania, Eastern Asia, Western Europe

Additional Info.

Trademark:XYTOSAN, OSVAT, GPM, PAGZD, GEO, KOSFA and so on

Packing:Neutral, Xytosan or Upon Customers? Needs

Standard:OEM STD

Origin:Mainland of China

HS Code:8409919930

Production Capacity:About 3000000PCS /Year

Product Description

Racing connecting rod for Volvo B230

Product details
1) Material: 4340 forged steel;

2) Beam: H beam & I beam;

3) Hardness: 600-1000hp.

4) Technical flowsheet of connecting rod production

?	Roughcast testing whiling drawn into	?	Mill rod, Cover plane ,	?	Capitulum hole drilling ,and converse angle	?
	Rough mill pole double-plane	?	Rough tang capitulum hole	?	Rough mill pole cover ,stage	?
	Rough mill haftarah plane(intrados)	?	Semi finished product test	?	Benchmark of mill and serial number	?
	Polished mill pole cover stage	?	Rough tang big hole	?	Mill tile slot	?
	Screwed hole drilling	?	Fitting and proficiency	?	Semi polished pole cover double plane	?
	Semi-polished capitulum and converse angle	?	Oil hole drilling	?	Copper oppression cover	?
	Polished mill pole cover double plane	?	Degaussing	?	Polished tang capitulum hole	?
	Finished product checking	?	Precise milling	?	Weighing,grouping and tabing	?
	Generaltests	?	Cleanout,Oil antirust oil	?	Packaging and leaving factory	?

Strong capability
1) Production: more than 300000pcs/month;

2) Certification: ISO9001, Ts16949, ISO14001, etc.;

3) We have ANGOLA branch;

4) Brand: XYTOSAN, GPM, PAGZD, GEO, KOSFA, etc..

Other models:
Offering racing connecting rod for VOLVO, OPEL, BMW, VW, TOYOTA, HONDA, FORD, PEUGEOT, NISSAN, FIAT, PORSCHE, MITSUBISHI, SUBARU, SUZUKI, KAWASAKI, RENAULT, FERRARI, YAMAHA, ALFA, TRIUMPH, LAND ROVER, MG, AUSTIN, HOLDEN, BENZ, MAZDA, CHRYSLER, NYTRO, FAIRE, BUICK, SIGMA, DAIHATSU, SPRIDGET, ETC.

VOLVO racing connecting rod:

No.	Type	Engine	pcs/set	(mm)c-c	B/E bore	S/E bore	B/E W	S/E W	bolt
No.1	Volvo	139.5-23-53	5	139.50	53	23	25.67	25.67	3/8"
No.1b		139.5-23-53	5	139.50	53	23	25.67	25.67	M10X1.25
No.2		143-23-53	5	143	53	23	25.67	25.67	3/8"
No.3		145-24-58	4	145	58	24	29.73	29.73	3/8"
No.3b		145-24-58	4	145	58	24	29.73	24.8	7/16"
No.3d		145-24-58	4	145	58	24	29.5	29.5	3/8"
No.4		147-23-53	5	147	53	23	25.67	25.67	3/8"
No.4b		147-56-24	4	147	56	24	26.4	26.4	3/8"
No.4c		147-21-53	5	147	53	21	25.67	21.85	3/8"
No.5		152-23-52	4	152	52	23	25	25	M10X1.25
No.5b		152-23-52	4	152	52	23	25.67	25.67	3/8"
No.5c		152-23-52	4	152	52	23	24.8	24.8	3/8"
No.6		152-23-53	5	152	53	23	25.67	25.67	3/8"
No.7		152-22-58	4	152	58	22	29.73	29.73	3/8"
No.7b		154-25-57	4	154	57	25	26.4	22	3/8"
No.8a		152-23-52(L)	4	152	52	23	24.8	24.8	3/8"
No.8b		158-23-52(L)	4	158	52	23	24.8	24.8	3/8"
No.8c		152-23-52	4	152	52	23	29.4	24.8	3/8"
No.8d		152-23-52	4	152	52	23	29.5	24.8	3/8"
No.8e		152-23-52	4	152	52	23	25.67	24.8	3/8"
No.8f		152-23-52	4	152	52	23	29.7	25.2	3/8"
No.8h		158-23-52	4	158	52	23	29.5	25	3/8''
No.92		SWVA31	4	139.5	53	23	25.7	25.7	3/8"
No.92b		SWVA31	4	143	53	23	25.7	25.7	3/8"
No.128		V149-24-58	4	149	58	24	29.75	29.75	7/16"
No.130		V152-23.02-52	4	152	52	23.02	25.67	24.8	3/8"
No.131b		Volvo B23	4	160	58	23.566	29.75	29.75	7/16"
No.131a		Volvo B23	4	160	58	23.566	29.75	24.8	7/16"
No.131c		Volvo B23	4	145	58	24	29.75	24.8	7/16"
No.132b		Volvo B230	4	160	52	23.566	24.75	28	7/16"
No.132a		Volvo B230	4	160	52	23.566	29.75	24.8	7/16"
No.471		AR2395	4	154	57	25	26.4	22	3/8"
No.472		AR239000	4	147	56	24	26.4	26.4	3/8"

Other parts:
Offering 40Cr connecting rod, 20Cr connecting rod, crankshaft, camshaft and so on.

Service
1) Offering sample, drawing & material analysis before producing;

2) Quality guarantee: three years;

3) Making logo upon customers' needs;

4) Changing any size upon customers' needs;

5) Developing new models according to samples or drawings;

Package & Shipping
1) Neutral packing, XYTOSAN packing or upon customers' needs;
Racing Connecting Rod for Volvo B230

2) Delivery time: about 35 days for producing;

3) By sea or air(TNT, DHL, FEDEX, UPS, etc.).
