PU Sandwich Metallic Embossed Wall Panels

More Views

PU Sandwich Metallic Embossed Wall Panels

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Square Meters

Trade Terms:FOB, CFR, CIF, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:OEM/Captain

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:captain panel b

Material:Sandwich Panel

Usage:Warehouse, Villa, Dormitories, Temporary Offices, Workshop

Certification:CE

Customized:Customized

Specification:Customized

Thickness:16-60mm

Standard Width:380mm

Metal Thickness:0.2-0.5mm

Color and Pattern:as Requested

Export Markets:Global

Additional Info.

Trademark:OEM/Captain

Packing:Export Container /Pallet /Disassembly with Carton

Standard:SGS, ISO

Origin:China, Shandong

Production Capacity:360000m/Month

Product Description

Specifications

Outdoor decorative siding panels
Superb Decoration Effect
Thermal Insulation & Energy-saving
Easy Installation & Cost Redu

Outdoor decorative siding panels

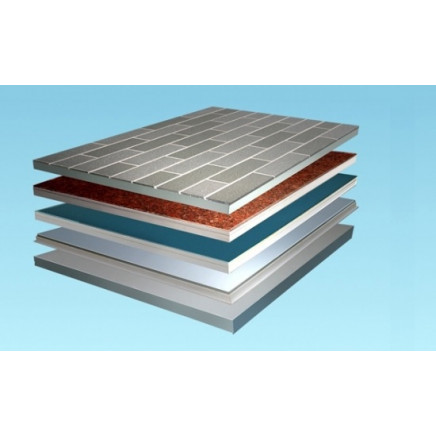

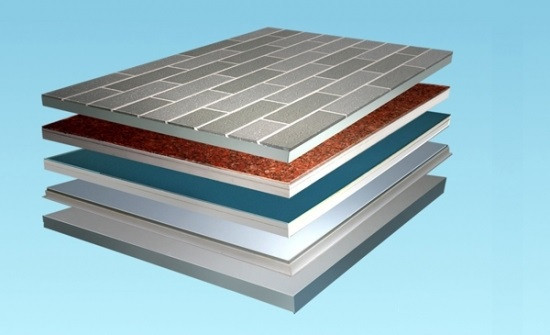

Material

1)Front side Color painted embossed steel sheet with zinc and alunminum coated
2)Core High density polyurethane foam added fireproof materials.
3)Rear side Aluminium fiber layer.

2. Specification

1) Standard dimensions (width*length*thickness)
380x3800x16mm
2) Panel thickness 16mm, 60mm
3) Aluminium skin thickness 0.2-0.5mm
4) Width
Standard width 380mm
Other width as optional 385mm, 405mm, 415mm
5) Length
Standard length 3800mm, other length available upon request.
7) Color All colors, single or double colors.

8) PU foam density 80-90kgs/m3

9) thickness of metal sheet 0.3mm---0.5mm

3. Package

8 or 9 piece in each package;

Dimension of each package is 420x140x3840mm;

Unit Weight less than 5.5kg/pc. Gross Weight45kg/CTN

Results
Serial No	Inspection Items	unit	Technical Requirements	Test Results	Individual Determinant	notes
1	In-container Status	/	No solid piece	No solid piece	Qualified
2	nonvolatile matter	%	?40	52	Qualified
3	Drying time	h	/	/	/
	Outer Drying		?2	1	Qualified
	Inner Drying		?24	8	Qualified
4	Pencil hardness	/	?F	4H	Qualified
5	adhesive force(1mm)		?1	1	Qualified
6	Shininess Deviation(60�)	�	?10	10	Qualified
7	Coating Thickness	?M	?200	200?M	Qualified
8	fluorine	/	?18%	18%	Qualified
9	frost resistance	/	Not being warped and no cracks	Not being warped and no cracks	Qualified
10	Acid resistance	/	No bubbling, hump, pulverization	No bubbling, hump, pulverization	Qualified
11	Alkali resistance	/	No bubbling, hump, pulverization	No bubbling, hump, pulverization	Qualified
12	wear resistant Consumables	/	?5L?M	5L?M	Qualified
13	Water absorption/(g/m2)soaked for 1h	/	No bubbling, hump, pulverization	No bubbling, hump, pulverization	Qualified
