Shenzhen Protruly Electronics Co., Ltd. |

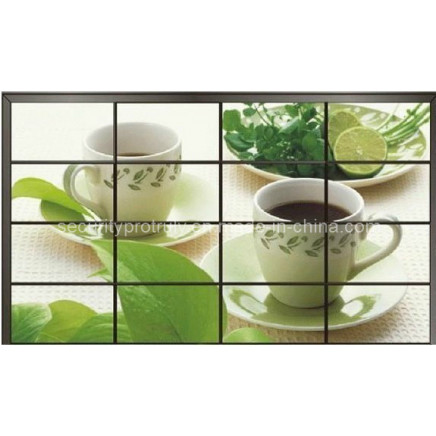

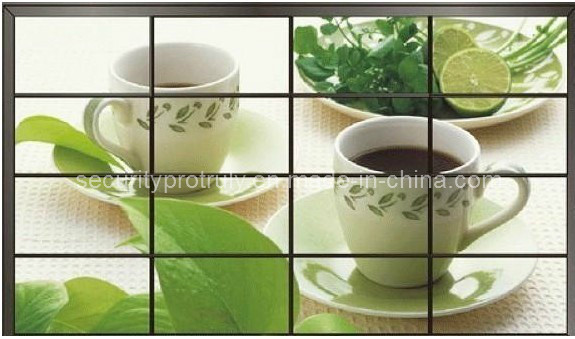

Samsung DID industrial panel- LCD video wall system (1000 series Built-in Matrix) |
Features:
1. Composed with Main Screen x 1piece and other Sub-Screens.
2. All the signals entre into Main Screen, transfer to DVI digital signal to any Sub-Screens.
3. All the Sub-Screens connect by DVI cable in series.
Display Mode:
1. Splicing to full screen display by any line or row.
2. Each screen can show out the same image by reduplicate.
3. Kaleidoscope display.
Application Places:
1. Entertainment Show: Pub, Bar, KTV, Live.
2. Live Television: Convention, Banquet, Sport Event.
3. Enterprise Hall.
Control Software:
1. Both Chinese and English are optional.
2. Apply to Windows. |
Model
|
BQL-1055-JSNB/LED |
Screen Diagonal |
55" |
Size(WxHxD)mm |
1215.3 x 686.1 x 120.4 |
Screen resolution |
1920 x 1080P |
Active display(HxV) |
1209.6 x 680.4 |
Color Saturation |
97% |
Brightness |
450cd/ square meter |
Contrast ratio |
3500:1 |
Back light |
LED |
Refresh Frequency |
60HZ |
Display Color |
16.7M (8-bit) |
Viewing Angle |
178° |
Seam |
5.3mm |
Input Interface |
HDMI, AV, YPr/Pb, S-VIDEO, VGA |
Signal Format |
NTSC, PAL, 480P, 576P, 720P, 1080I, 1080P |
Control Interface |
RS232 AND IR REMOTE CONTROLLER |
Image Processing Technique |
An orginal creation of Dynamic Super Resolution Technique will clearly display low resolution image on high resolution screen.De-interlacing Technique will eliminate flash.Dynamic value compensate,3D dynamic digital reduce sound,3D pectination filtration,10 digital brightness and increase color,image frame can select compensate and cover,full high definition signal real time processing. |
Matrix Configuration |
Built-in matrix |
Work Temperature |
0 - 50 |
Work Humidity |
15 - 75% |
Power Supply. |
AC220V - AC240V |
Average Power |
160W |
Net weight |
38KG |
Install way |
Wall hanging, Floor stand, Cabinet |
Recommend Use Location |
Security, control center, entertainment places, advertising, meeting center any indoor place you like. |
Display Function Summarize |
Manual / Timing / Cruise / Alarm plan settings, kaleidoscope display, intelligent temperature control and alarm, communication failures automatic detection.
Single screen display; Full screens display; Any combination of screens display. |
Acessories |
Free Accessories included: DIV Cables, RS232 Cables, AC Power Cables, IR Romote, IR Receiver, Controlling Software DC, Screws for Installing Brakcet and Display, User Manual. |
BUSINESS TERMS |
1) Above price based on EXW. |
2) Payment terms: 30% T/T deposit, rest before delivery. |
3) Lead time of delivery: Within one week after payment rec'd. |
4) Package: A7 carton for inner package, wooden carton for master package. |
