Protruly 150m Infrared Automatic Tracking Intelligent High Speed Dome Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:5 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Money Gram, Western Union

Trademark:Protruly / OEM

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LeL89-270-150/AT-T-001

Technology:Pan / Tilt / Zoom

Style:Pan/Tilt

Type:CCTV Camera

Sensor:CCD

Horizontal Resolution:650tvl

Kind:Autofocus Lens

Feature:Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC

CCD:1/3 CCD Sony Effio-S

Focus Length:4.8mm~105.6mm

Presets:256

OSD:Full-Screen Menu

IR Lamp Distance:150m

Material:Aluminum Shell, Waterproof IP66

Export Markets:Global

Additional Info.

Trademark:Protruly / OEM

Packing:Cantons

Standard:CE/FCC/ROHS/3C

Origin:Shenzhen, China

HS Code:8525801390

Production Capacity:500PCS / Week

Product Description

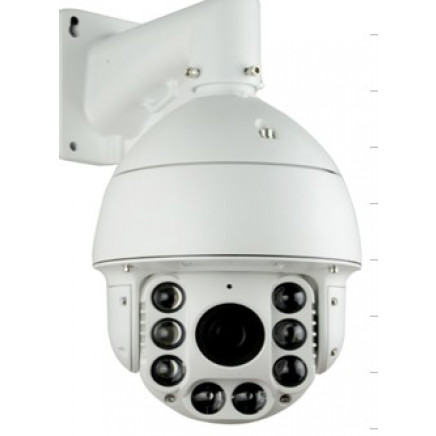

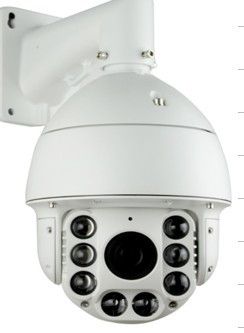

150M Infrared Automatic Tracking Intelligent Dome Camera

Feature:
> Horizontal 360 ° , continuous rotation, no blind spot, automatic tracking smart dome camera series.
> Double case protect camera device, continuing work temperature lower than 50º C.
> Using high quality components, senior motor, smooth operation, high reliability; High rotation speed adjusted according to the lens zoom.
> Adopted advanced "zoom and optics sync" way control IR lamp, in effect solve "electric torch" domino effect, original creation intelligent control IR lamp on and off, utilize IR light-source in reason.
> Special designed camera, IR lamp sub-depot separate system, no sphere case glisten, fogging malady.
> Constant voltage & constant current circuit design, ensure long time working for IR lamp, IR lamp life lasting to above 20000hours.
> Low Power, IR effective distance is 150 meters.
> Optional temperature control system, suitable for working in high or low temperature environment, science, beautiful and fixedness structure.
> Triple lighting protection technology, effectively raising the speed dome mine and anti-jamming capability.
> Built-in OSD, can set and call presets, pattern track, area scan and display area.

Model No.	LeL89-270-150/AT
CCD	1/3 ? CCD SONY Effio
Signal mode	PAL/NTSC
Horizontal resolution	650 TVL
Effective Pixel	PAL: 976(H)× 582(V) NTSC: 976(H)× 494(V)
Minimum illumination	Color to B/W, color 0.01Lux, B/W 0.001Lux
S/N radio	? 60dB
Backlight compensation	On/Off/ Strong light inhibition
White balance	Auto/Manual
Electronic shutter	PAL: 1/50~1/10000seconds NTSC: 1/60~1/12000seconds
Focus length	4.8mm~105.6mm
Optical focus	27X
Focus	Auto/manual, take high-performance DSP to realize complete digital and ultra-high speed focus function
presets	256
Pattern Track	4 groups, each can record 200 actions
Tour Track	Every group have 16 presets can join cruise, can setting the presets' residence time
Other Scan	Support horizontal scan , deuce area scan , scan random
Rotation Range	horizontal 360° unlimited rotation, vertical 180° , auto reversal
Rotation Speed	Horizontal and vertical: minimum 0.01° /s, maximum 300° /s (Can automatically adjust the multiples according to the Lens zoom)
Communications	PELCO D, PELCO P
Special function	AWB, MASK, DNR, Strong light Optimizer , MIRROR, DSS, Automatic tracking
OSD	Full-screen menu
Temperature	Optional
IR Lamp Distance	150m
Power Supply	DC12V/4A
Mater	Aluminum shell , waterproof IP66
Work Environment	-10° C--70° C(Select temperature control accessories), < 95%RH
