(Promotion) Car Navigator for Kenwood with Wince 6.0

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB

Payment Terms:T/T, Paypal

Trademark:Lsailt

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LLT-KE3001

Type:GPS Navigator

Use:Automotive

Video Output Format:Composite Video(Cvbs,Y/C,YPbPr)/ Analog RGB

Sound Output:Dual Channel CD Stereo Sound

Operating System:Wince 6.0 Core

GPS Antenna Type:External Active Ceramic Antenna

Storage Space:128MB(Can Expand to 8GB)

Definition:800*480(Selection by Resistor)

Memory:128MB/256MB

Mian Chip:Sirf Atlas V/Msb2531

Frequency:664MHz+336MHz DSP/800MHz

Export Markets:Global

Additional Info.

Trademark:Lsailt

Packing:Standard Export Box

Standard:CE, SGS

Origin:Shen Zhen, Guang Dong

Production Capacity:5, 000, 000/Year

Product Description

Car Video Special navigation module for KENWOOD

Brand: LLT Module number: LLT- KE3001
Installation advantages

1. Nondestructive installation design, do not damage the original car line, special interface wire, plug-up installation without wire cut,
2. Select installation function freely (can select BT function)
3. Technology is comparatively reliable; Comply with the original car agreement.
4. Remain all functions of the original host after upgrading. If there are some wrong with navigation, it will not have influence on the original car function.
5. Convenient After-sale service; It is more simple, fewer risks, safer and more reliable than dedicated machine and it can directly change suitable module.
6. Choose a beautiful interface freely.
7. Realize handwritten navigation function, and touchscreen control navigation, which is more convenient and flexible than original industrial navigation.

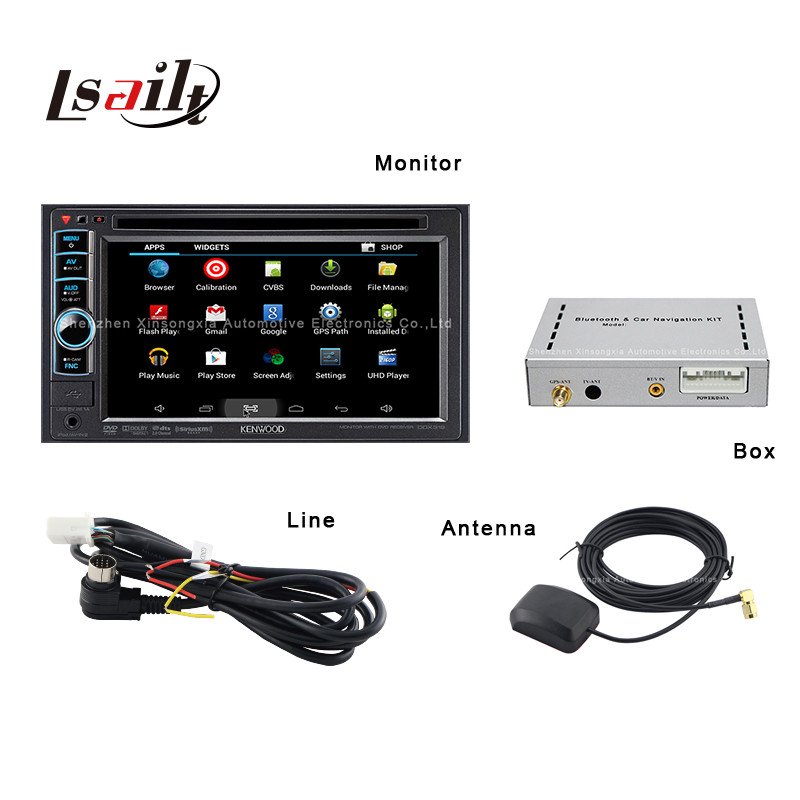

Product accessories

Mainframe	1(standard configuration)
Dedicated wire	1(standard configuration)
Antenna	1(standard configuration)
Specification	1(standard configuration)
certification	1(standard configuration)
Warranty card	1(standard configuration)
Microphone	1(optional configuration)
Horn	1(optional configuration)
Map card	1(optional configuration)
Mute dedicated line	1(optional configuration)

Product accessories

Frequency:	664MHZ+336MHZ DSP/800MHZ
Main chip model:	Sirf Atlas V/MSB2531
Memory:	128MB/256MB
Storage space:	128MB(can expand to 8GB)
Navigation software storage:	SD card
Operating system:	WINCE6.0 CORE
Supported audio and video formats:	MP3/PCM/WMA/ Mp4/mpeg/mpg/asf/wmv/mov etc.
Support video type:	Mp4/mpeg/mpg/asf/wmv/mov etc.
Video output format:	Composite Video(CVBS,Y/C,YPbPr)/ Analog RGB
Video output voltage:	1.0Vpp/75?
Resolution:	800X480(selection by resistor)
Sound output:	Dual channel CD stereo sound
Operating temperature:	~40 to +85
Storage temperature:	~40 to +100
Operating voltage:	DC 9-16V
Tracking sensitivity:	~161dBm
Positioning accuracy:	10m, 2D RMS,5m, 2D RMS, WAAS enable
GPS Antenna type:	External active ceramic antenna

For models:DDX-5036/630bt/4038/7036/8036 etc. all machine with NAVI interface . (800X480))
