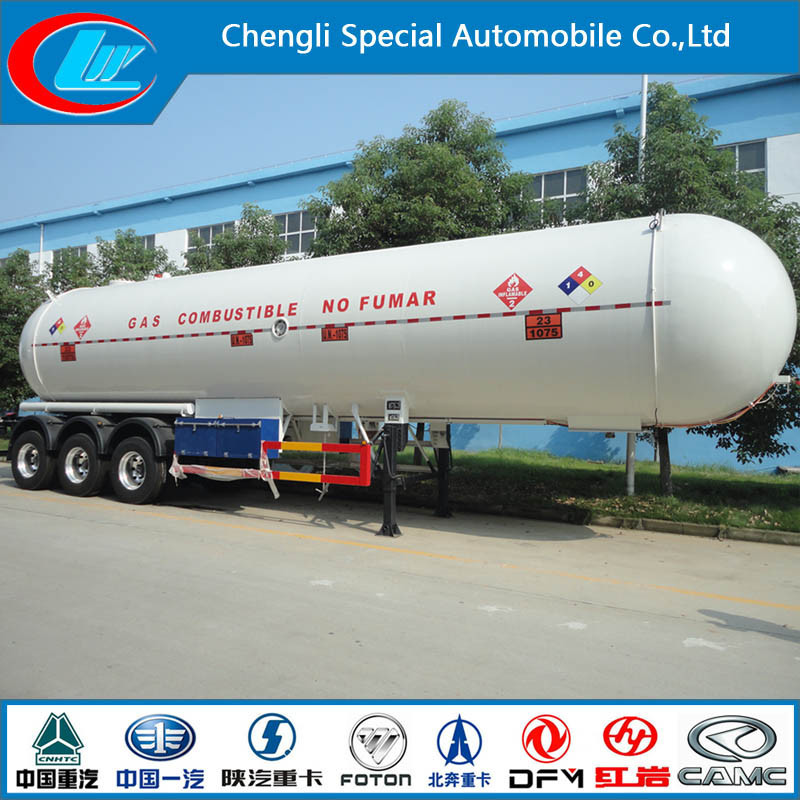

Pressure vessels 59520 liters LPG tanker trailer 40CBM 50CBM 60CBM LPG Semi trailer
Our Company
Chengli Special Automobile Co., Ltd., was established in 2004. We are a professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks, semi-trailers, and storage tanks.
All of our products comply can reach the international quality standards and are greatly appreciated in a variety of markets around the world.
Name | Pressure vessels 59520 liters LPG tanker trailer 40CBM 50CBM 60CBM LPG Semi trailer |
Model | | CLW9400 | |
Medium | | propane |
Tanker size | mm | 13000X2500X3990 |
Effect valume | m3 | 59.52 |
Tare weight | kg | 15000 |
Design pressure | Mpa | 1.77 |
Working pressure | Mpa | ?1.6 |
Working temperature | �C | ?50 |
Water pressure test | Mpa | 2.22 |
Sealing test | Mpa | 1.77 |
material | Q345R,16MnIII(Tanker and the main pressure parts) |
Work standard | LPG GB150 Steel pressure vessel, pressure vessel technology to monitor the safety regulations |
Choose parts | Pressure relief valve, magnetic flap gauge, pressure gauge, thermometer, valve, etc. |
| NO. | NAME |
| 1 | Little head |
| 2 | piazza light |
| 3 | Flying rings |
| 4 | Body |
| 5 | Safety valve |
| 6 | Manhole |
| 7 | Big head |
| 8 | Indicator of liquid level |
| 9 | Nameplate |
| 10 | Rear bumper |
| 11 | Seat |
| 12 | Plate for protecting tyre |
| 13 | Valve box and operation system |
| 14 | Side protecting rail |
| 15 | Seat of support leg(JOST) |
| 16 | Seat of king pin(JOST) |
| N/W | Axle:13T BPW Axle*3 |
| N/W | Tyre: 12R22.5 12PR 12pcs+1spare |
Our factory is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3Cauthentication.We can produce various kinds of LPG Trucks, LPG Semi-trailers and LPG Storage Tanks. 1. The biggest LPG truck's valid volume is 35.5cbm
2. The biggest LPG trailer's valid volume is 58.5cbm; low transport costs, more profit.
3. Our LPG storage tank is ranged from 10cbm to 100cbm, both ground and underground.
Chengli Special automobile Co., Ltd also provide products as follows: 1. LPG Tank Truck Trailer/ Fuel Tanker Truck2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker3. Truck with crane / Truck mounted crane4. Dump Truck / Tipper Truck/Side Tipper/End Tipper5. Fire Fighting Truck / Fire Truck / Fire Vehicle6. Concrete Mixer Truck7. Van truck / Blasting equipment transporter/ Refrigerated truck8. Fecal suction truck / Sewage suction truck,9. Cement Powder Tank truck/ Bulk cement truck10. High-altitude operation truck,11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc12. Tractor13. High Pressure Cleaning Truck14. Sweeper Truck15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )Contact with me!
