Packaging & Delivery
Packaging Detail: Standard carton packing or shrink film and carton packing.
Delivery Detail: 2 weeks after getting the down payment.
Specifications

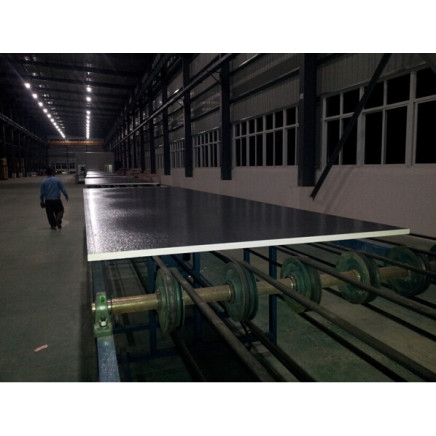

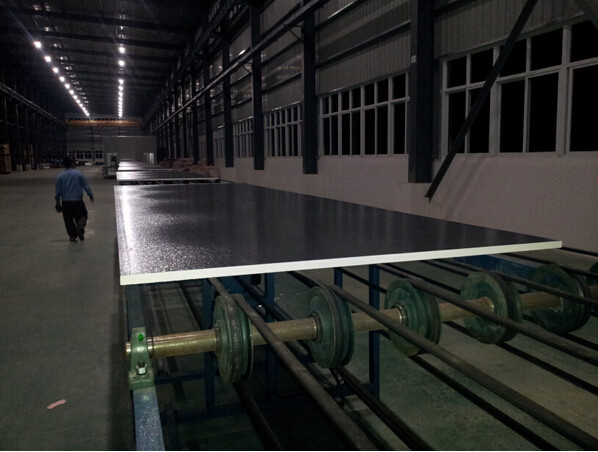

Phenolic Foam Preinsulated Duct Panel
CFC HCFC Free Environment Freindly
Fire Resistance Class 0
Good Thermal Efficiency
Description:
The Phenolic Foam Preinsulated Duct panel system is the most advanced and inovative energy saving system of centre air-conditioning ductwork available worldwide. The Ductwork is fabricated by using rigid phenolic insulation panels in length of 4m and provide the optimum energy saving and environmental solution in comparison with other types of ductwork. The system consists of Phenolic Pre-insulated Duct Panels, fabrication methods, jointing systems and a complete line of accessories to complete a system.
The Phenolic Foam Preinsulated Duct System is the recoganized leader in new generation pre-insulated ductwork. It offers the triple benefits to cut down the energy, carbon and cost whilst already having proved itself in its highly competitive marketplace. Being based on a phenolic resin it has outstanding fire resistance characteristics and extremely low smoke emission when expose to a flame source.
Parameters:
Item Unit Specification
Panel Structure Alu. /Foam/Painted steel sheet
Standard Panel Size mm 3950*1200*20
Alu. Foil / Painted steel sheet Thickness mm 0.04/0.17
Foam Density kg/m3 40
Thermal Conductivity w/m. K 0.03
Compressing Strength Mpa 0.25
Bending Strength Mpa 1.2
Combustibility Property Class 0 (BS476 Part 6 & 7)
Water Absorption % 1.9
Max Smoke Density % 2
Dimension Change % 0.3
Ambent Temperature ° C -250- +150
Maximum Allowable Wind Velocity m/s ? 12
Continuous Running Maximum Temperature ° C
? 70
Advantages:
Compared to traditional insulated Sheet Metal Ductwork:
Do it in one time, no lag insulation required, save the labor and cost.
Save the buiding space due to good insulation function
Lightweight, decrease the total weight of building
Decrease air leakage by using flange joint
Low thermal conductivity, no condensation, energy saving
Closed cell foam, good acoustic insulation
Fire-resistance, no smoke when expose to fire
Faced with aluminum foil, it's water proof and anti-microbial
CFC and HCFC free, environment friendly
