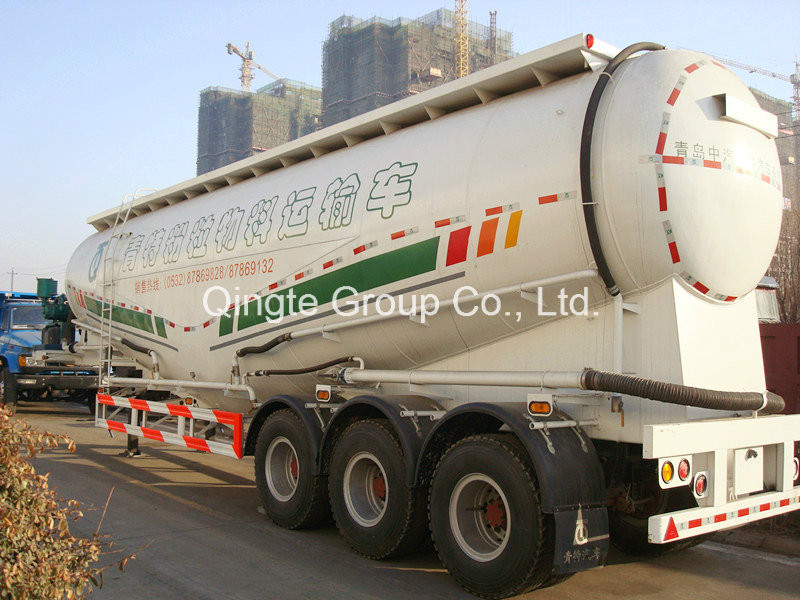

Powder Transport Trailer, Tank Semi Trailer (QDT5200GFLE1)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DAT, FAS, CPT, FCA, EXW

Payment Terms:L/C, T/T, D/P

Trademark:Qingte

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT5200GFLE1

Fuel:Diesel

Certification:ISO9000, TS16949, RoHS

Emission Standard:Euro 2

Condition:New

Chassis Type:EQ1208gj5

Engine Model:EQ8210-20

Curb Weight(Kg):9500

Loading Capacity (Kg):10305

Discharge Capacity/Power(Ml/Kw):5880/155

Total Mass (Kg):20000

Overall Dimension (Lwh)(Mm):9360X2495X3470

Front/Rear Overhang(Mm):1940/1860

Axle Base(Mm):4350+1300

Tank Volume (L):15457

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:500/Year

Product Description

Qingte Powder Transport Truck
(QDT5200GFLE1)

Key Features:

Learning from domestic and foreign adcanced design technology, the shell of tank adopts the VUTOCAD, PROE/ENGINNER and ANSYS system aid design with merits of reasonable structure, large capacity and low transportation cost.

The components come from international and national well-known brands which make the truck attactive and durable and reduce the cost-in-use or maintenance cost. The shell of tank is welded by specific automatic machine which guarantee the welding quality and nice weld joint.

The material cover is designed as a sliding cover with merits of light tare mass, easy operation and high safety and effiiciency. This structure also lowers the height of truck which improves the truck's trafficability.

The shell of tank can be made of high-strength steel which reduces the tare mass and creates the largest transport efficiency for customer. The shell of tank adopts crafts like sand blasting and uses high grade polyurethane varnish which has a strong adhesion force and can make the Painted surfaces beautiful, bright and persistent.

Chassis type	EQ1208GJ5
Engine Model	EQ8210-20
Curb weight	9500
Loading Capacity (Kg)	10305
Discharge capacity/Power(ml/KW)	5880/155
Total Mass (Kg)	20000
Overall Dimension (LWH)(mm)	9360X2495X3470
Front/rear overhang(mm)	1940/1860
Axle base(mm)	4350+1300
Tank Volume (L)	15457
Max Diameter and Length of Mixing Drum(mm)	8370x2490
