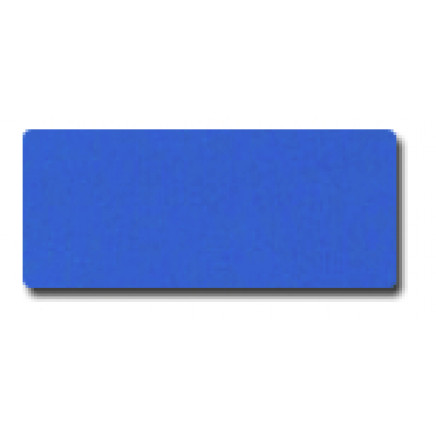

Powder Coating-Transparent Blue

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$4.0 - $6.0 / kg

Min. Order (kgs)	Unit Price
500.0	US $ 4/
50000.0	US $ 6/

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Apr 04, 2015 To Apr 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Transparent Blue

Color:Blue

Appearance:Powder

Main Raw Material:Epoxy

Level:Finish Coat

Method:Spray

Certification:ISO9001, SGS

Substrate:Iron

Components:Resin,Pigment,Curing Agents and Additives

Formation Mechanism:Spray and Bake

Expiration Date:1 Year

Coating:Professional

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:SENYIDA

Packing:Carton Packaging

Standard:SGS

Origin:Yangzhou, Jiangsu

HS Code:3206499000

Production Capacity:1000 Tons/Year

Product Description

Epoxy polyester powder coating
General introduction:

  Epoxy polyester powder coating is made of polyester resin and epoxy resin.It has a wide range of
applications.

Applicable occasions:

  appliance industry, lighting, steel furniture,machines and so on.

Product series:

The product includes standard and low temperature curing types.

We Provide high light (above 86%), plain glass(76-85%), matt (20-50%) and low light (below 20%) of the full-color powder coatings products.Gloss can also be controlled according to the user's requirements.

Packing:

Carton packaging, lined with double polyethylene bag, net weight 20 kg.

Storage requirements:

Store below 30 °C, ventilated, dry, clean room, not near the fire, heat, direct sunlight, open dumps is prohibited.Under this condition, the powder can be stable for 12 months, more than the storage period may be re-examined,such as the results meet the requirements, can still be used.

Powder physical properties:

Proportion : 1.1-1.8 (depending on the color and gloss )

Particle size distribution: 100% less than 125 microns(more than 85% between 60-90).

Liquidity:18~35mm.

Curing conditions:180°C,15minutes.

Average coverage:

8-10/kg, the membrane is 60?m(calculate by 100% utilization rate of powder coating).

Health and safety:

  This product is non-toxic. In the course of inhalation of dust should be avoided. The operators should wear appropriate dust mask and glasses.

Coating performance
Test items	Inspection standards		Test indicators

Impact resistance	ISO6272	GB/T1732-1993	50kg/cm
Cupping test	ISO1520	GB/T9753-1988	8mm
The adhesion (grid method)	ISO2409	GB/T9286-1998	0
Bending	ISO1519	GB/T6742-1986	2mm
Pencil Hardness	ASTMD3363	GB/T6739-1996	1H-2H
Salt spray test	ISO7253	GB/T1771-1991	>500 hours
Damp heat test	ISO6270	GB/T1740-1979	>1000 hours
Heat resistance	110°C/24 hours(white)		Good gloss retention,E?0.3-0.4

Annotate:	1.The above experiment uses 0.8mm steel with degreasing and rusting, and the coating thickness are 50-70 microns.
	2.The above coating performance may be lower as shiny and slightly lower.
