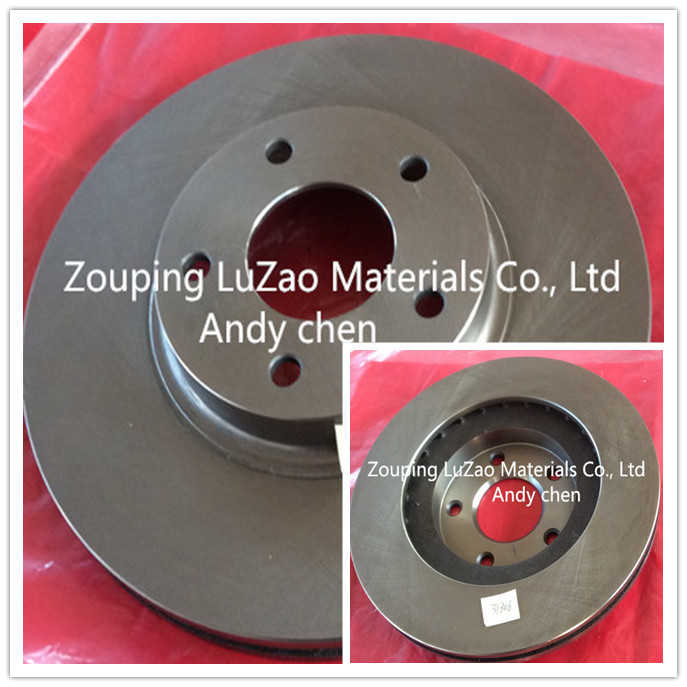

Populared Vented Front Axle ISO Ceitificated Car Brake Rotor of 31306

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Pieces

Trade Terms:FOB

Payment Terms:L/C, T/T

Trademark:Luzao

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:30306/ 40206-AL500

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Size:296mm*49.9mm

Hardness:170~210

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Port:FOB Qingdao

Export Markets:Global

Additional Info.

Trademark:Luzao

Packing:Neutral or Color, as Customer?s Request

Standard:ISO/TS16949 Certificate

Origin:Zouping, Shandong

HS Code:87083099

Production Capacity:100000 Pieces Per Month

Product Description

Vented Front Axle 31306 Brake disc Specifications:
1) Material: Gray iron HT250/G3000
2) Long service life & stable performance
3) 100% crucial dimension inspection and Balancing
4) 100% qualification
5) Low noise standard for casting is HT250, Standard for machining is SAE-j431.

We are professional manufacturer of brake discs and brake pads, enjoying an excellent reputation and keep a good relationship with many foreign companies, especially in Japan, Europe, America and Southeast Asia.
Looking forward to cooperating with you.

Key Specifications
Item	Brake Disc, braking disc,brake rotor,auto car brake
OE No.	40206-AL500
AIMCO NO.	321306
Position	Front axle
Size	296*49.9mm
Height	49.9mm
Outer Diameter	296mm
Centering Hole Dia	68mm
Pitch circle diameter	114.3mm
Brake disc thickness	24mm
Minimum thickness	22mm
Number of holes	5
Solid or vented	v
Hardness	170~210
Chemical composite	C:3.0-3.3% Si:1.9-2.2% Mn:0.7-1.2% P:<0.12% S<0.12%
Material	Gray iron HT250/G3000
Packing	Neutral package or color, as customer's request

Place of Origin	Zouping,Shandong,China Mainland
Payment terms	T/T or L/C
MOQ	100~300 PCS
Lead Time	20-30 days
Warranty	1~2years
Brand name	Luzao
Certificate	ISO 9001
HS Code	87083099
Export Markets	Global/Worldwide
