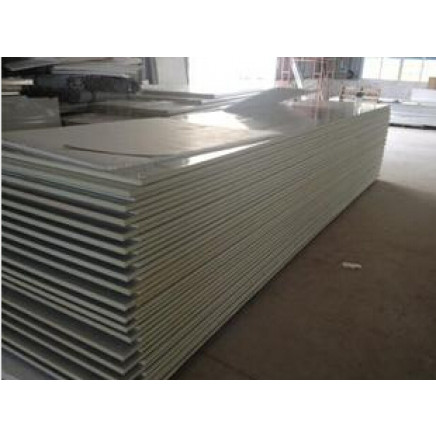

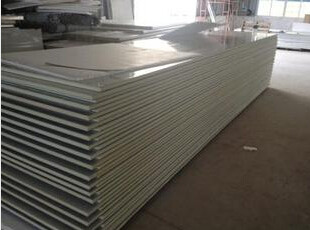

Polyurethane PU Foam Core Sandwich Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8.5 - $19.5 / Meter

Min. Order (Meter)	Unit Price
1000.0	US $ 8.5-19.5/ Meter

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 20, 2014 To Jul 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Size:2-10years

Export Markets:Global

Additional Info.

Trademark:Shengxin JKS

Packing:Seaworthy as Customer?s Requirement

Origin:Xiamen, China

Production Capacity:10000ton/Per Month

Product Description

Polyurethane PU Foam core Sandwich Panel

1, Excellent price and quality
2, Light weight
3, Easy installation
4, Heat and fire insulation

Product Description
Heat Insulation / Inflaming Retarding
EpsThickness: 50mm-200mm
Width: 950mm/1150mm/970mm
Steel Thickness: 0.25mm-0.60mm
Color: As request

This kind of Sandwich Panel has many features as follows:
Material:
1. The thickness of up/lower steel panel: 0.25-0.60mm colour-coated panel/zinc plate, hot galvanized plate/stainless steel panel
2. Core material---The density of this(mineral)
PU is: 38-45kg/m3
3. Side steel strip or not: 0.35-0.8mm galvanized plate
4. Width: 960mm, 950mm 970mm 1150mm
5. Length: Customized (<12m, because the length of the container is 12m)
6. Rock wool Thickness: 50mm, 75mm, 100mm, 150mm, 200mm
Packaging
1. PVC film outside the steel.
2. As customer's request.

EPS sandwich panel
Type	EPS-1150-75
Dimensions	Total thickness	75mm
	Width	1150mm
	Length	Less than 11.8m
External face	Material	PPGI
	Thickness	0.18-0.6mm
	Thickness of the zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	20 micron
	Color	According to the RAL
	Pattern	Nearly plain
Insulation	Optional foam Material	EPS PU Rockwool Paper honeycomb
	Thickness	50-200mm
	Density	EPS 12~25KG/M3; PU 36-45KG/M3; ROCKWOOL>110KG/M3;
	Thermal conductivity	0.045w/m2k 0.021W/M2K 0.0034W/M2K0
Internal face	Material	PPGI
	thickness	0.18-0.6mm
	Thickness of zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	7micron
	Pattern	Plain
Shipping terms
Package	Seaworthy or as customers' requirement
Delivery time	Within 15-20days after your prepaid
application	Purification workshop condole top , Industrial workshop and warehouse
