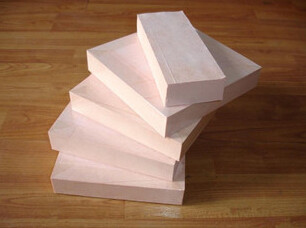

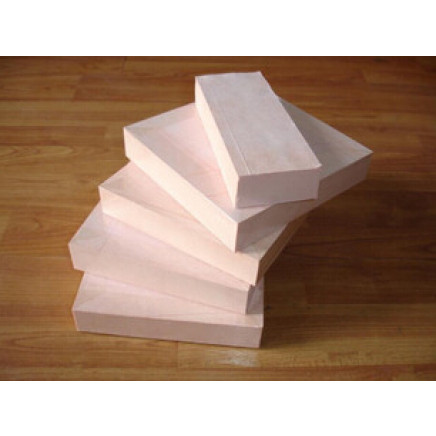

Phenolic Resin Wall Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$4.9 - $35.8 / Meter

Min. Order (Meter)	Unit Price
1000.0	US $ 4.9-35.8/ Meter

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 24, 2014 To Dec 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Usage:Warehouse, Villa, Dormitories, Temporary Offices, Workshop

Certification:ISO, CE, BV

Lenght:<=11.8m

Thickness:50-200mm

Export Markets:Global

Additional Info.

Trademark:SXGG

Packing:PVC Film

Standard:SGS, CE

Origin:China

Production Capacity:100, 000 Sqm/Month

Product Description

GB color steel composite phenolic aldehyde fireproofing and thermal insulation plate is a new-type thermal insulation material of fireproofing performance and low smoke production which will not be ignited; The core of plate is phenolic aldehyde foam plate and both profile sides are steel plates whith pro-coating. Color steel composite phenolic aldehyde fireproofing and thermal insulation plate combines the advantages or traditional material insulation performance and compressive performance and compressive performance of the place are improved; All these make color steel composite phenolic aldehyde fireproofing and thermal insulation plate an ideal choice for enclosing system for high-ends and energy saving buildings. In addition, the phenolic aldehyde foam laminboare is water proofing, distortion tree, toxicity free and free form fire and has long service life and the flame class can reach Grade A.

Core materials-The color steel phenolic aldehyde foam fireproofing and thermal insulation plate uses high-performance phenolic aldehyde foam;

Environmentally friendly-color steel composite phenolic aldehyde foam fireproofing and thermal insulation plate is free from
Formaldehyde and will not be corroded by microorganism and can be used in circulation.

Building function: We will recommend the proper panel type and the bes technical solution for you according to it
Fire resistance requirement of the project
Plate specification: Length*Wide*Thickness, peak height
Types of core material for your choice: Phenolic, PU, XPS
Density: By your requirment

Steel sheet material: Prepainted steel plate, aluminum plate and kraft paper for your choice
Panel color: For special colors, sample panels and negotiation are neessary.
Coating type: Polyester type, silicone modified polyester type, highly weather-resistant type and fluorocarbon type

Surface shape: Ripple effect, plat effect, relief effect and square wave effect.
Base panel thickness: 0.4-0.8mm
Base panel treatment: Hot dip galvanized, Al-Zn coated

Item	steel foam wall sandwich panel
Material	Core material:modified phenolic foam Metal surface:color steel
Specification
1. Thickness: 20mm – 200mm
2. Width:600mm–1200mm
3. Length:1000mm–6000mm
4. Compressive Strength: 150kPa - 1000kPa
5. Flame Retardant:B1

Technical Data
Density	40-100kg/mł
Thermal conductivity	0.023-0.038W ( m.k )
Compression strength	0.2-0.45Mpa
Bending strength	1.2-1.78Mpa
Dimensional Stability	?1.5%
Water absorption	?3% ( v/v )
[SDR]Smokedensity rating	?1
Working temperature	-150 °C -150 °C
Flame rating	GB8624-1997:Grade A GB8624-2006:Grade B-s1 , d0,t1
Formaldehyde emission	?1.5ml/L
Maximum allowable wind speed	15M/S
Working pressure	?1500Pa
Leakage volume,pressure and deformation	Qualified
Fire resistance	> 1.6h
Acid and alkali resistance	Soak at roomtemperature,no change
Anti-fungal	No plate
