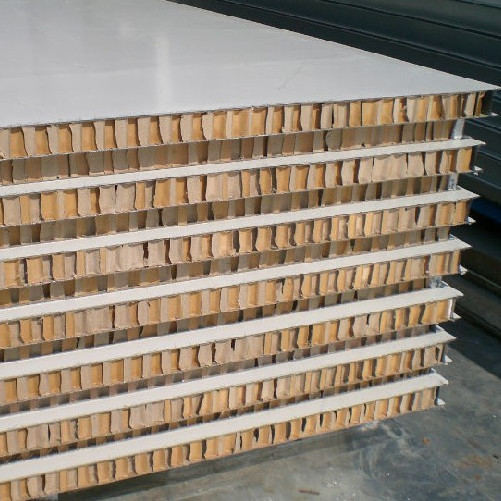

Paper Honeycomb Sandwich Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:20 Tons

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Trademark:SXGG

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Export Markets:Global

Additional Info.

Trademark:SXGG

Packing:Seaworthy as Customer?s Requirement

Origin:Xiamen, China

Product Description

Specification
1. Paper honeycomb sandwich panel
2. Brand name: SXGG
3. Place of original: Xiamen, China
4. Nomal thickness: 50mm
5. Normal width: 950mm /1150mm
6. Normal length: 1000mm-3600mm(ajusted to specific project )
7. Application: Clean constructions like electricity, Biology, food, medicine, hospitals, military, etc.

Specification:
1. External steel panel
Thickness: 0.4mm ~ 1.2 mm
Basic steel: Galvanized steel, galvalume steel and stainless steel
Finish: Galvanized, Powder-coated with PE/HDP/PUDF, Stainless steel with brushed/mirrored.

2. Insulation material
Type: Paper honeycomb,
Aperture: 8mm, 16mm, 32mm
3. Panel
Width (mm): 950 1150(the effective width)
Thickness (mm): 50
Length (mm): Tailored as per client's requirement due to continuous forming production.

Product features:
The sandwich panels are new multi-purpose construction material.
1. Heat and sound insulation. Temperature suitable for PU ranges from -200 centigrade to 150 centigrade.
2. Light weight, water-proof, Good chemical resistance and seismic resistance, anti-corrosion etc.
3. Energy conservation, environment protection, economical, good structure, easy to installation.

Paper Honeycomb sandwich panel
Type	Paper Honeycomb Sandwich panel All the screw and accessories are available
Dimensions	Total thickness	50
	Width	950mm 1150mm
	Length	Less than 11.8m
External face	Material	ppgi
	Thickness	0.18-0.6mm
	Thickness of the zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	20 micron
	Color	According to the RAL
	Pattern	Nearly plain
Insulation	Optional foam Material	EPS PU Rockwool Paper honeycomb
	Thickness	50
	Density	280g/m2
	Thermal conductivity	0.045w/m2k 0.021W/M2K 0.0034W/M2K0
Internal face	Material	ppgi
	thickness	0.18-0.6mm
	Thickness of zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	7micron
	Pattern	Plain
Shipping terms
Package	Seaworthy
Delivery time	Within 15-20days after your prepaid
application	Purification workshop condole top , Industrial workshop and warehouse

Additional Information
