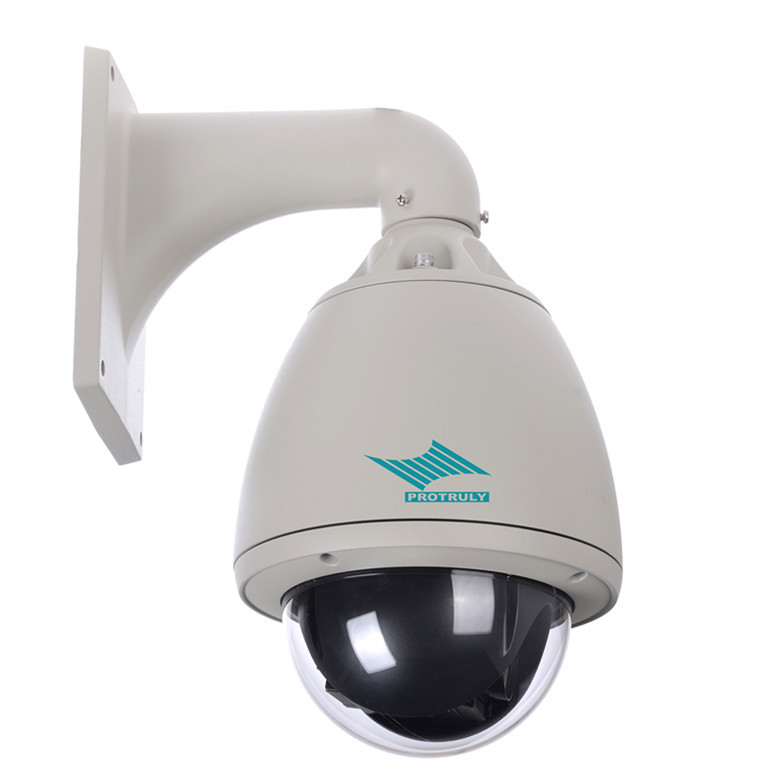

Outdoor CCTV High Speed PTZ Dome CCD Camera with CE and FCC Certificate (CeD89-27)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Outdoor CCTV High Speed PTZ Dome CCD Camera with CE and FCC Certificate (CeD89-27)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:4 Pieces

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:PROTRULY / OEM

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CeD89-27

Type:Analog Camera

Sensor:CCD

Speed:High-speed Dome

Technology:Pan / Tilt / Zoom

Feature:Waterproof / Weatherproof

Horizontal Resolution:650tvl

Housing Protection:IP66

Signal Model:PAL/NTSC

Focus Length:4.8 ~105.6mm

Optical Focus:22X/27X/30X/36X/270X/360X (Optional)

OSD:Full -Screen Chinese / English Menu

Export Markets:Global

Additional Info.

Trademark:PROTRULY / OEM

Standard:CE/FCC/ROHS

Origin:China

HS Code:8525801390

Production Capacity:500PCS / Week

Product Description

PROYRULY Dome Ccd Camera

HOT:
1. Real Auto-Iris compared with Other manufacturer.
2. All our high speed domes can match public network module ,it constitute IP dome,our company can buy netwaork module on your behalf .

Dome Ccd Camera Feature:

> Outdoor 6 inch high speed dome camera, Metal double cover.
> Use high quality components, high&minute sub-step into TV, long life Conductive slip ring, High-quality belts, Stable operation, high reliability.
> Stable running, none dithering under any speed.
> Cover use high intension Aluminum material, with defend impact, shielding and heat dissipation function, defend levels reach to IP66.
> Internal setting data not lose when electronic cut.
> Triple lightning protection technology, effectively raising the speed dome mine and anti-jamming capability.
> It uses all-digital control, simple and ingenious design, discretional quickly locate and continuous follow-up scan, it has automatic tracking function, make smart surveillance of all-round, non-blind spot
> It can automatically adapt to the environment and target distance changes in light and dark, High reliability and long-term stable operation, without maintenance.
>High speed PTZ camera is compatible with a variety of control protocols, so it can support a variety of popular platforms.

Dome Ccd Camera Special function:
Outdoor CCTV High Speed PTZ Dome CCD Camera with CE and FCC Certificate (CeD89-27)

Application places:
Applicable to large-scale industries, active target object surveillance.
Such as: Power systems, telecommunications sector, banking security, factories and enterprises, intelligent buildings, intelligent community, urban road monitoring, airports, stations and other monitoring occasions.

Features of Sony EFFIO-E:
1/3 "Sony EX-VIEW HAD II CCD with high-quality and high- sensitivity. Up to 650 tvl of horizontal resolution, high-definition images, excellent low light performance.
A. Range of AWB. Is 1.8 ~ 10K, it can monitor environment with a variety of shine.
B. Digital WDR...Excellent color reproduction (ATR Auto Levels adaptation).
C. 2D DNR...In the case of low light, obtained clean and delicate images.
D. 8 language OSD menu, powerful, high brightness compensation, strong light inhibition.

Outdoor CCTV High Speed PTZ Dome CCD Camera with CE and FCC Certificate (CeD89-27)

Pictures of Office,Factory,Production,QC.,Packing

Outdoor CCTV High Speed PTZ Dome CCD Camera with CE and FCC Certificate (CeD89-27)

Model No	CeD89-27
Image Sensor	1/3" SONY CCD
Signal Model	PAL/NTSC
Horizontal Resolution	650TVL
Effective Pixel	PAL: 976(H)X582(V) NTSC; 976(H)*494(V)
Minimum Illumination	0LUX, Color to B/W, IR sensor, IR-CUT
S/N Radio	? 60dB(enhanced)
Backlight Compensation	on/off
White Balance	Auto
Electronic Shutter	1/50~1/12000s
Focus Length	4.8~105.6mm
Optical Focus	27X
Focus	Auto/manual, take high-performance DSP to realize complete digital and ultra-high speed focus function
Presets	256
Pattern Track	4groups, each can record 200 actions
Tour Track	8 groups, total 30 presets can join cruise, can setting the presets' residence time
Other Scan	4 groups , support horizontal scan , deuce area scan , scan random
Rotation Range	horizontal 360° unlimited rotation, vertical 180° , auto reversal
Rotation Speed	horizontal & vertical min 0.01, max 300/s
Communications	RS-485, PELCO D, PELCO P
OSD.	Full-screen Chinese/english menu
Special function	AWB, MASK, DNR, Strong light inhibition, SWDR
Temperature	Built-in
Power Supply	DC12V/4A
Mater	Aluminum shell, waterproof IP66
Work Environment	-20. ~+50 (select temperature control accessories), less than 95%RH
