Original Power Saving GPS Tracker for Persons and Pets (PT30)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB

Payment Terms:T/T, Paypal, Western Union

Trademark:Neutral

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:PT30

Type:GPS Tracker

Use:Automotive&Hand Held

Operating Principle:Mixed Type

Port Number:Multichannel

Model:Set-real Type

Screen Size:No

Carrier Frequency:Dual-Frequency

Chip:Ublox7

Brand:Topshine

Certification:CE+RoHS

Input Voltage:DC 9V~36V/1.5A

Export Markets:Global

Additional Info.

Trademark:Neutral

Packing:Neutral Color Box

Standard:quad-band

Origin:China

HS Code:8517691090

Production Capacity:10, 000 Sets/Month

Product Description

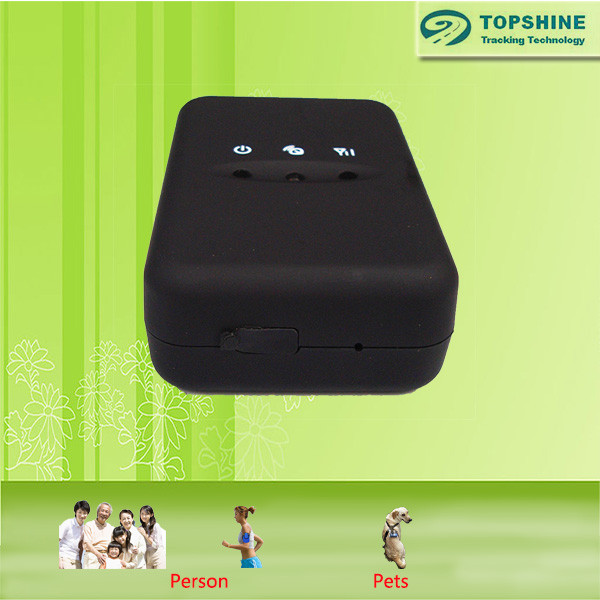

Original manufacturer GPS Tracker For Persons and pets PT30

PT30 is a personal remote position device, small size, build-in battery, easy to use. PT30 can be used as an emergency cellular phone and locator. It allows speed dialing of 3 numbers for 2-way voice conversation. PT30 sends alert and call the pre-defined number for immediate assistance. It is suitable for the care&protection&rescue of the elderly, children, patients, wild area explorer, tourists or pets etc. PT30 has good sensitivity and stable performance, tracking by web-based platform or by SMS commands.
Main Features:
1. Small size, built-in antenna, easy carry and hide
2. Quick dial button for 3 calls, talking as a mobilephone
3. Very low power consumption, continous working longer than 24hours, standby time more than 7 days!
4. Tracking via SMS or GPRS(TCP/UDP)
5. Real time GPS locating;
6. Set automatic tracking by distance or time interval
7. Get actual location name via SMS or internet
8. Get position GoogleMap link via SMS
9. SOS panic button
10. Geo-fence control, over speed alert
11. Built-in motion sensor for power saving
12. Mileage report
13. No installation, small and easy to carry
Applications:
For the care&protection&rescue of the elderly, children, patients, wild area explorer, tourists or pets etc.
Complete Set:
Standard Package:
Main unit
Car charger
Travel charger
Earphone
USB cable

Items	Specifications
Dimension	775125mm
Weight	96g
ChargingVoltage	DC 4.5V~5.5V/850mA(Mini USB port)
Power consumption	Active mode(peak) < 1.0A Active mode(avg.) < 300mA
Operating Temperature	-30~+75 Celsius degree
Humidity	Up to 75% non-condensing
External Antenna	Connected via 50 ohm coax connector
External SIM Card	Connected via SIM card connector
Button	1SOS and 1poweron/off
Microphone	Optional
Transmit Power	Class 4(2W) for E-GSM 900 and 850 Class 1(1W) for DCS 1800 Class 1(1W) for PCS 1900
Sensitivity	-104dBm minimum for E-GSM 900 AND 850 -102dBm minimum for DCS 1800 -102dBm minimum for PCS 1900
GPSChip	LatestGPSSIRF-StarIIIchipset
GPRS	Multi-slot Class 8(4Rx, 1Tx., 5slot Max.) Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4) Maximum download speed is 85.6kbps Maximum upload speed is 21.4kbps
Speech Codec	Triple rate Codec Half rate_ETS 06.20 Full rate_ETS 06.10 Enhance full rate_ETS 06.50/06.06/06.08

Packing Measures:
Neutral	Dimension (mm)	Weight (KG)	Capacity
Box	165x155x50	0.25	1 set
Carton	470x340x310	9	30 sets
