Original GPS Tracker for Persons and Pets PT30

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$45.0 - $55.0 / Set

Min. Order (Sets)	Unit Price
1.0	US $ 55/ Set
1000.0	US $ 45/ Set

Trade Terms: FOB, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Western Union

Price Valid Time:From May 16, 2014 To Sep 01, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:PT30

Type:GPS Tracker

Use:Hand Held

Screen Size:None

GPS Module:Sirf3

GPS Sensitivity:-159dBm

GSM Module:Quectel M35

GSM Frequency:Quad Band 850/900/1800/1900 MHz

Advanced:Customizable Sos Emergency Numbers

Export Markets:Global

Additional Info.

Trademark:OEM

Packing:Neutral Color Box

Standard:quad-band

Origin:China

HS Code:85269110

Production Capacity:10, 000 Sets/Month

Product Description

Original manufacturer GPS Tracker For Persons and pets PT30

PT30 is a personal remote position device, small size, build-in battery, easy to use. PT30 can be used as an emergency cellular phone and locator. It allows speed dialing of 3 numbers for 2-way voice conversation. PT30 sends alert and call the pre-defined number for immediate assistance. It is suitable for the care?otection&rescue of the elderly, children, patients, wild area explorer, tourists or pets etc. PT30 has good sensitivity and stable performance, tracking by web-based platform or by SMS commands.
Main Features:
1. Small size, built-in antenna, easy carry and hide
2. Quick dial button for 3 calls, talking as a mobilephone
3. Very low power consumption, continous working longer than 24hours, standby time more than 7 days!
4. Tracking via SMS or GPRS(TCP/UDP)
5. Real time GPS locating;
6. Set automatic tracking by distance or time interval
7. Get actual location name via SMS or internet
8. Get position GoogleMap link via SMS
9. SOS panic button
10. Geo-fence control, over speed alert
11. Built-in motion sensor for power saving
12. Mileage report
13. No installation, small and easy to carry
Applications:
For the care?otection&rescue of the elderly, children, patients, wild area explorer, tourists or pets etc.

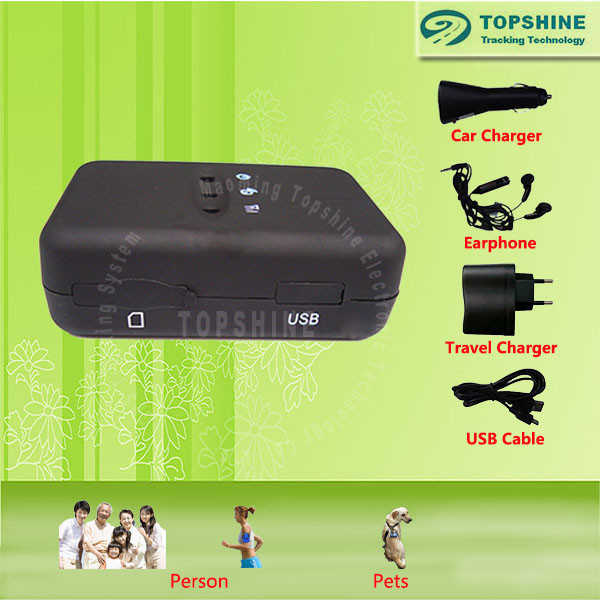

Complete Set:
Standard Package:
Main unit
Car charger
Travel charger
Earphone
USB cable

Service:
Two free web based tracking platforms in our server, for computer and any mobile phone.
Two year warranty
Lifetime after sales service
Lifetime technical assistance
Customization
Comapany Labeling

Items	Specifications
Dimension	775125mm
Weight	96g
ChargingVoltage	DC 4.5V~5.5V/850mA(Mini USB port)
Power consumption	Active mode(peak) < 1.0A Active mode(avg.) < 300mA
Operating Temperature	-30~+75 Celsius degree
Humidity	Up to 75% non-condensing
External Antenna	Connected via 50 ohm coax connector
External SIM Card	Connected via SIM card connector
Button	1SOS and 1poweron/off
Microphone	Optional
Transmit Power	Class 4(2W) for E-GSM 900 and 850 Class 1(1W) for DCS 1800 Class 1(1W) for PCS 1900
Sensitivity	-104dBm minimum for E-GSM 900 AND 850 -102dBm minimum for DCS 1800 -102dBm minimum for PCS 1900
GPSChip	LatestGPSSIRF-StarIIIchipset
GPRS	Multi-slot Class 8(4Rx, 1Tx., 5slot Max.) Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4) Maximum download speed is 85.6kbps Maximum upload speed is 21.4kbps
Speech Codec	Triple rate Codec Half rate_ETS 06.20 Full rate_ETS 06.10 Enhance full rate_ETS 06.50/06.06/06.08

Packing Measures:
Neutral	Dimension (mm)	Weight (KG)	Capacity
Box	165x155x50	0.25	1 set
Carton	470x340x310	9	30 sets
