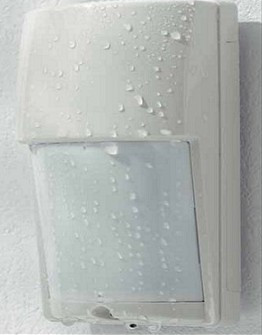

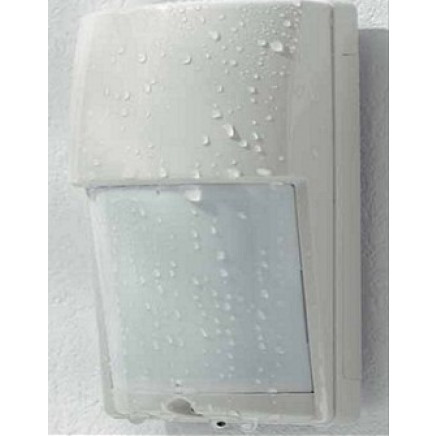

Optex Sensor, Selectable Detection Pattern Outdoor Passive Infrared Motion Detector

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:500 Pieces

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Paypal, Money Gram, Western Union

Trademark:OPTEX

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LX402

Saling Points:Experienced Staff & Good Price

W.T.:0.08kg/PCS

Type:Sensor

Installation Mode:Contact Type

Application:Home, Industry, Communication

Usage:Anti-Theft

Export Markets:Global

Additional Info.

Trademark:OPTEX

Packing:CTN

Standard:CE, UL

Origin:China

HS Code:8531100000

Production Capacity:1000PCS Per Week

Product Description

MODEL: LX402

Welcome to visit our company for more details thanks!

Description:
Weatherproof and specifically designed for short-range outdoor event-driven CCTV applications
Small size and attractive finish ensures that will blend into even most sensitive areas
Wide angle and long-range options offer flexibility and advanced features such as sensitivity and range adjustment
Built-in light sensor provides day and night modes and further adds to flexibility
Ingenious mirror assembly allows sensor to provide pet alley configuration, while inclusion of OPTEX patented double conductive shielding ensures sensor is highly resistant to interference from foreign light sources such as sun and car headlights
Patented double conductive shielding
Selectable detection patterns (pet alley or multilevel)
Area masking strips
Sensitivity selection switch (high, mid and low)
Selectable pulse count (test or 2)
Day and night modes
Standard model: 12x15m
Detection model: Passive infrared
Detection area: 40x50ft (12x15m) 120° Wide
Coverage:
Multilevel area: 40 zones
Pet alley area: 18 zones
Mounting height: Multilevel area: 8.3ft (2.5m) (maximum)
Pet alley area: 4 to 5ft (1.2 to 1.5m)
Detection speed 1 to 3.3ft/second (0.3 to 1.0m/second)
Sensitivity adjustment selectable: 3 position (H, M and L)
LED indicator: LED lights during detection
Alarm period: 2± 1 second (delay timer)
Alarm output: NC. NO 28V DC 0.2A (maximum)
Tamper switch: Opens when cover removed
Pulse count: 2 (205 second) or TEST (1pulse)
Day/night mode adjustment: 10 to 100, 000 lux (approximately)
Warm up period: 60 second (approximately)
Power input voltage: 10.8 to 13.2V DC
Current draw: 25mA (maximum)
Mounting: Wall (indoor/outdoor)
Operating temperature: -20 to 50° C
Environment humidity: 95% (maximum)
Weight: 6.0oz (170g)
IP rating: 54
Accessories: Masking strips, mounting screw and sponge
