OEM/ODM IR 35m CCTV Cameras Suppliers (BQL/HeM89-10)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:2 Pieces

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:OEM/Protruly

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Technology:Pan / Tilt / Zoom

Style:Mini Camera

Type:PTZ Camera

Sensor:CCD

Horizontal Resolution:650tvl

Kind:Auto/Manual

Feature:High Definition, Mini Size, Vandal-proof, Auto BLC, Swdr,Defog Awb, Mask, Dnr, Strong Light Inhibition

IR Distance:35m

OSD:Whole Screen Chinese/English Menu

Lens:Megapixel / 3.8-38mm

Effective Pixel:PAL:976(H)X582(V) NTSC:976(H)X492(V)

Image Sensor:1/4" Sony CCD

Iris:Auto-Iris

Export Markets:Global

Additional Info.

Trademark:OEM/Protruly

Standard:CE, FCC, ROHS, 3C

Origin:China

HS Code:8525801390

Production Capacity:500PCS /Week

Product Description

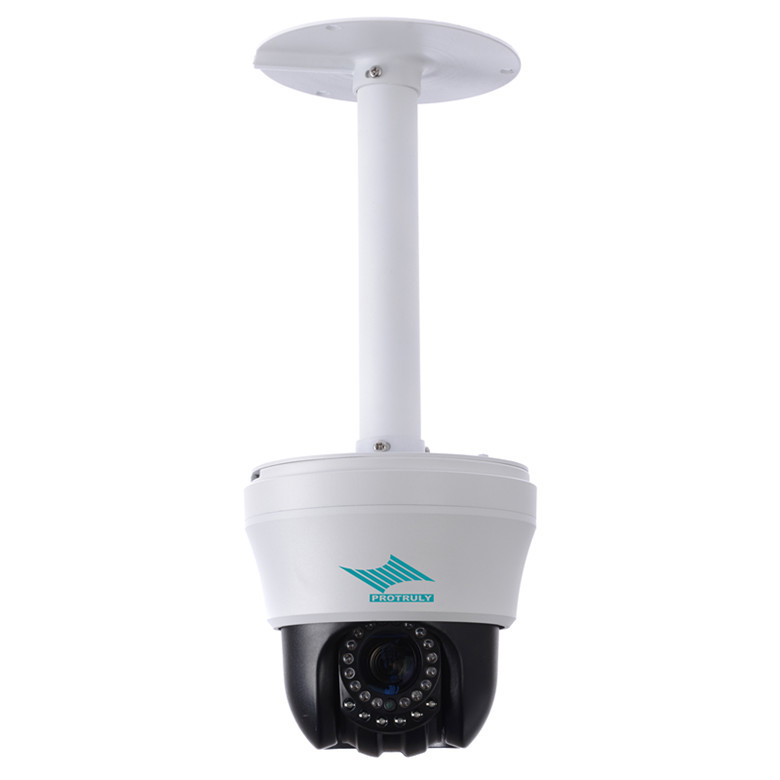

Protruly 650tvl 1/4" Sony CCD IR 35m Auto-Iris indoor 4 inch mini Cctv Cameras Suppliers High speed dome camera with FCC and CE Certificate

Hot: 1. Megapixel 2. Auto-Iris

Main Function: AWB, MASK, DNR, Strong light inhibition, Mirror, WDR, DEFOG

CCTV Security camera Advantage:
1. It adopts full digital control, mechanical design is simple, Can be arbitrary positioning and continuous tracking scanning, realize smart surveillance of all-round, non-blind spot.
2. It can automatically adapt to the environment and target distance changes in light and dark, High reliability and long-term stable operation, without maintenance.
3. Beautiful appearance, easy to install wiring, and so a number of advantages.

CCTV Security camera Application places:
All walks of life indoor large area, moving target surveillance.
Such as: Indoor public system, subway, the telecommunications sector, banking security, office buildings, intelligent buildings, intelligent plot, airports, railway stations and other monitoring.

CCTV cameras suppliers Feature:

> Mini high speed dome camera, Metal double cover.
> Use high quality components, high&minute sub-step into TV, long life Conductive slip ring, High-quality belts, Stable operation, high reliability.
> Stable running, none dithering under any speed.
> Cover use high intension Aluminum material, with defend impact, shielding and heat dissipation function, defend levels reach to IP66.
> Internal setting data not lose when electronic cut.
> Triple lightning protection technology, effectively raising the speed dome mine and anti-jamming capability.

Office, Factory, Production, QC., Packing

Picturers of items

Technical program about SONY DSP
EFFIO (Enhanced Features and Fine Image Processor. It has high resolution, high SNR and excellent Color reproduction). It was came into the market by sony and changed into three versions later, in fact, it has four versions: Effio, Effio-E, Effio-P, Effio-S

Features of EFFIO-S:
1/3 "SONY EX-VIEW HAD II CCD with High-quality and high-sensitivity. Up to 650 tvl of horizontal resolution, high-definition images, excellent low light performance
Range of AWB, it can monitor environments with a variety of shine
WDR, apply to environment with complex ray: Doors
2D and 3D DNR., Frame accumulation mode, The minimum illumination is 0.00002lux
Multi-language OSD to meet different customer needs, enhanced DSP.

4" Indoor 35m Infrared mini high speed dome series (H series)
Madel No.	BQL/HeM89-10
Image Sensor	1/4" SONY CCD
Signal Model	PAL/NTSC
Horizontal Resolution	650TVL
Effective Pixel	PAL:976(H)X582(V) NTSC:976(H)X492(V)
Filter	Double filter, IR-CUT
Minimum Illumination	0Lux, Color to B/W
Application Environment	Indoor
Installation way	histing mounted , wall mounted, Ceiling Mount
Housing protection	IP50
S/N Radio	? 50dB ( enhanced )
Backlight Compensation	On/Off
White Balance	Auto
Electronic Shutter	PAL:1/50~1/10000 seconds, NTSC:1/60~1/12000 seconds
IR distance	IR LED 30m
Lens	Megapixel / 3.8-38mm
Optical zoom	10X
Iris	Auto-Iris
Digital zoom	Optional 10X
Focus	Auto/manual , take high-performance DSP to realize complete digital and ultra-high speed focus function.
Preset	255
Pattern scan	4 groups , each can record 200 actions
Tour scan	4 groups ,every group have16 presets can join cruise,can setting the presets'residence time
Other Scan	4 groups, support horizontal scan, deuce area scan, scan random
Rotation Range	Horizontal 360° unlimited rotation , Vertical 180° , auto reversal
Rotation Speed	Horizontal & Vertical Min 0.01°/s, Max 300°/s
Camera protocols	supported SONY or Samsung
Communications	RS485, PELCO D, PELCO P
Baud Rate	2400/4800/9600/19200
Dome address	255
Camera menu	8 languages
OSD	Whole screen Chinese/English menu
Special function	WDR,DEFOG, AWB,MASK,DNR,Strong light inhibition,Mirror
Power Supply	DC12V/1.5A
Material	Aluminum shell
Work Environment	-20 Celsius degree ~+50 Celsius degree (select temperature control accessories), < 95%RH
