OEM IR 120m IP66 CCTV Security Camera (GeJ89-27)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:2 Pieces

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:OEM/PROTRULY

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:GeJ89-27

Technology:Pan / Tilt / Zoom

Style:Mini Camera

Type:PTZ Camera

Sensor:CCD

Horizontal Resolution:540tvl

Kind:Auto/Manual

Feature:High Definition, Mini Size, Auto BLC, Awb, Mask, Dnr, WDR, Swdr, Defog

IR Lamp Distance:120m

OSD:Full-Screen Menu

Mater:Aluminum Shell, Waterproof IP50

Focus Length:3.9mm~85.8mm

White Balance:Auto/Manual

Effective Pixel:PAL:752(H)X582(V) NTSC:768(H)X494(V)

Filter:IR-Cut

Iris:Auto-Iris

Export Markets:Global

Additional Info.

Trademark:OEM/PROTRULY

Standard:FCC, CE, 3C, RoHs

Origin:China

HS Code:8525801390

Production Capacity:500PCS/Week

Product Description

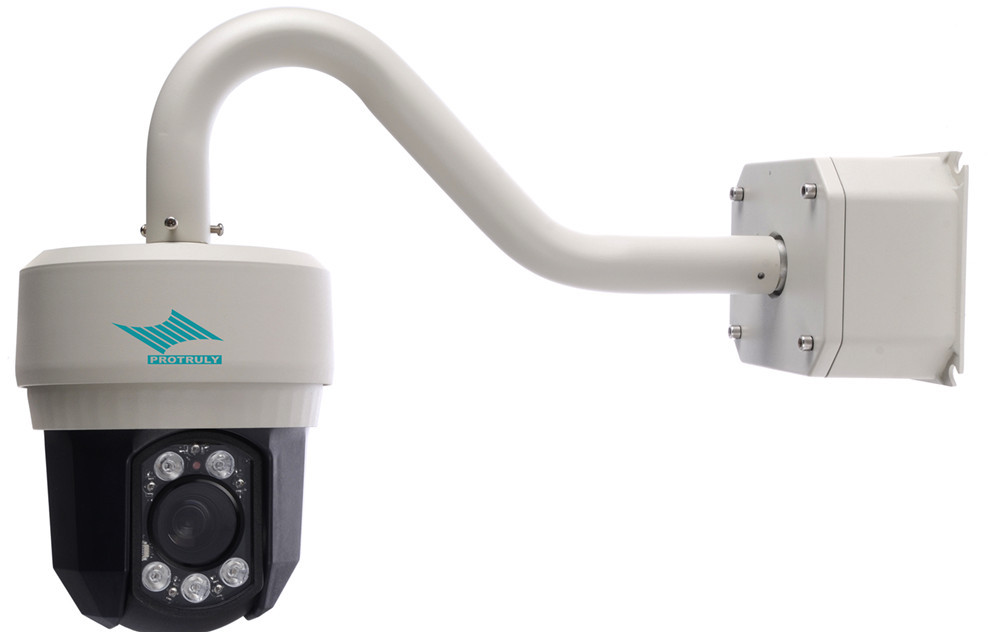

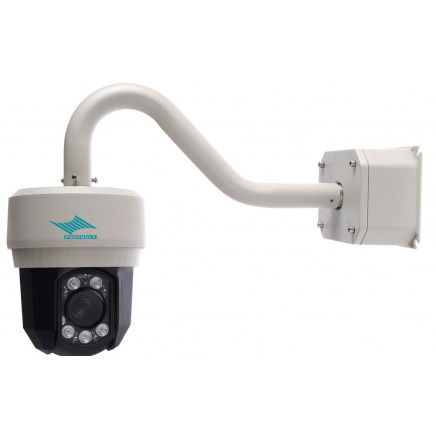

Protruly mini IP66 ir 120m AUTO-IRIS indoor high speed dome CCTV Security Camera with FCC and CE Certificate

Special function: DEFOG AWB, MASK, DNR, Strong light inhibition, Mirror,

Feature:

> Horizontal 360 ° , continuous rotation, no blind spot.
> Double Case protect Camera device, continuing work temperature lower than 50º C.
> Use high quality components, high & minute sub-step into TV, long life conductive slip ring, high-quality belts, stable operation, high reliability.
> Adopted domestic the most advanced "zoom and optics sync" way control IR lamp, in effect solve "electric torch" domino effect, original creation intelligent control IR lamp on and off, utilize IR light-source in reason
> Design special camera, IR lamp sub-depot separate system, no sphere case glisten, fogging malady
> Constant voltage constant current circuit design, ensure IR lamp work in long time, long life. IR lamp life lasting to above 20000hours
> Low Power, IR effective distance 120 meters

Protruly CCTV Security Camera Application places:

Such as power systems, telecom departments, bank security, mines, intelligent building, intelligent community, city road monitoring, airports, railway stations, etc as security monitoring situation, and the fire monitoring system of image monitoring equipment.

Protruly CCTV Security Camera System:
Infrared intelligent high speed dome camera combines various control protocol, can support a variety of popular system platform. With other system matching, each system connection and method of use not identical, here do not specify, please contact the relevant system manufacturer or dealer contact to get necessary information.

Technical program about Sony EFFIO:
EFFIO (Enhanced Features and Fine Image Processor. It has high resolution, high SNR and excellent Color reproduction). It was came into market by Sony. It had four versions: Effio, Effio-E, Effio-P, Effio-S.

Features of EFFIO-S:
1/3 "Sony EX-VIEW HAD II CCD with High-quality and high-sensitivity. Up to 650 tvl of horizontal resolution, high-definition images, excellent low light performance
Range of AWB, it can monitor environments with a variety of shine
WDR, apply to environment with complex ray: Doors
2D and 3D DNR., Frame accumulation mode, The minimum illumination is 0.00002lux
Multi-language OSD to meet different customer needs, enhanced DSP.

Model No.	GeJ89-27
CCD	1/4 ?CCD
Signal mode	PAL/NTSC
Horizontal resolution	540TVL
Effective Pixel	PAL:752(H)×582(V) NTSC:768(H)×494(V)
Minimum illumination	0LUX,color to B/W, IR sensor, with IR-CUT function
S/N radio	?60dB
Backlight compensation	On/Off/ Strong light inhibition
White balance	Auto/Manual
Electronic shutter	PAL:1/50~1/10000seconds NTSC:1/60~1/12000seconds
Focus length	3.9mm~85.8mm
Filter	IR-CUT
IRIS	AUTO-IRIS
Optical focus	27X
Focus	Auto/manual,take high-performance DSP to realize complete digital and ultra-high speed focus function
presets	256
Pattern Track	4 groups, each can record 200 actions
Tour Track	Every group have 16 presets can join cruise,can setting the presets' residence time
Other Scan	Support horizontal scan ,deuce area scan ,scan random
Rotation Range	horizontal 360° unlimited rotation,vertical 180°,auto reversal
Rotation Speed	Horizontal and vertical: minimum 0.01°/s, maximum 300°/s (Can automatically adjust the multiples according to the Lens zoom)
Communications	PELCO D,PELCO P
Special function	DEFOG AWB, MASK, DNR, Strong light inhibition, Mirror,
OSD	Full-screen menu
Temperature	Built-in
IR Lamp Distance	120M ,Auto-Switch the IR distance according to the focus of camera or force to turn on/off the IR lamps through software
Power Supply	DC12V/4A
Mater	Aluminum shell ,waterproof IP50
Work Environment	-10°C--70°C(Select temperature control accessories),<95%RH
