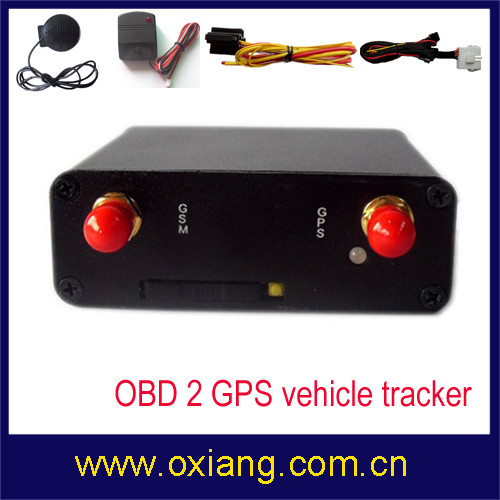

OBDII GPS Tracker support Fuel Control / Speaker / Shock Sensor
Function List:
Master No. And Authorize No.:
Only authorized number of tracking device before they can locate and control. Absolutely guarantee the safety of vehicles. Automatically upload data like vehicle location data, hardware information (such as the ACC state, the state of the door, voltage of vehicle battery, driver time, etc. ). (Can be set by time or by distance upload data)
Remote Listen In:
External high sensitivity microphone. Users can monitor the car remotely via phone.
Two-way Communication:
Owner or monitor can talk with driver in the vehicle.
Remote Fuel Control:
Tracking device with a vehicle-specific fuel control installation. When abnormal occur. User can control fuel of vehicle by computer or mobile phone. So that vehicle can not continue running.
Remote Center Lock:
User can remote control vehicle's center lock, locked and unlocked the door
SOS:
Tracking device with an emergency alarm button. Can be installed on the cover. When the event of an emergency.
Press the button will send alarm to monitoring Center and to authorize No.
Over Speed Alarm:
Tracking device can detect vehicle's speed. If vehicle's speed exceed setting of device.
It will send the alarm to monitoring center and authorized No...
Towing Alarm:
Towing means a vehicle in the parking because of the movement caused by external forces(such as the police towing). Tracking device can detect that...
It will send the alarm to monitoring center and authorized No...
Parking Alarm:
User can set the maximum parking time. If a vehicle exceeds setting,
It will send the alarm to monitoring center and authorized No...
Tried Driver Alarm:
In order to the security needs of the driver, it can configured driver time. If the driver did not rest over time
It will send the alarm to monitoring center and authorized No...
Main Power Off Alarm:
If the illegal removal of tracking device from vehicle
It will send the alarm to monitoring center and authorized No...
Anti-Steal Alarm:
In Armed state. If someone trespass
It will send the alarm to monitoring center and authorized No...(Can be compatible with the original car alarm system).
Low Power Alarm:
If vehicle battery voltage is too low.
It will send the alarm to monitoring center and authorized No...
Vibration Alarm:
Tracking device have Vibration sensors, when the vehicle is shaken,
It will send the alarm to monitoring center and authorized No...
Custom Alarm:
Tracking have two custom input, the user can self-selected alarm input signal...
GEO-Fence:
When the user set a 1km(optional) circle with the current position as center. When the vehicle left the circle area, device will send alarm
Specifications:
Size: 69mm*69mm*25mm
Weight: N. W 0.16KG G. W. 0.61KG
Commutation & Interface:
L 3x input ACC/SOS / DOOR CHECK/SHOCK SENSOR
L 1x output FUEL CONTROL /SPEAKER
L Microphone
GPS Module:
Chip: SRF Star II/IVI GSC3f/LP-7979
Frequency: L1 1575.42MHz, C/A code
Channels: 20
Update rate: 1Hz
Sensitivity: Tracking -159dBm Cold start -144dBm
Acquisition Time
Hot start (Open Sky)<1s Hot start (Indoor)< 15s
Cold Start (Open Sky)< 35s
Position Accuracy
Autonomous< 10m
SBAS < 5m
Max. Altitude< 60, 000 ft
Max. Velocity<1, 000 knots
GSM/GPRS Module:
Baud: 850/1900 or 900/1800 or 850/900/1800/1900
Working Temperature: -30° C~+75° C
Max 2w(GSM850/EGSM900) Max 1w(GSM1800)
GPRS Class 10
CDMA Module:
Baud: 800
Working Temperature: -30° C~+75° C
Max 0.25 W
Accessories:
Main Unit; GPS Antenna; GSM Antenna; OBDII cable; Microphone; Fuel control line; Shock sensor; Speaker; Relay; Manual CD;
