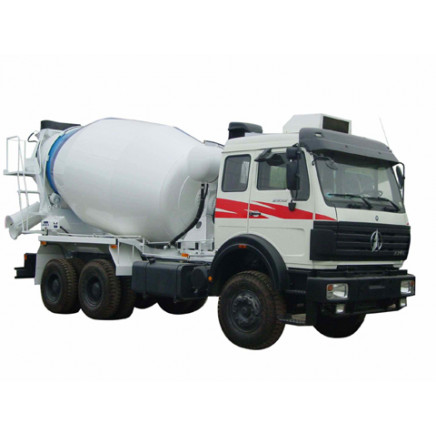

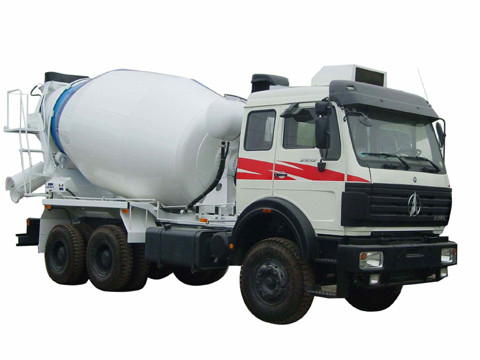

North for Benz 10~12m3 Concrete Mixer Truck

More Views

North for Benz 10~12m3 Concrete Mixer Truck

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Unit

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:North benz

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ND52503GJBZ

Certification:ISO9000, CCC

Transmission Type:Manual

Emission Standard:Euro 3

Engine Type:4 Stroke

Payload:40T

Fuel:Diesel

Condition:New

Engine:Wp10.375

Transmission:9t-180

Steering:Zf Technology

Rear Axle:Benz 13t Double Reduction Drive Axle

Mixing Body:10cbm~12cbm

Power:Diesel

Truck Type:Mixer Truck

Export Markets:Global

Additional Info.

Trademark:North benz

Packing:Nude Packing

Standard:ISO, CCC

Origin:China(Mainland)

HS Code:87059091

Production Capacity:30000 Units Per Year

Product Description

NORTH Benz 6 X4 8m3 CONCRETE MIXER Truck
Model ND52503GJBZ
Driving typeLHD (Right Hand Drive is optional)
Driver's cabLong cabin, single sleeper
EngineMaker: WEICHAI
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter-cooling
Engine model: WP10.375
EURO II/EUROIII emission standard
Maximum output: 375HP@2200 rpm
Number of cylinder: 6
Displacement: 9.726L
Clutch430mm, hydraulically operating with air assistance
TransmissionFULLER Brand transmission. 9T-180
Front AxleBenz front axle 7.5 tons
Rear AxleBenz 13T double reduction drive axle
SteeringTAS85
Option: ZF8098, hydraulic steering with power assistance
Wheel & TypesTyres: 12.00-20
Optional: 12R22.5, 12R20
Radial tire and tubeless tire is optional
ElectricsOperating voltage: 24V, negative grounded
Dimensions in mmWheel base: 4300+1450
Overall size: 10020× 2500× 3990
Weight in kgKerb weight 15950
PerformanceMaximum driving speed(km/h) 85
Drum ParametersGeometric Volume of Mixing Drum (m3)13.7
Max Mixing Cubage (m3)8
Gradient of the drum (m3)14
Filling rate 58%
Rest rate<=1%
Rotational speed of the drum0~14(r/min)
Slump 5cmAbout 30
Slump 8-12cmAbout 20
HYD. Driving SystemPumpARK PV 070
Max. Displacement 420bar/89CC/rev
Hydraulic MotorARK PV 070
Max. Displacement 420bar/89CC/rev
Decelerator modelTOP P68
Decelerator Ratio120.3I
Water Supply SystemVolume of water tank440
Water Supply ModeWater Pump;
Pneumatic Pump
Validity time: 30days

NORTH BENZ 6X4 CONCRETE MIXER T RUCK
Model	ND5260GJBZ02
Driving type	L HD (Right Hand Drive is optional)
Driver's cab	Long cabin, single sleeper
Engine	Maker: WEICHAI
	Diesel 4 stroke direct injection diesel engine , 6 cylinder in-line with water cooling, turbo-charging & inter - cooling
	Engine model: W D615.34 EUROII emission standard
	Maximum output : 340 HP@ 2200 rpm
	Number of cylinder:6
	Displacement: 9.726L
Clutch	4 3 0mm, hydraulically operating with air assistance
Transmission	FULLER Brand 9T--160
Front Axle	B enz front axle 7.5 tons
Rear Axle	B enz type double reduction drive axle Ratio: 1:5.263
Steering	ZF8098, hydraulic steering with power assistance
	Tyres: 12.00 R 20
Dimensions in mm	Wheel base: 380 0 +1450
	Overall size: 9040×2496×3850
	Kerb weight 13650
	Maximum driving speed(km/h) 85

B ody	Mixing Volume :10 CBM
	Decelerator :Italy TOP P 68
	Pump :Italy 089
	Motor :Italy motor
The manufacture reserves the right of technical alteration/change for better improvement prior notice
