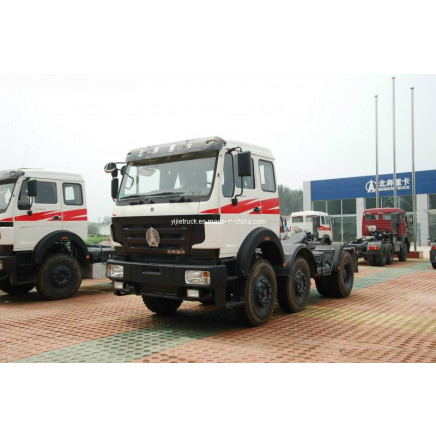

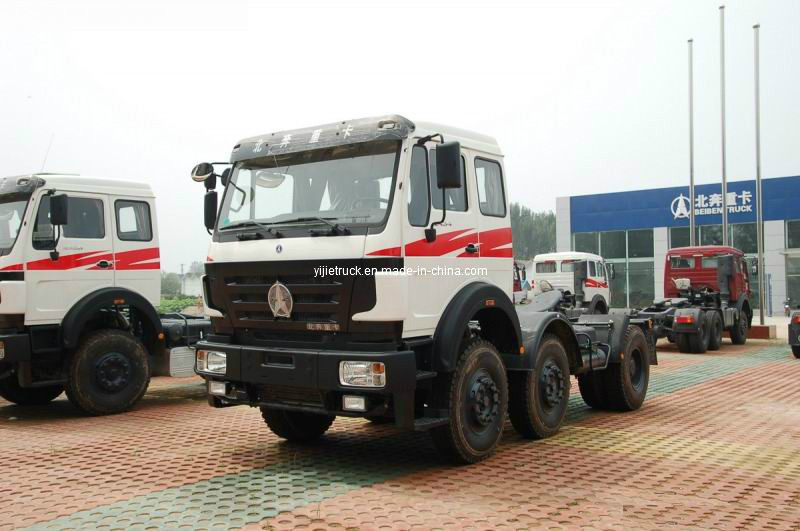

North Benz Tractor Head 6x4 40-50ton (ND4257B34J)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:Northbenz

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ND4257B34J

Transmission Type:Manual

Power:Diesel

Load Capacity:50T

Emission Standard:Euro 2

Drive Wheel:4WD

Seats:?5

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Type:Tractor Truck

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Northbenz

Packing:Nude Packing

Standard:Euro 2 or 3

Origin:China

Production Capacity:3000sets/Month

Product Description

Top quality famous North Benz tractor head. Mercedes Benz technology, excellent performance, resonable price.
Certificate: ISO9001, CCC, GBJ9001A-2001

Traction type: 6x4
Driving type: LHD(RHD is optioned)
Cabin:
North Benz long cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back and shock absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil pressure, temperature, air pressure,
Fuel level)
Headlight, Sun protection on cabin.
Engine:
Engine brand: Weichai
Engine model: WP10.380E32 EURII EGR
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & inter-cooling with exhaust valve brake.
Displacement: 11.596 liters
Max. Output: 380HP@353kW
Max torque: 1970NM@1200-1500rpm
Bore/Stroke(mm): 126/155
Clutch:
Clutch: ? 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting
Gear box:
Model: Fuller 12 speeds(12JS200T), manual, 12-forward and 2 reverse speeds
Steering:
TAS85
Brake system:
Double-circulate brake system
Axles:
Front axles: Mercedes Benz Technology 7.5 Tons
Rear axles: Benz double Reduction driving axle, Ratio: 1: 5.921(option5.263, 6.733)
Frame: Strengthened frame 317x70x8.5+7+8mm(E380TM)
Tyre: 12.00R20
No tyre: 10+1 spare
Spring:
13/13
Fuel tank capacity (L):
400
Weight:
Kerb. Mass: 9200 kg
Towing mass: 25000kg
Dimensions:
Wheel base (mm): 3450+1450
Front overhang (mm): 1410
Rear overhang (mm): 625
Front track (mm): 1995
Rear track (mm): 1800
Max. Length(mm): 6935
Max. Width(mm): 2495
Max. Heigh(mm): 3340
Performance:
Max. Speed (km/h): 100
Approach angle: 20 degree
Departure angle: 64 degree
Max. Gradeability(%): 30
Fifth Wheel: 50#

1. After-sale Service
Any small question will be solved at the most prompt time. We also offer relative technical support. Our spare parts will be available at any time after your order.
2. Supply Capacity
We manufacture the truck as soon as your order comes. And for the stock, we can delivery it immediately.
3. For more details, please just feel free to contact me.
