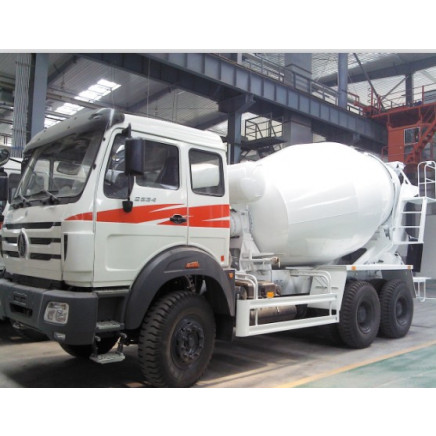

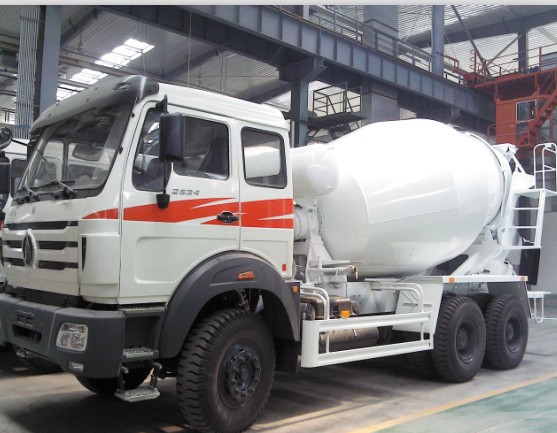

North Benz 6X4 340HP Concrete Mixer Truck with 10cbm Capacity Mixer Truck

More Views

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:CIF

Payment Terms:L/C, T/T

Trademark:CIMC

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Transmission Type:Manual

Condition:New

Model:ND5256gjbz

Wheel Base (Mm):4100+1450

Engine Model:Wp10.340ne32

Gear Box:9t-160

Power:Diesel

Emission Standard:Euro 3

Truck Type:Mixer Truck

Tire Design:Radial

Seats:?5

Tire Certification:ISO

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Trademark:CIMC

Packing:Nude Packing

Standard:Euro Ii or Euro Iii

Origin:China(Mainland)

HS Code:8701200000

Production Capacity:60, 000 PCS/Year

Concrete Mixer Truck
1. Mercedes-Benz Technology Axles, Frames
2. Weichai(Steyr) Engine
3. Fast Fuller Gearbox
4.9CBM capacacity

Model	ND5256GJBZ	Driving type				6x4
Cab	Mercedes Benz cabin with air conditioner	Drive type				LHD
Wheel base (mm)	4100+1450	Dimension (mm)				9400×2500×4000(mm)
Kerb. mass	15200kg	Total mass				25000kg
Front overhang	1410mm	Rear overhang				2440mm
Front track (mm)	1995	Rear track (mm)				1800/1800
Approach angle	26 degree	Departure angle				22degree
Engine
Engine Model	WP10.340NE32	Displacement			9.726 liters
Max. output	340hp@2200rpm	Max torque			1250NM@1100-1600rpm
Engine type	Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling
chassis
Gear box	9T-160		Clutch	ZJ120D
Front axle	Benz 7.5T front axle		Rear axle	13T Benz double reduction drive axle, ratio=5.921
Tyre	12.00-20		Steering	TAS85
Frame	300x90x8+6+8		Oil Tank	300L Iron tank
Body
Body Capacity	10CBM
