T300 Transponder Key Programmer Language for selection:
1. English
2. Spainish
Function introduces of T300 chip key decoder
1. Read the vehicle malfunction code
2. Clear the vehicle malfunction code
3. Read the system data stream
4. Read IMM0/ECU ID
5. Fetch the machinery key code
6. Clear vehicle key memory
7. Program new key
8. Read vehicle key login password
9. Distinguish types of ECU
10. ECU-IMMOBILISER programme
11. Read EKA password
12. Programme new EKA password
13. Programme telecontrol implement
Vehicle Coverage:
Model Place of origin
ACURA
Audi
ALFA
BUCK
CHEVROLET
CITROEN
Chrysler
DODGE
DACIA
DAEWOO
Ford
FERRARI
Ford USA
EXCELLE
FIAT Italy
GENERAL MOTORS
GM HOLDEN
Honda
HYUNDAI
ISUZU
Iveco
INFINNITI
INFINNITI CAN-BUS
JAGUAR
JEEP
KIA
LAND ROVER
LANCIA
LDV
LEXUS
LINICOLN
MAZDA
MAZDA M6
MERCURY
VALKSWAGEN
MITSUBISHI
Nissan
PEUGEOT
Renault
PROTON
PONTIAC
ROVER
SUBARU
SEAT
SKODA
SUZUKI
Toyota
VW

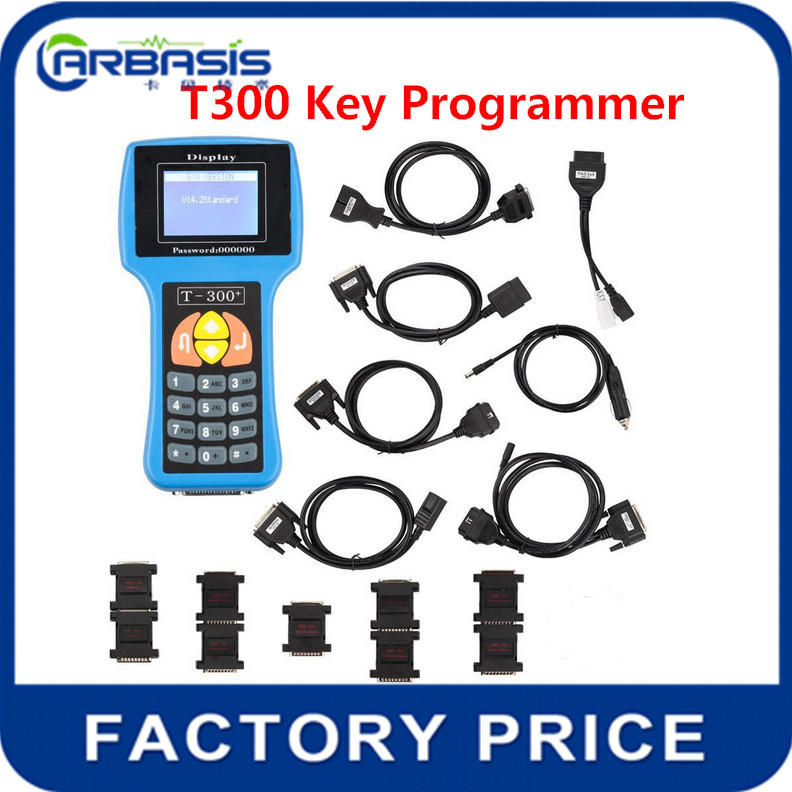

T300 Key Programmer Package Contains:
1. Honda-16 Adaptor
2. SUZUKI Adaptor
3. MITSUBISHI Adaptor
4. OBDII-16 Adaptor
5. OBDII-16 POWER Adaptor
6. Audi 2+2 Adaptor
7. Honda-3 Adaptor
8. Nissan OBDII
9. Nissan 14
10. Nissan adaptor
11. Chrysler-1 adaptor
12 Chrysler-2 adaptor
13. GM-12 adaptor
14. OBDII TO Benz SPRINTER
Audi-VW Transponder key matching with 5 digits Login Code
Procedure for adding transponder keys to vehicles with separate Immobilizer box:
(Audi to year 97, Golf 3, Passat B4, Transporter, Lupo, Sharan)
Switch ignition ON with new key. Select: Immobilizer -> Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example, if your Login is 1234, enter 01234.
Save
Go to Adaptation
Enter 01 in "Channel Number"
Enter
The "Stored Value" is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched, - for ex 2;
Enter -> Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation
Enter 00 in "Channel Number"
Enter 0 and Save. This will learn ECU with Immobiliser.
Procedure for adding transponder keys to vehicles with Immobilizer in the instrument cluster:
(Audi from year 97, Golf 4, Passat B5, B6 )
Switch ignition ON with new key. Select: Instrument -> Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example, if your Login is 1234, enter 01234.
Save
Go to Adaptation
Enter 21 in "Channel Number"
Enter
The "Stored Value" is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched, - for ex 2;
Enter -> Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation
Enter 00 in "Channel Number"
Enter 0 and Save. This will learn ECU with Immobiliser
