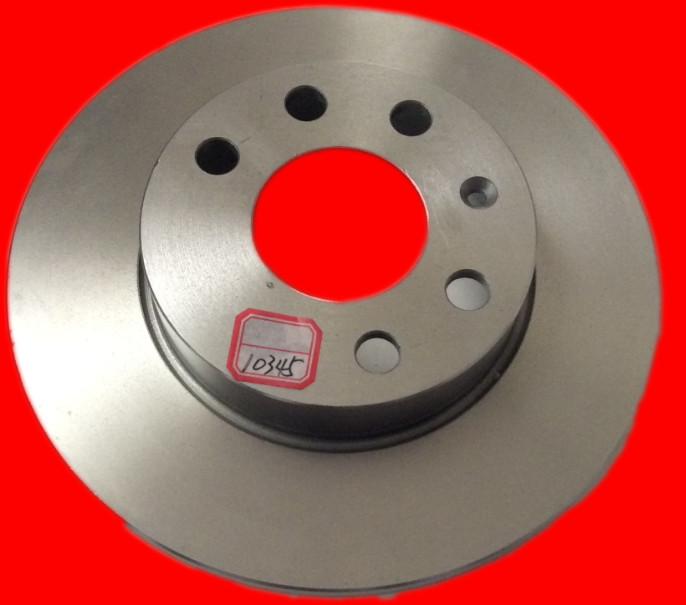

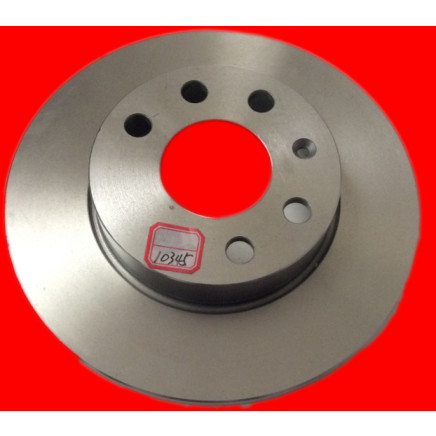

Newest Design Disc Brake Rotors 10345

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8.23 - $40.36 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 8.23/ Piece
200.0	US $ 40.36/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 02, 2015 To Jul 02, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:AMICO 10345

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949, ISO9001

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Number of Holes:6

Solid or Ventd:V

Export Markets:Global

Additional Info.

Trademark:luzao

Packing:Neutral Packing or According to The Requirements

Standard:TS ISO

Origin:Shandong Zouping

HS Code:87083099

Production Capacity:100, 000pieces/Month

Product Description

ZOUPING LUZAO METAL MATERIAL CO.,LTD

brake discs, brake rotor ,brake drum

Quality Standard---GG20

1. Material Requirements

1.1 Must meet Grade GG20 for gray iron castings.

1.2 Chemical Composition (Percent)

       * Total Carbon:     3.0 - 3.50%
       * Silicon:             1.90 - 2.30%
       * Manganese:       0.60 - 0.90%
       * Phosphorus:      0.12% Max.
       * Sulfur:               0.10% Max.

1.3 Microstructure:

      1.3.1 Graphite Structure-
              Predominantly type A, size 3-5.

      1.3.2 Matrix
              Pearlitic with max. 15 ferrite
              Free from chill

1.4 Physical Properties:

      1.4.1 Tensile Strength-     Min. 200 N/mm

      1.4.2 Brinell Hardness-     190 - 230
           ( 10 mm ball, 3,000 kg load)

           Our brake disc is well exported to North America,South America,the Middle East,South Korea,Singapore,Malaysia,United Kingdom,and Denmasrk,and enjoy a very good reputation worldwide.

Now we have more than 2,500 items in total which include almost all typical brakes worldwide,especially some newbrake parts for GM,VW,FIAT,BMW,Peugeot,Opel,Renault,Mercedes,Benz,Hyundai,Daewoo,Kia,and all Janpanese cars.

If you are interested in our product, please contact us,tel:0086-543-4347957,
