New Products Mini High Definition Digital Audio SD Card Mobile DVR

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $115.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 1/ Piece
10.0	US $ 115/ Piece

Trade Terms: FOB, FCA, EXW

Payment Terms: T/T, D/P, Paypal, Western Union

Price Valid Time:From Sep 20, 2014 To Dec 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VC-MDRS8000 SD DVR

Interface:BNC\VGA\HDIM

Operating System:Linux

Number of Supported Hard Disk:1

Compression Format:H.264

Certification:CE, FCC, RoHS

Warranty Time:13 Months

Stream Type:Hybrid Flow

Input Channels:4

Interface Display:Four Images

Brand:Vcomsky

Function:3G/GPS/WiFi for Option

Storage:SD Card, Max 64G

Channel:4 CH

Export Markets:Global

Additional Info.

Trademark:VCOMSKY

Packing:Standard Carton

Standard:ISO9001, CE, ROSH, FCC

Origin:Sz, China

HS Code:8525609000

Production Capacity:100000PCS

Product Description

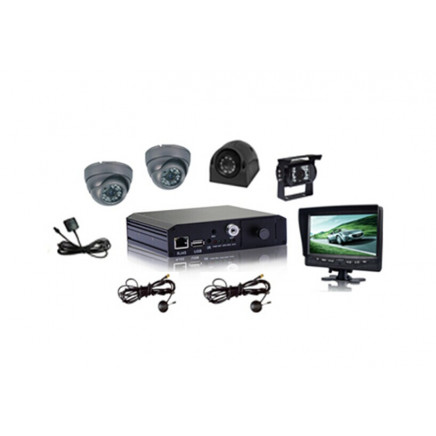

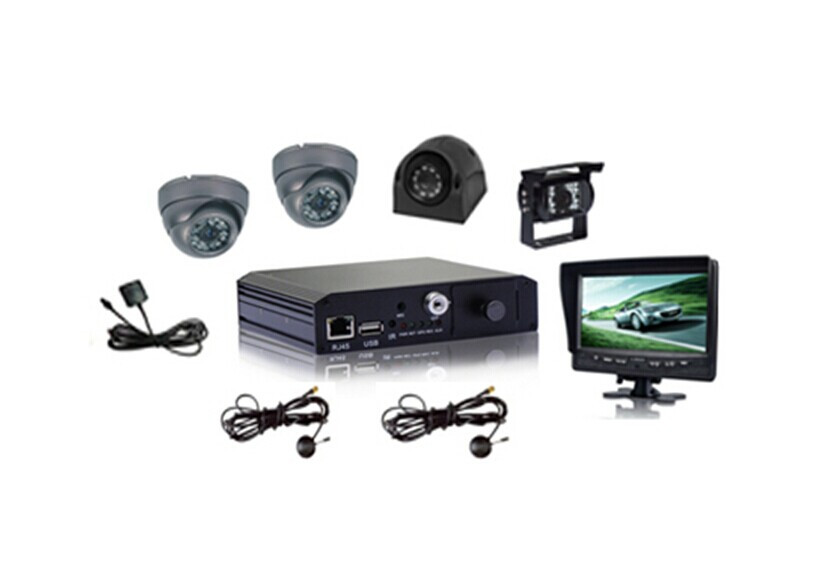

VC-MDRS8000 Series is a high level SD card mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, and applies various advanced technologies in IT field, such as A/V codec, high capacity SD card storage, network streaming media, A/V noise reduction, wide range voltage design.

Key Features:

Industrial level design;
Advanced audio/video compression technology;
4-channel video input, 4 ch audio input;
ASF standard file format;
Built in G-sensor module;
3G, GPS, Wi-Fi modules for optional;
Local and remote PTZ control;
Data redundant storage technology;
Patent UPS power-off protection design;
Fast startup;
Optional function: Bi-directional voice communication, telephone dialing, disk pre-heating;
Central management software provided for optional;
Support intercom function;
Remote control;
Remote download;
3G WIFI switch automaticly;
Support 6ch I/O alrm, over speed alarm, g-sensor alarm, video lose alarm, motion detection alarm;
Support broadcast voice;
Support LED control;
Support max 64G SD card.

Suitable for:

Bus, School bus, Logistics vehicle, Taxi, Police car, Special purpose vehicle, Train/metro, Ship/boat

Specifications
Item		Description
Operation system		Linux
GUI		Setup system parameters with remote controller
Security management		Support user password, supervisor password management; support encryption transmission
Video	Video input/output	4-channel video input, 1-channel video output; 1.0Vp-p, 75?
	Dual stream	Support
	OSD	Time & date, vehicle ID, GPS etc
	Compression	H.264. Hi-silicon high performance processor is applied.
	Preview function	Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function
	Video frame rate	PAL: 100 frame/sec, up to 25 frame/sec for single channel NTSC: 120 frame/sec, up to 30 frame/sec for single channel
	Video resolution	CIF, HD1, D1, 4D1 adaptive
	Video quality	Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest
	Video Bit Rate	CIF: 256Kbps ~ 1.5 Mbps, 5 levels of bit rate optional HD1: 600Kbps ~ 2 Mbps, 5 levels of bit rate optional D1: 800Kbps ~ 3Mbps, 5 levels of bit rate optional 4D1: 800Kbps ~ 1.5Mbps, 5 levels of bit rate optional
Audio	Audio input/output	4-channel input; 1-channel output
Audio	Compression	G.726
Recording	Storage media	Support SD card with 64G maximum capacity
	File format/system	ASF/ FAT32
	Recording mode	Startup recording by default, support auto, timed, alarm & manual recording
	Recording search	Search recording video files by time, type, storage device, etc.
	Recording playback	Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time
	Recording playback	Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time
Alarm	Alarm input	6-channel I/O alarm input
	Alarm recording	Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min
	Alarm output	1-channel alarm output
	Storage space	Support the setting of remain storage space alarm function
	Functional alarm	Over-speed alarm, g-sensor alarm, voltage alarm, snapshot alarm, motion detection alarm
Communication interface		RS232, RJ45 10M/100M self-adaption Ethernet interface
Wireless transmission (optional)		Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional;
GPS (optional)		Support external GPS module
Data remote transmission		Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download;
PTZ control		Support PTZ control function by local remote controller or client software;
Parameter configuration		Support parameter configuration
G-sensor		Built-in
System upgrade		Support SD card / Remote upgrade
Power supply & consumption	Power supply management	ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown
	Input voltage	DC:+8V ~ +36V
	Output voltage	+12V@4*0.5A;+5V@0.5A
	Power-off protection	Patent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs
	Power consumption	Less than 10W in normal working state; less than 0.5W in standby mode
Working environment	Temperature	Normal: -20 ~ +60 Hard disk pre-heating: -25 ~ +60
Working environment	Humidity	10% to 95%
Dimension		142(W) x36(H) x123(D) mm.
Weight		Net weight:550g, gross weight:1000g
