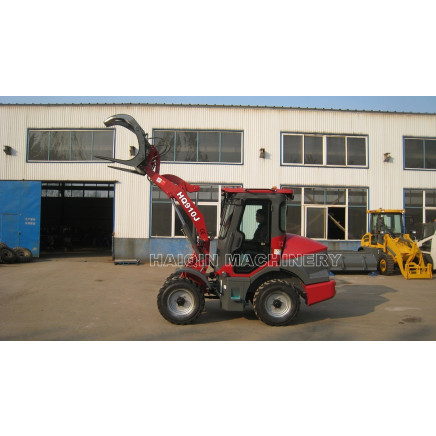

New Model CE Farm Machinery (HQ910J) with Grapple Fork

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 8000.0-11000.0/ Piece

Price:$8000.0 - $11000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Mar 08, 2015 To Feb 10, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ910J

Type:Small Loader

Usage:Universal Type

Scraper Type:Front End Shovel

Transmission:Hydraulic Transmission

Walking Mode:Wheeled

Load and Unload Method:Front Discharge

Engine Power:<74kw

Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Condition:New

Color:According to Customers Requirments

Engine:Euro III Engine

Loading Weight:1000kg

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in One 40 Container

Standard:CE, ISO, SGS, ROPS&FOPS

Origin:Shangdong, China

HS Code:84295100

Production Capacity:8000 Units / Year

Product Description

1, Advantage of HQ910J Farm Machinery :

1) Mini Loader with Fully Hydraulic Driving :Smooth transmisson, little noise and high transmission ratio.
2) With CE Certificate
3) Mini Loader with Euro III Emission Engine
4)Multi-function Mini Loader : Hydraulic controlling pilot joystick reduces workforce intensity, improves working efficiency and enhances the driver's comfort.

2,Details of HAIQIN wheel loader ."Quality First" is always the rule of HAIQIN MACHINERY :

New Model CE Farm Machinery (HQ910J) with Grapple Fork

3, HAIQIN MACHINERY went to Many exhibitions of the world :

New Model CE Farm Machinery (HQ910J) with Grapple Fork

4,Production line and Workshop of HAIQIN MACHINERY .
New Model CE Farm Machinery (HQ910J) with Grapple Fork

Specifications of HQ910J Mini Loader
Item	Specifications	Item	Specifications
Rated loading weight	1000kg	Operating weight	2750kg
Rated bucket capacity	0.54-0.7m 3	Overall dimensions(LxWxH)	4450x1430x2600mm
Bucket width	1500mm	Engine model	XINCHAI 490 EURO III Engine ( Yanmar or Perkins for option )
Track base	1160mm	Engine type	In-line arrangement, water cooled, four-cycle diesel engine
Wheel base	1710mm	Engine starting mode	Electric
Min. turning radius(outside of rear wheels)	3750mm	Rated power/Rated speed	32.4KW/2400rpm
Min. Ground clearance	230mm	Brake mode	Four-wheel hydraulic spread-shoed brake
Dump height fully raised	2420mm	Warranty	15 months
Dump height fully raised	2420mm	Warranty
Reach fully raised	850mm	Color	According to the requirements of customers
Lifting time + Dumping time + Lowering time	9S	Tyre type	12-16.5 or 3115.515 wide tyre
Steering angle	35 degree	Shipping port	Qingdao port, China
Max. Breakout Force	35KN	Packing details	1 unit in a 20 container, 3 units in a 40 container.
Driving mode	Four-wheel drive	Delivery time	20 days after confirm the order
OEM Service	Yes
