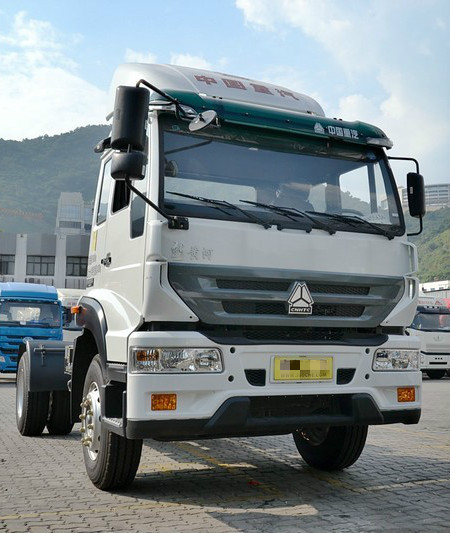

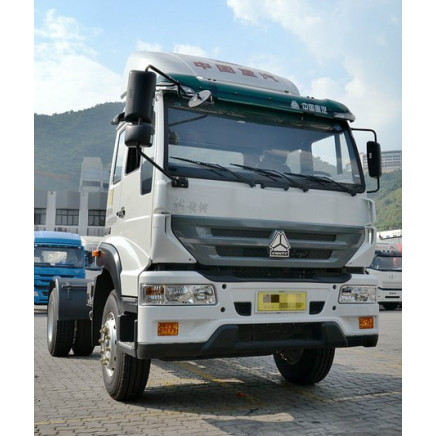

New Huanghe C5b 4X2 220HP Tractor Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 40000/ Piece

Price:US $40000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Feb 04, 2015 To Apr 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4184K3616C1

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 2

Drive Wheel:4×2

Seats:?5

Horsepower:150-250hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ECE

Tire Design:Radial

Condition:New

Engine Output:220HP

Truck Type:Tractor Truck

Driving Type:4X2

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:New Huanghe

Packing:Nude

Standard:50T

Origin:China

HS Code:870120000

Production Capacity:100, 000 Units/Year

Product Description

New Huanghe C5B 4X2 220HP Tractor Truck

This series is completed with the assemblies and components from mature medium truck models in Chinese market, along with the new L2000 driving cab, providing it an excellent adaptability and fuel efficiency, with its engine power ranging from 140PS to 260PS, available for urban-rural cargo circulation and medium/short-range transportation tasks.

Technical Parameters

Mass Parameter	Curb Weight(kg)		6100
	Fully-Loaded Mass(kg)		18000
	Towable Mass(kg)		24300,28100,30900
Dimensions	Overall Dimensions	Length(mm)	5950
		Width(mm)	2490
		Height(mm)	2980,3610,3630
	Wheel Base(mm)		3600
	Minimum Ground Clearance(mm)		250
Performance Parameters	Maximum Speed(km/h)		95
	Economic Speed(km/h)		80
	Maximum Gradability(%)		25
	Minimum Turning Diameter(m)		24

Vehicle Disposition

Engine	Model	YC6J220-33 YC6A240-33 YC6A260-33
	Net Power(kw)/Rotating Speed(r/min)	162 ,177 ,191
	Maximum Torque(Nm)/Rotating Speed(r/min)	760/1400-1700,900/1200-1600,1000/1200-1600
Gearbox		HW90510C
Clutch(mm)		395
Rear Axle Type		EQ153
Rear Axle Gear Ratio		4.875
Oil Tank(L)		350
Chassis Cross Section(mm)		280
Suspension (Frontal & Rear Springs)		11/10+9
Tires		10.00-20,10.00R20,11.00-20,11.00R20
