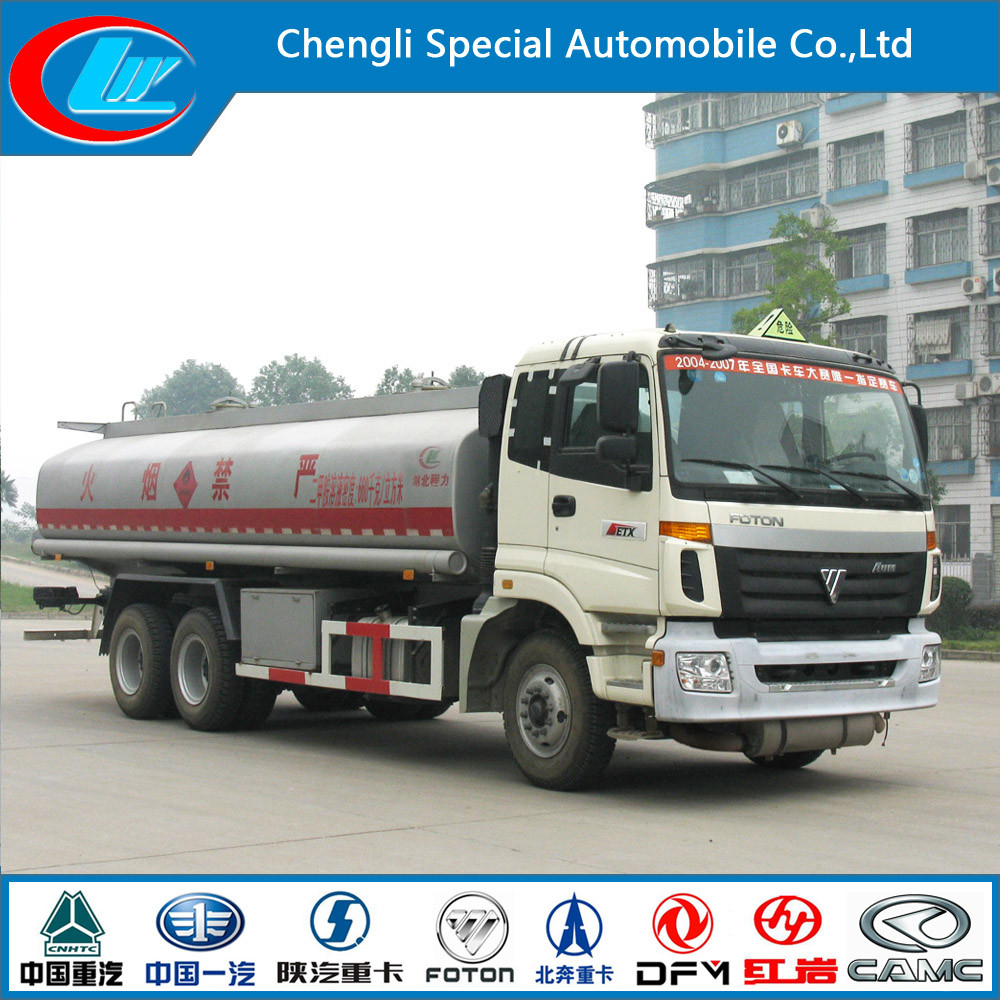

high popularity Foton 6X4 Oil Tank of Truck (CLW5257)
SPECIFICATION:
CHASIS
1.Description: Foton 6X4 Oil Tank of Truck
2.Drive Model:6X4
3.Chassis:BJ5257
4.Dimensions(L x W x H)mm:10067*2490*3010
5.Wheel base (mm):4725+1300
6.Overhang (front/rear) (mm):1532/2510
7.Wheel track (front/rear) (mm):11930/1860/1860
8.Approach/Departure angle(�):10/10
9.Curb Weight:13000kg
10:GVW.:25000kg
11.Max. driving speed(km/h):80
ENGINE
12.Engine Model:SC8DK240Q3
13.Type:4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
14. Horse Power(HP):177
15.Emission standard:Euro III
16.Gearbox:8 forwards & 1 reverse
17.Clutch:Reinforced diaphragm clutch
18.Tire:11.00R20. 10pcs+1 spare tire
UPPER
19.Fact cubage:20000liter
20.Tank material:Q235 carbon steel
21.Tank thickness:5mm
22.Body Internal Dimension:7400*2400*1600mm
EQUIPMENT
optional:1.Tank can be separated to several unattached small tanks to fill different fuels
2.Tank material: carbon steel,stainless steel,FRP etc.
3.Tank shape: Roundness , quadrate , oval
4.Oil pump: self-priming pump,gear pump
5.Oil meter:single,double,Fiscal processor
standard:1.Equipped with valves and pipes,a set of Fuel Dispenser
2.Equipped with a ladder on tank
3.Install with the motion of the satellite positioning function recorder
If you are interested in this model, pls feel free to send inquiry, and we will always be glad to quote.
Contact with me!
Sale Manager: Albert Du
Mobile:0086-18660874450
0086-13872880263
Tel/Fax : 00862783796298
COMPANY INFORMATION
ClW Heavy Industry Co., Ltd
which was appointed by the Development and Reform Committee of China.Chengli is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
� Established from 2004.
� 12 independents workshops.
� 1000 sets of equipment, 25 assemble lines.
� 300 senior engineers and technicians. About 2000 to 3000 workers
� 380kinds of trucks and semi-trailers.
� 20 years wholesale experience
� Turnover 250 million and Export 20million annually
� Turnover 2 billion trucks and semi-trailers annually.
� Truck Sold to 80 countries
� Cooperates with DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
ADVANTAGES
1. We have own factory located in Suizhou---the special truck town of China. we can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitive price.
2. We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
3. There is a strong professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers
OUR PPRODUCTS
1.LPG Tank /Skid LPG Tank /LPG Tank Truck /LPG Tank Trailer/LPG accessory
2.Fuel Tank/Fuel Tank Truck/Fuel Tank Trailer
3.Water Tank/Water Tank Truck / Water Sprinkler Truck/Water Wagon/Milk Truck
4.Van truck/Refrigerator truck/Explosion Proof truck
5.High-altitude Truck/Truck with crane
6.Chemical Liquid Truck
7.Bulk cement truck/Cement Powder Tank truck
8.Concrete Mixer Truck
9.Tractor
10.Fire fighting truck/ Fire Truck / Fire Vehicle
11.Dumper/Tipper Truck/Side Tipper/End Tipper
12.Wrecker
13.Flat transport truck
14.Sweeper truck
15.High pressure cleaning truck
16.Liquefied Gas Transport Truck
17.Pressure Vessel
18.Fecal suction truck / Sewage suction truck
19.Self-loading garbage compactor truck
20.Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as strict quality control system can ensure all the tank from us run very well with 10-20 years use life.
FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.
Packaging and shipping
1, Packaging: nude or waxing;
2. Shipping: RoRo ship or bulk ship according to the customer' order or requirement
