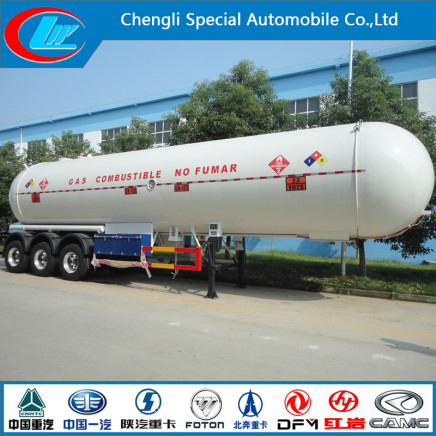

New Condition 49.6m3 Liquefied Petroleum Gas Tanker Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 11900.0-22700.0/ Piece

Price:$11900.0 - $22700.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Money Gram, Western Union

Price Valid Time:From Jul 13, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW9401

Model Number:Clw9401gyq

Dimension(L*W*H):12740X2480X3800

Capacity:36132liter

Weight:20832kg

Loading Material:LPG, Propane, Gas or Others

Service Time:More Than 15 Years

LPG Tanker Material:Special LPG Tank Carbo Steel Material Q345r

Trailer Axles:3 Nos Fuwa or BPW Axle

Landing Leg:Fuwa or Jost Landing Leg

King Pin:90# Jost King Pin

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:RO-RO Bulk Naked Container

Standard:ISO, CCC, CE, ASME, ASTM, EEC

Origin:Hubei China

HS Code:8701909000

Production Capacity:100000PCS/Year

Product Description

hot sale China largest 49.6m3 liquefied petroleum gas tanker semi trailer

We, Chengli Special Automobile Co.,Ltd is a professional LPG tank manufacturer in China. LPG gas tanker semi trailer, lpg tank truck, lpg storage tank are all our main products. Our factory is fully passed ISO9001-2008 international quality system.

We have the biggest LPG tank trailer and LPG truck in the world:

1. we have the biggest LPG tank trailer in the world, the valid volume is 49.6cbm; low transport costs, more profit.

2. we have the biggest LPG truck in China, it's valid volume is 35.5cbm;

3. our LPG storage tank ranged from 5cbm to 120cbm. both on the floor ones and in the ground ones.

Parameter of the LPG semi-trailer

Item			Parameter
Tank	Description of LPG tank		49.6CBM LPG semi-trailer
	Type number		CLW9400GYQA
	GVW		36132KG
	Overall dimensions (mm)		1274024803800
	Curb weight(kg)		15300
	Approach Angle/Angle of departure		-/20 (�)
	Wheel base		6800+1310+1310(mm)
	Tire		12R22.5 12PR
	Axle Number		3
	Type of vessel		The third kind
	Design pressure		1.77MPa
	Max working pressure		1.61MPa
	Design temperature		-19~50�C
	Filling medium		Liquid petroleum gas (propane)
	Corrosion allowance		1.0mm
	volume		49.6CBM
	Thermal treatment		The entirety
	Filling factor		420-590kg/CBM
	Material of the tank		Q345R
	Hydraulic test pressure		2.22 M Pa
	Gas tight test pressure		1.77 M Pa
	Cylinder thickness		12mm
	Head thickness		12mm
	Service time		10 years
Liquid level indicator	Type		UNZ-518C14
	Version of the indicator		Magnetic type liquid level indicator
	Normal pressure		2.5M Pa
	Scope of testing		50-2300mm
	Precision		2.5
Safety valve	Model		A42F-2.5-80
	Version		Built-in
	Normal pressure		2.5 M Pa
	Normal diameter		DN80
	Opening pressure		1.68~1.76M Pa
	Re-seating pressure		>=0.8 times of the opening pressure
Loading and unloading system	Normal diameter	Feed pip	DN80
		Drain pip	DN80
		Admission port	DN80
		Sewage outfall port	DN80
		Vent nozzle port	DN80
Standard	GB150 <pressure vessel> TSG R0004-2009
Specification	Designed Pressure: 1.77Mpa Filling Ratio: 0.42-0.59 kg/L Working Temperature:-50�C Corrosion Allowance: 1mm
Standard configuration	13TBPW axle,ABS system,Single out the liquid ,Double toolkit ,thermometer,pressure gage,JOST king pin,JOST leg,Emergent cut-off valves,Safety valve ,12 tubeless tire and one spare tire,fire extinguisher,anti-static tape,plastic mud-fender.

Our lpg tank is 100% x-ray test and export over all the world. The semi-trailer axles can be fuwa axle, BPW axle,etc. The tyres can be steel wire tyre, tubeless tire, Nylon tyre. The landing leg of our semi-trailer can be Jost landing legs, fuwa langing leg,etc. The kingpin diameter of our semi-trailer can be 90mm or 50mm.

We also customize the semi-trailer lift axle air suspension, trailer suspension leaf springs.

LPG trailer brief
1)Designing pressure: 1.61MPa Designing temperature: -20C-50C
2)The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity. Light weight and high efficiency.
3)We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality, its matching is complete.
5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on

Company information
ClW Heavy Industry Co., Ltd
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
1.Competitive Price and Excellent Quality,
2.More than 10 years' experience as a manufacturer
3.CCC, ISO, BV certification
4.Perfect after-sale service
5.Export covering More than 50 countries and regions
6.Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year
7.can produce water tank truck, fuel tank truck, bulk cement truck , LPG Tank, Garbage Truck, Tow Truck, Sewage Vacuum Truck, Aerial Platform, Concrete Mixer Truck, Road Sweeper Truck, Cargo Crane Truck, Firefighting Truck

Our main products
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
LPG tanker trailer brief Introduction

FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.

Packaging and shipping
1, Packaging: nude or waxing;
2. Shipping: Ro-Ro ship or bulk ship according to the customer' order or requirement

If you are interested in this model, pls feel free to send inquiry, and we will always be glad to quote.
Contact with me!
Sale Manager: Albert Du
Tel/Fax : 00862783796298
Cell:+86-13872880263/18660874450

Technial parameters of largest 59.6m3 liquefied petroleum gas tanker semi trailer (THE BIGGEST LPG TRAILER)

GENERAL DESCRIPTION
Vehicle Product	LPG gas tanker semi trailer
Vehicle Brand	CLW
Overall Dimension	13000x2500x3990mm(L x W x H)
GVW./Kerb Weight	4000Kg/15000Kg.
TANK BODY
Tank Volume	59520 liter
Tank Material	Q345R
Tank Body and Head	11.5mm thick tank body and head
Loading Medium	LPG propane gas
Design Pressure	1.61MPa
Loading coefficient	0.95
CHASSIS
Heavy duty reinforced chassis with reinforced axle. The tank's framework consists of two fabricated steel beams of high quality 16 Manganese steel. The two beams are fully welded all over their length on the tank. The beams are strongly connected with the cross members supporting the suspension and the kingpin upper coupler.
RUNNING GEAR
Trailer Axles	BPW/FUWA brand,etc. 3x13ton axles with double wheels
Landing Legs	JOST/FUWA brand,etc. 28tons per pair
Suspension System	Steel spring suspension or air bag suspension
King Pin	JOST/FUWA brand,etc. 2inch or 3.5inch,bolted and welded type are optional
Tyre No.&Spec.	12 tires,11.00R20 steel wire tire
MUDGUARDS
Heavy duty mudguard rubber mud-flaps
BUMPERS
Side bumpers mounted between landing gear and first axle, rear bumper is European standard
ELECTRIC SYSTEM
24V lighting system,electrical socket for lighting,rear lamp with parking,direction,fog,reverse, 4 side lights
PAINTING
All steel plates and structure are blasted first, then painted with two anti-corrosive primer coats and two lever top.
OTHER BASIC EQUIPMENT
Safety valve, thermometer, pressure gage, emergency cut-off valve, fire extinguisher, anti-static rope,outlet, toolbox,etc
