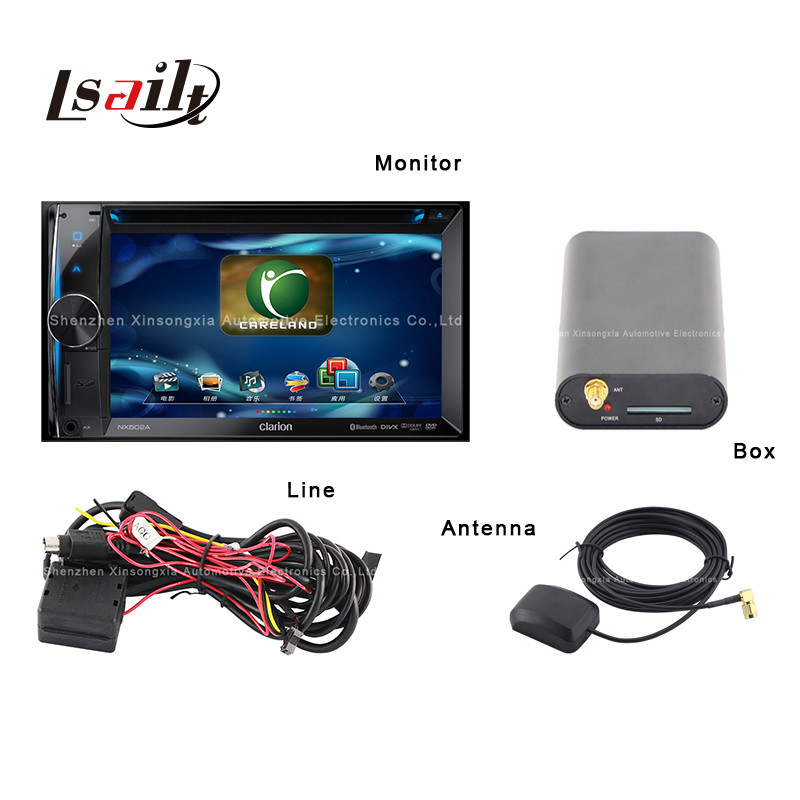

Navigation Module for Clarion Installed Car Unit Head

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Pieces

Trade Terms:FOB

Payment Terms:T/T, Western Union, Paypal

Trademark:LLT

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LLT-CL3250

Type:GPS Navigator

Use:Automotive

Port Number:Multiplex Multi-purpose Channel

Model:Integration Type

Carrier Frequency:Dual-Frequency

Chip:SiRF

Certification:ISO/TS16949, ISO14001

Frequency:664MHz+336MHz DSP/800MHz

Storage Space:128MB(Can Expand to 8GB)

Main Chip Model:Sirf Atlas V/Msb2531

Resolution:480X234(Selection by Resistor)

Supported Audio and Video Formats:MP3/PCM/WMA/ MP4/MPEG/Mpg/Asf/WMV/MOV etc

Operating System:Wince6.0 Core

Export Markets:Global

Additional Info.

Trademark:LLT

Packing:Cartons

Standard:CE, SGS

Origin:Shenzhen, Gongdong

Production Capacity:50, 000PCS

Product Description

HD/Mimic Navigation System, Navigation Chipset, Navigator, GPS Box, GPS navigator For Clarion, Alpine, JVC, Kenwood, Philips, Pioneer, Sony with VX-709A
Installation advantages:

1) Nondestructive installation design, which does not damage to wires of the original car; Special interface cable, plug-up installation without wire cut;
2) Choose installation functions freely(Bluetooth optional);

3) Technology is reliable, take the original agreement;
4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's simple, less risk, safety and reliable
6) Choose beautiful interface by yourself;

7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible.

Product parameters

Frequency:	664MHZ+336MHZ DSP/800MHZ
Main chip model:	Sirf Atlas V/MSB2531
Memory:	128MB/256MB
Storage space:	128MB(can expand to 8GB)
Navigation software storage:	SD card
Operating system:	WINCE6.0 CORE
Supported audio and video formats:	MP3/PCM/WMA/ Mp4/mpeg/mpg/asf/wmv/mov etc.
Support video type:	Mp4/mpeg/mpg/asf/wmv/mov etc.
Video output format:	Composite Video(CVBS,Y/C,YPbPr)/ Analog RGB
Video output voltage:	1.0Vpp/75?
Resolution:	480X234(selection by resistor)
Sound output:	Dual channel CD stereo sound
Operating temperature:	~40蚓 to +85蚓
Storage temperature:	~40蚓 to +100蚓
Operating voltage:	DC 9-16V
Tracking sensitivity:	~161dBm
Positioning accuracy:	10m, 2D RMS,5m, 2D RMS, WAAS enable
GPS Antenna type:	External active ceramic antenna

For models:VX-709A etc. all machine with NAVI interface . (480X234)

Statement: All brands on this website are belong to original company, if do not want to use this website, please note in time and delete.
