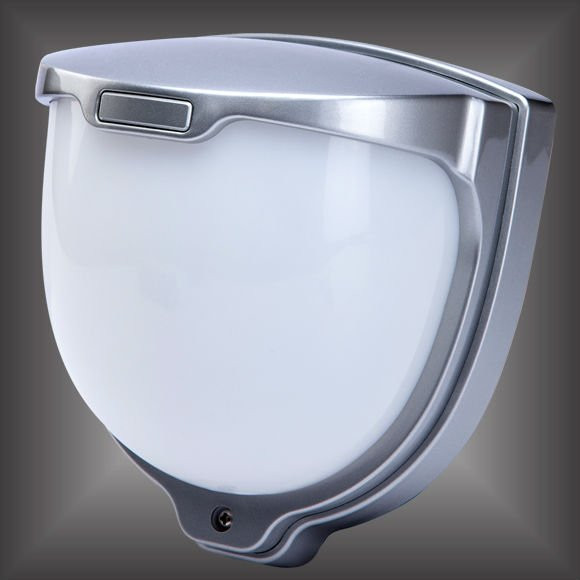

Multiple Waterproof Outdoor Motion Detector PIR Sensor (GJD-300)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:T-GUARD

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:GJD-300

Size:155mm× 170mm× 115mm

Type:Sensor

Application:Home, Industry

Usage:Anti-theft, Anti-theft~

Export Markets:Global

Additional Info.

Trademark:T-GUARD

Packing:CTN

Standard:CE

Origin:China

HS Code:8531100000

Production Capacity:50000PCS/Year

Product Description

Large inside space for easy installation and operation
Automatic temperature compensation, high detecting sensitivity
Built-in anti-tamper funtion
Multiple waterproof design; Strong stealing; Good waterproof effect
Free rotary structure design allowing detecting angle adjustable freely
Pet immunity
Super anti-outdoor sunlight function
Advanced micro-computer process technology, no false alarm
Supports standard interface for various alarm pannels

Technical Parameter:
Power Supply: DC 10-14V
Static Current: 15mA
Working Current: 7mA
Detecting Angle: 80° — 110°
Direction adjustment: 80° (Left/Right)/40° (Tilt angle)
Installation Height: 3.5m (Max. )/2.5m (Ideal)
Response Time: 5 seconds
Detecting Interval: 8 seconds
Warm-up Time: 60 seconds
Alarm Output: N/C or N/O optional
Anti-tamper: N/C
Alarm Indicator: LED (On/Off)
Double Anti-sunlight: 30000LUX
IP Rating: IP55
Working Temperature: -20° C~55° C
Size: 155mm× 170mm× 115mm
