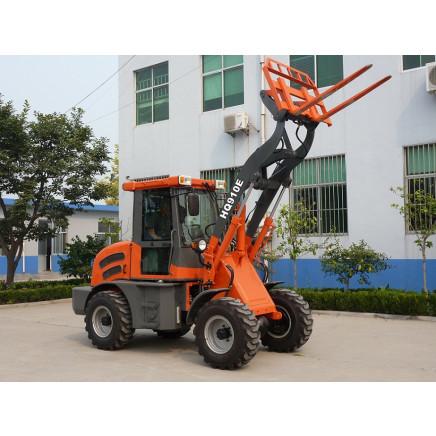

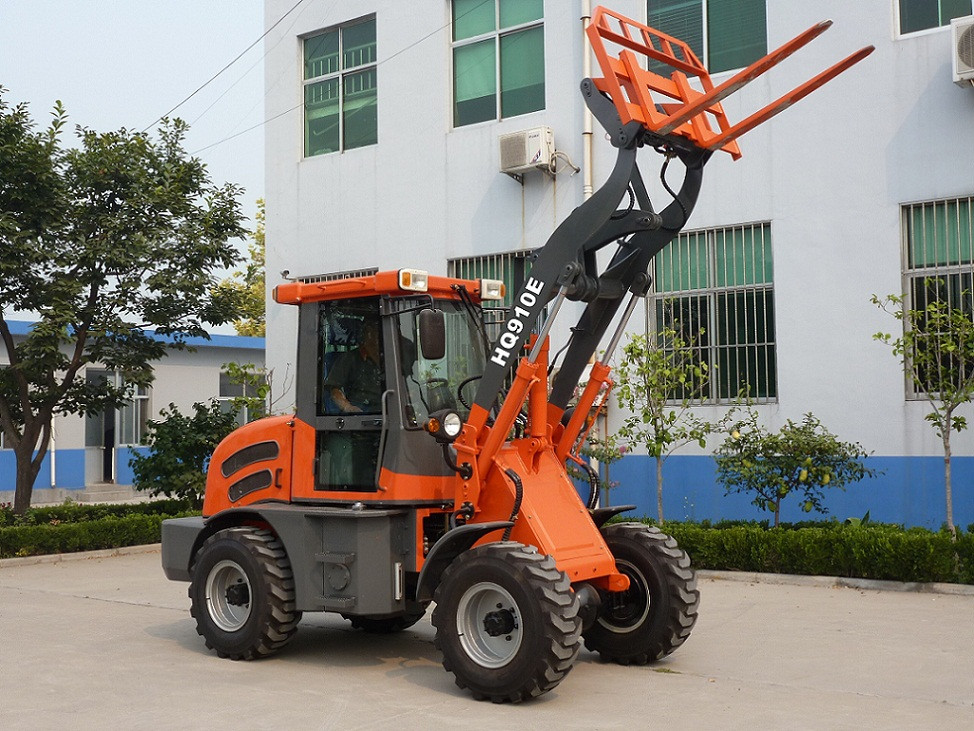

Multi-Function CE Wheel Loader with Pallet Fork (HQ910E)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 5000.0-8000.0/ Piece

Price:$5000.0 - $8000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jul 08, 2015 To Nov 29, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ910E

Type:Wheel Excavator

Usage:Used in a Farm, Cattle Farm ,Garden or Construcion

Bucket:Shovel

Transmission:Hydraulic Transmission

Drive Type:Internal Combustion Drive

Bucket Capacity:0.5~1.0m³

Size:Small-Scale

Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Condition:New

Loading Weight:1000kg

Engine:Euro III

Power:37kw

Warranty:1 Year

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in One Hq40 Container

Standard:CE, ISO, SGS, ROPS&FOPS

Origin:China

HS Code:84295100

Production Capacity:5000 Units / Year

Product Description

Wheel Loader HQ910E ( with CE):

1) with CE Certificate
2) Fully Hydraulic Driving, 4 wheel drive.
3) CE Engine
4) Multi- Function and Joystick operation.

THE TECHNICAL PARAMETERS OF HQ910E CE CERTIFICATE MINI WHEEL LOADER
Model	HQ910E	Driving mode	Four-wheel drive
Rated loading weight	10 00kg	Operating weight	330 0kg
Rated bucket capacity	0. 5 CBM	Dimension(L×W×H)	4 75 0 ×1 65 0×2 72 0mm
Bucket width	1 6 00mm	Engine model	CHANGCHAI 490
Track base	1 400 mm	Engine type	In-line arrangement, water cooled, four -cycle diesel Engine
Wheel base	1580 mm	Engine starting mode	Electric
Min. swerve diameter	389 0mm	Rated speeds	2200rpm
Min. ground clearance	2 30 mm	rated power	29 kw
Dump height fully raised	2 200 mm	Brake mode	Four-wheel hydraulic spread-shoed brake
Reach fully raised	850 mm	Color	According to the requirements of customers
Lifting time	4s	Tyre	8.25 -16
Hydraulic cycle time	9 s	Packing details	Nude package, 1Unit/20's GP with disassembled cabin , 3Units/40's HQ
Max. tilt angle	30 0	Delivery time	20 days after confirm the order , received the advance
Max. bucket breakout force, lift cylinder	2 6 KN	Supply ability	100 units per month
