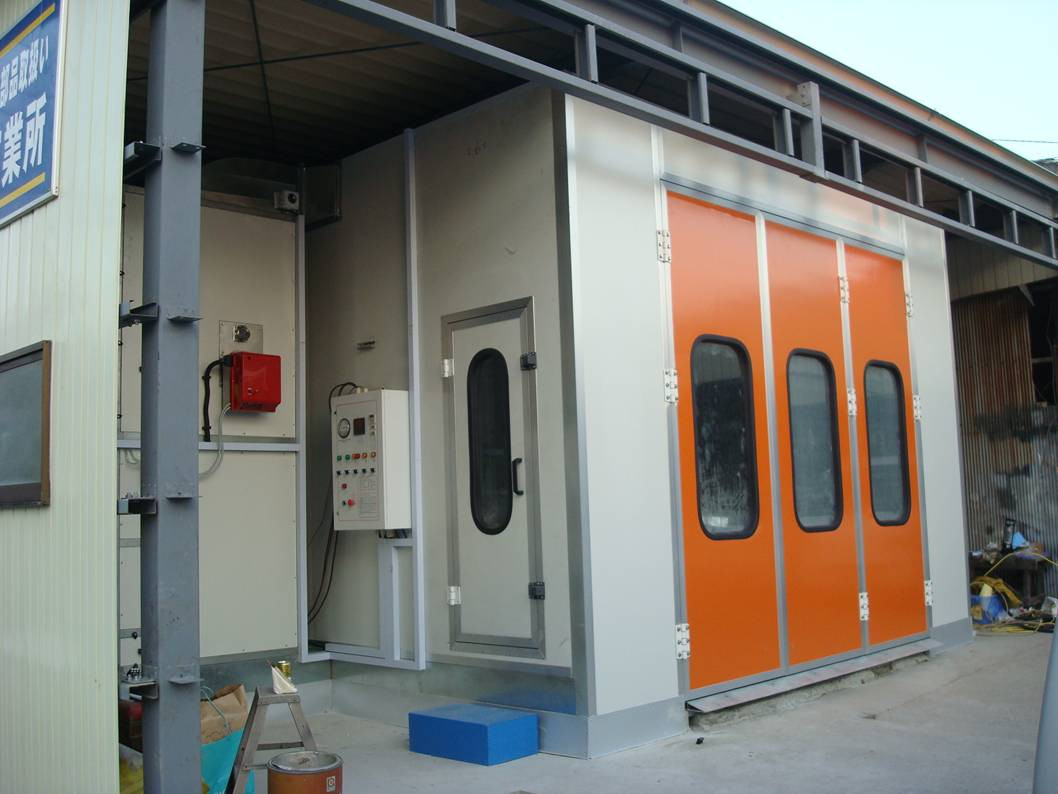

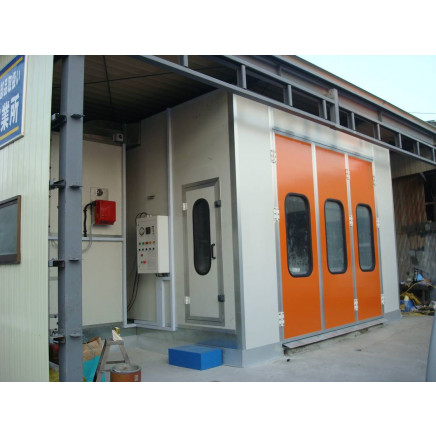

Motorcycle Spray Spraybooths

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$6200.0 - $8060.0 / Set

Min. Order (Sets)	Unit Price
1.0	US $ 6200/ Set
4960.0	US $ 8060/ Set

Trade Terms: FOB, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Apr 02, 2014 To Jun 06, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:YS-10

Certification:CE

Airflow Direction:Downdraft Airflow Way

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Ventilation:Downdraft Airflow Way

Air Intake:1X5.5 Turbo Fan

Air Exhaust:Optional

Heating:Riello G10 Diesel Burner

Voltage:1X220V,3X380V,Your Special Voltages Are Accepted

Optional Colour:White, Blue, Orange and Red

Port:Huangpu Port or by Your Order

Main Product:Spray Booth, Prep Station, Infrared Curing System

Export Markets:Global

Additional Info.

Trademark:YOKISTAR

Packing:Bubble Film Packing for Sea Transportation in Bulk

Standard:20?GP can load 1 set, 40?GP 2 sets, 40`HQ 3 sets

Origin:Guangdong, China

HS Code:84198990

Production Capacity:120units/Month

Product Description

Model: YS-10
Inside dimention: 6900*3900*3400mm L*W*H
Any Size Requirements Can Be Met.
Cheap, but with direct-drive turbo fan

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

Inside dimension	6300в 3450в 2650mm (Lв Wв H )
Outside dimension	6400в 4900в 3400 mm (Lв Wв H )
Main door	F olding door, 2 folds, 2200в 2600 mm ( Wв H ), made by bending steel without cover frame, , colour: blue.
Escape door	1 unit, 650в 1800mm ( Wв H ), colour: white.
Basement	Galvanized steel assemble, 300mm high, quadrate steel support, 2 rows of grilles made by flat bar and round steel, then painted. 3 rows of indented plates, painted. 2 ramps, external setting, 520в 2000mm/pc.
Wall Panels	Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.376mm colour steel with 50mm thick polystyrene (EPS) insulation inside, colour: white.
Lighting system	Ceiling Lights: 8Units в 3Pcs=24Pcs в 36W, with electronic holders, lighting boxes are made by colour steel.
Generator setting	Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle.
Intake and Exhaust air system	1в 5.5 KW turbo fan for intake air, power: 5.5KW, air capacity: 18000m 3 /h
Intake and Exhaust air system	Exhaust air system is optional.
Heating system	BT18 diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 180000Kcal/h.
Filtering system	Pre-filter, ceiling filter, exhaust fibreglass filter.
Roof Plates	Galvanized steel plates
Control system	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter. All motors are normal start.
