Mini Size GPS Vehicle Tracking Device Car Alarm System Low Power M6

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 300/ Box

Price:US $300.0 / Box

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: T/T, Paypal, Money Gram, Western Union

Price Valid Time:From May 15, 2014 To Aug 08, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BSJ-M6

Function:Remote Control to Open the Trunk, Anti-theft Warning, Central Locking System Automation, GSM Network Remote Real-time Monitoring, Mute Anti-theft, Remote Central Locking

Type:GSM

Size of The Main Unit:65*48*26mm

Weight of The Main Unit:53G

Input Voltage:12-36V DC

Current:50mAh/12V

Working Temperature:-20 to 80 Centigrade

Humidity:5% to 95%

Backup Battery:280 mAh

Color of The Main Unit:Black & Grey

GSM Frequency:850/900/1800/1900MHz

GPS Chip:U-Blox

Export Markets:Global

Additional Info.

Trademark:BSJ/Customized brand is accepted

Packing:Netural Box/Gift Box

Standard:ISO9001; CE; Rohs; CCC;

Origin:Shenzhen, China.

HS Code:85311010

Production Capacity:4000/Day

Product Description

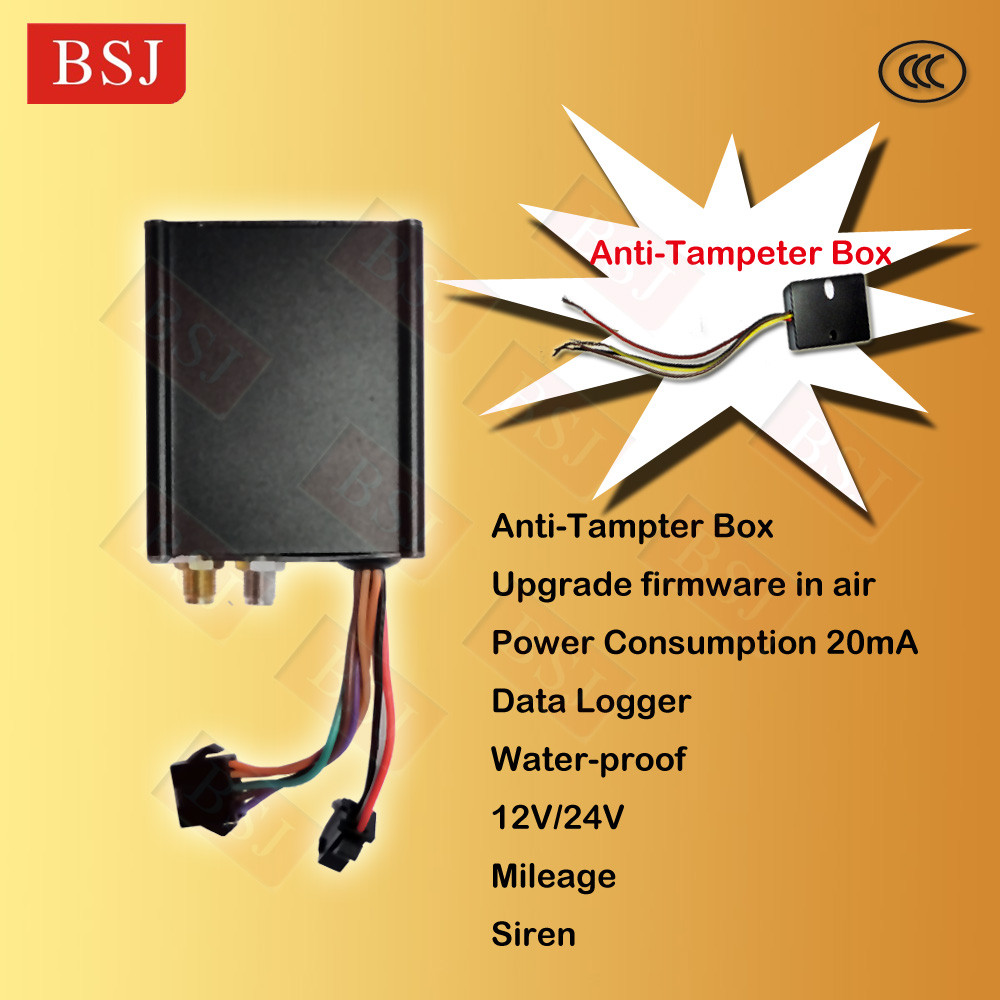

Mini Size GPS Vehicle Tracking Device Car Alarm System Low Power

I. Description of GPS Vehicle Tracking Device Car Alarm System M6

Waterproof GPS Vehicle Tracking Device GSM Car Alarm M6 is a mini gps tracker and car alarm system for car, truck and bus. This vehicle alarm systems is small in size, low power consumption, low working current and stable in quality. It is small in size, easy for wire connection.

II. Main Functions of GPS Vehicle Tracking Device Car Alarm System M6

1. Locating and Tracking. Information, such as speed, location, moving direction and elevation above sea-level of vehicle, can be tracked by monitoring center anytime.
2. Over-speed Alarm. If the speed of vehicle is over the preset speed, GPS terminal will warn the driver and send over-speed alarm to monitoring centre.
3. Emergency Alarm. If the vehicle is hijacked and backfired, the driver can positively give an alarm to monitoring centre
4. Cut-off of Oil and Electricity. Safely cut-off oil and electrical supply of vehicle in long-range.
5. Alarm of Crossing Border. AS the vehicle runs into or out of the specific area, the monitoring center will accept alarm at once.
6. Playback of Track. Make query of historical tracks of vehicle.
7. Communication Monitoring
8. Message Scheduling

III. Advantages of GPS Vehicle Tracking Device Car Alarm System M6

1. Small size: Difficult to find and easy to install,
2. Low power consumption: Nearly have no infection to the vehicle battery.
3. High integrity: Adopt ARM chip with superior processing
4. Excellent Stability: Industrial grade of chip, professional anti-interference process, multilevel battery protection and reliable equipment operation

IV. Characteristics of GPS Vehicle Tracking Device Car Alarm System M6

1. Excellent interface and convenient operation,
2. Efficient dispatching system and support of more online vehicle,
3. Two version of software(C/S and B/S version), especially B/S version of software is very convenient for customer to examine vehicle and check historical track.
4. Software interface of monitoring and control centre can be customized according to customers requirement and habit of usage.

GSM module	850/900/1,800/1,900Mhz (optional) or GPRS TCP/UDP
GPS module	U-BLOX 5-generation module (other module is considered)
GPS sensitivity	160dbm
GPS frequency	L1, 1,575.42 MHz
C/A code	1.023 MHz chip rate
Channel	16-channel checking and tracking
Position precision	Less than 15m
Speed precision	Less than 0.1m/s
Time precision	Global synchronous GPS time
Cold start	45s
Warm start	38s
Hot start	Less than 5s
Working temperature	-20 +70
Storage temperature	-40 +85
Dimension	65mm з 45mm з 25 mm
Working voltage	9V-36V
Power	1W1.5W
Working current	0.1A12V; 0.06A24V
