Mini Size GPS Tracking Device with Engine on/off Detecting Vt111 F

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$49.0 - $50.0 / Set

Min. Order (Sets)	Unit Price
1.0	US $ 50/ Set
100.0	US $ 49/ Set

Trade Terms: FOB

Payment Terms: T/T, Paypal, Western Union

Price Valid Time:From Sep 10, 2014 To Dec 10, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VT111

Type:GPS Tracker

Use:Automotive

Frequency:850/900/1800/1900MHz Quad Band

GPS Chip:Latest GPS Sirf-Star III Chipset

Function:RFID Car Alarm/Engine Idle Alert

Input Voltage:DC 9V~36V/1.5A

Is_Customized:Yes

Export Markets:Global

Additional Info.

Trademark:Neutral

Packing:Neutral Color Box

Standard:quad-band

Origin:China

HS Code:8517691090

Production Capacity:10, 000 Sets/Month

Product Description

VT111 is a newly developed mini GPS vehicle tracker, a highly cost-effective tracking device for all kinds of vehicles, it can be used as a GPS tracker and a car alarm, has tracking, Arm/Disarm by SMS or Call, with ACC on /Door open/Movement alarm to protect your vehicles from pilferage. If equiped with RFID part, the device can realize automatic Arm/Disarm, to protect your vehicle in a easy and confortable way. It is very small in size, easy concealed and installed, an ideal tracker for fleet management and car security.

Functions & Features:
1.Real time tracking by SMS/GPRS (TCP/UDP supported),track by time interval or by distance
2.Check the car's coordinates, speed & direction via SMS or by tracking platfrom;
3.Check the physical address via SMS(need center or tracking platform support);
4. Cut off the car power/fuel supply by SMS or by tracking platfrom, to stop the car;
5. Can be triggered by normal car alarm;
6. Engine on/off detecting;
7. Movement Alert:
Once the car is parked, you can send the SMS instruction to put the system in movement alert status. Then, if the car is moving out about 80 meters, the system will send SMS to inform you. It is a very useful function, which enables the tracker to work as the car alarm too;
8. Geo-fence Alert:
User can set a certain zone by SMS, once the vehicle oversteps the fence, the alarm will send SMS to inform you;
9. Over-speed Alert.
User can set a certain speed limitation by SMS. Once the vehicle is running over this speed, the system will send SMS to inform you;
10. Built-in rechargeable backup battery.
If the system's main power supply is cut off, system will send SMS to warn you;
11. Two kinds of location information.
User could locate the precise location by GPS. If there is no GPS signal, user could also locate the car by CPS (cellular positioning system - located by GSM network)
12. Monitor the voice around the car via telephone;
13. Anti-robbery button, send out SMS for help in case of high-jack;
14. Track the car by SMS or by tracking platfrom (The software is optional).
15. Flexible design, the system can work alone without support of center. If the center is setup, the functions can be much stronger, you can monitor & control many vehicles in the center, and the information of vehicle's location can be more detailed and friendly.
16. Anti-tamper design in small size, stable, reliable & easy installation.
17. GOOGLE map link for location via SMS, which shows you location on map via mobile phone.

Solutions:
Car alarm + GPS tracker solution
Drive ID inductive key solution
RFID&Timecard solution
Other customization function with VT111
For Motorcycle ,Private car, Car rental/leasing company tracking & security, Fleet management etc.

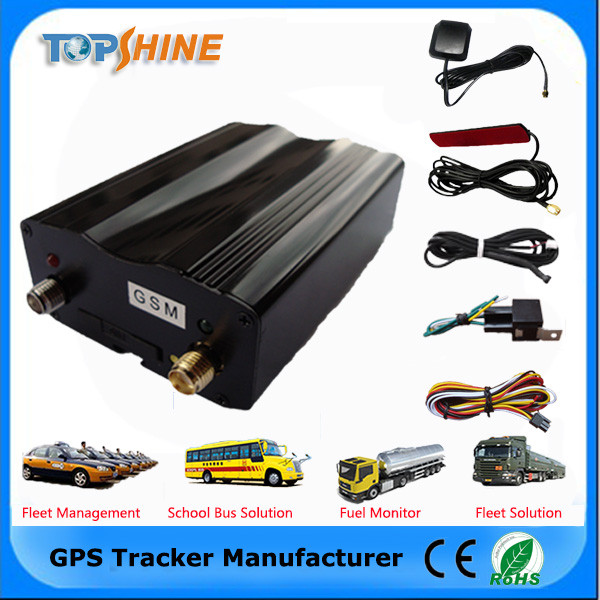

Complete Set:

Standard Package:

Main unit

GSM antenna

GPS antenna

Wire cables

Relay

Microphone

Optional Accessories:

Special USB cable
RFID kit

Items	Specifications
Dimension	1056526mm
Weight	190g
ChargingVoltage	DC 9V~24V/1.5A
Back-upBattery	650mAh/3.7V
Power consumption	65mAstandbycurrent
Operating Temperature	-30~+75 Celsius degree
Humidity	Upto 75%non-condensing
LED	2LED lights toshowGPS,GSMand otherstatus
Microphone	Yes
GSMFrequency	GSM850/900/1800/1900MHz
GPSChip	LatestGPSSIRF-StarIIIchipset
GPSSensitivity	-159dB
Positioning Accuracy	10meters,2D RMS
I/O	3DigitalInput 1 Output 1USB port 1 MIC port

Packing Measures:
Neutral	Dimension (mm)	Weight (KG)	Capacity
Box	165x155x50	0.45	1 set
Carton	470x340x310	15	30 sets
