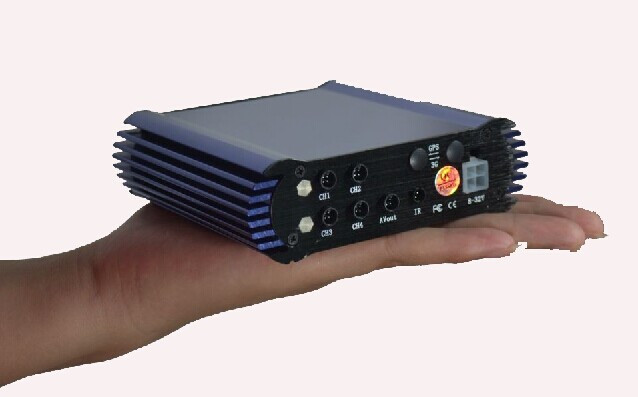

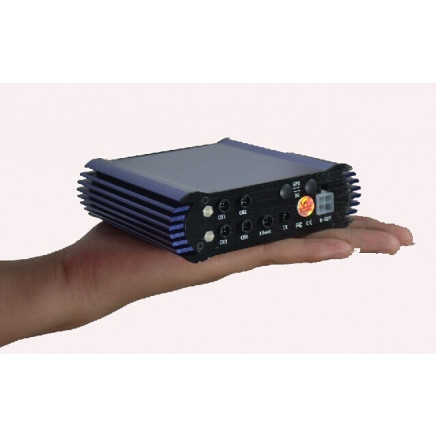

Mini SD Card Car DVR, 4channel H. 264, Wide Voltage

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $99.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 1/ Piece
10.0	US $ 99/ Piece

Trade Terms: FOB, FCA, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Sep 23, 2014 To Dec 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VC-MDRS3000

Interface:Airplug

Operating System:Linux

Compression Format:H.264

Certification:CE

Warranty Time:One Year

Stream Type:Hybrid Flow

Input Channels:4

Interface Display:Four Images

Brand:Vcomsky

Size:112(W) X30(H) X105D) Mm

Wide Voltage:8-36V

Export Markets:Global

Additional Info.

Trademark:Vcomsky

Packing:Standard Packing

Standard:CE, ROHS. FCC

Origin:Sz, China

HS Code:8525609000

Production Capacity:500000

Product Description

It make 360 degree full scene monitor of your lover car come true.
How it work:
One Mini Mobile DVR + 2 mini mirror camera + 2 mini camera, all solved. Mini Mobile DVR for record. Mirror camera just attached to the car rear view mirror, and without any damage to your car, invisible monitoring. 2 mini camera install inside the car, one monitor front, one behind.

Mini Mobile DVR Key Features:

L Industrial level design;
L Advanced audio/video compression technology;
L 4-ch video input, 2-ch audio input;
L ASF standard file format;
L Fast startup;
L Support max 64G SD card.
L Support 6 to 36V wide voltage input, overload protection, short circuit protection, reverse polarity protection
L Supply playback analysis software

Application:
Bus, School bus, Logistics vehicle, Taxi, Police car, Special purpose vehicle, Train/metro, Ship/boat

Specifications

Item		Description
Operation system		Linux
GUI		Setup system parameters with remote controller
Security management		Support user password, supervisor password management
Video	Video input/output	4-channel video input, 1-channel video output; 1.0Vp-p, 75?
	Dual stream	Support
	OSD	Time & date, vehicle ID, GPS etc
	Compression	H.264. Hisilicon high performance processor is applied.
	Preview function	Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function
	Video frame rate	PAL: 100 frame/sec, up to 25 frame/sec for single channel NTSC: 120 frame/sec, up to 30 frame/sec for single channel
	Video resolution	CIF, support up to 1 channels D1 + 3 channels CIF,default CIF
	Video quality	Level 1 to 5 video quality adaptive, level 1 best, level 5 lowest
	Video Bit Rate	CIF: 256Kbps ~ 1.5 Mbps, 5 levels of bit rate optional D1: 800Kbps ~ 3Mbps, 5 levels of bit rate optional
Audio	Audio input/output	2-channel input; 1-channel output
Audio	Compression	G.726
Recording	Storage media	SupportSDcard with 64G maximum capacity
	File format/system	ASF/ FAT32
	Recording mode	Startup recording by default, support auto,timed, alarm & manual recording
	Recording search	Search recording video files by time, type, storage device, etc.
	Recording playback	Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time
	Recording playback	Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time
Alarm	Alarm input	3-channel I/O alarm input
	Alarm recording	Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min
	Alarm output	1-channel alarm output
	Storage space	Support the setting of remain storage space alarm function
	Functional alarm	Video loss alarm
Wireless transmission (no support temporarily)		Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional;
GPS (no support temporarily)		Support external GPS module
Data remote transmission (no support temporarily)		Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download;
System upgrade		SupportSDcard upgrade
Power supply & consumption	Power supply management	ACC startup/shutdown; SD card lock startup/shutdown; Delay shutdown; Timing startup/shutdown
	Input voltage	DC:+6V ~ +36V
	Output voltage	+12V@4*0.5A;+5V@0.5A
	Power consumption	Less than 3W in normal working state; less than 0.5W in standby mode
Working environment	Temperature	Normal: 0 ~ +60 SD card pre-heating: -25 ~ +70
Working environment	Humidity	10% to 95%
Dimension		112(W) x30(H) x105D) mm.
Weight		Net weight: g, gross weight: g
